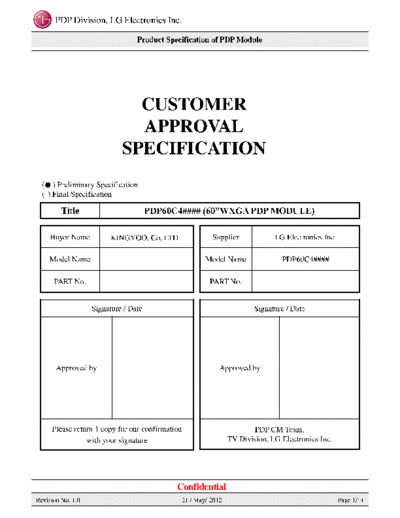

Image preview - the first page of the document
![Panel_LG_Display_PDP60C4_0_[DS]](/pics/5eafe884eb01a.gif)
>> Download Panel_LG_Display_PDP60C4_0_[DS] documenatation <<
Text preview - extract from the document
PDP Division, LG Electronics Inc.
Product Specification of PDP Module
CUSTOMER
APPROVAL
SPECIFICATION
( ) Preliminary Specification
( ) Final Specification
Title PDP60C4#### (60"WXGA PDP MODULE)
Buyer Name KINGYOO. Co. LTD Supplier LG Electronics Inc.
Model Name Model Name PDP60C4####
PART No. PART No.
Signature / Date Signature / Date
Approved by Approved by
Please return 1 copy for our confirmation PDP CM Team,
with your signature TV Division, LG Electronics Inc.
Confidential
Revision No. 1.0 21 / May/ 2012 Page 1/44
PDP Division, LG Electronics Inc.
Product Specification of PDP Module
Record of Revisions
Effective
Revison No. Comments
Date
Ver. 1.0 2012. 05. 21 - Establishment
Confidential
Revision No. 1.0 21 / May/ 2012 Page 2/44
PDP Division, LG Electronics Inc.
Product Specification of PDP Module
CONTENTS
0. WARNINGS AND CAUTIONS 4
Warning 4
Caution 5
1. GENERAL DESCRIPTION 8
Description 8
Features 8
Applications 8
Electrical Interface of Plasma Display 9
General Specifications 9
Block Diagram 10
Conditions of Acceptability 11
2. ELECTRICAL SPECIFICATIONS 12
Absolute Power Specifications 12
Input Power Specifications 13
Power Supply Sequence 14
LVDS Signal and LVDS Receiver 15
Input Signal Timing Diagram 18
Input Signal Timing Specification 19
I2C Timing Specification 21
ASIC I2C Signal & Register Description 23
FPGAC I2C Signal & Register Description 27
3. ELECTRO OPTICAL SPECIFICATIONS 31
Electro Optical characteristic Specifications 31
Cell Defect Specifications 33
Filter Defect Specifications 34
4. MECHANICAL & ENVIRONMENTAL SPECIFICATIONS 35
Mechanical Characteristic Specifications 35
Vibration and Drop Specifications 35
Scratch and Dent Specifications 35
Recommended Environmental Conditions 35
5. IMAGE STICKING CHARACTERISTICS 36
Image Sticking 36
Secular change in brightness 36
Warranty 36
Cause of deterioration in brightness 36
Practical value for Image sticking 36
Proposed measures taken to relieve image sticking 37
6. STAIN OF EXHAUST HOLE 37
7. OUTLINE DRAWING 38
Front View 38
Rear View 39
8. CONNECTORS and CONNECTIONS 40
9. LABEL 41
10. PACKING 43
Confidential
Revision No. 1.0 21 / May/ 2012 Page 3/44
PDP Division, LG Electronics Inc.
Product Specification of PDP Module
0. Warnings and Cautions
WARNING indicates hazards that may lead to death or injury if ignored.
CAUTION indicates hazards that may lead to injury or damage to property if ignored.
WARNING
1) This product uses a high voltage (550 V max.). Do not touch the circuitry of this product with your hands when
power is supplied to the product or immediately after turning off the power. Be sure to confirm that the voltage
is dropped to a sufficiently low level.
2) Do not supply a voltage higher than that specified to this product. This may damage the product and may cause a
fire.
3) Do not use this product in locations where the humidity is extremely high, where it may be splashed with water,
or where flammable materials surround it. Do not install or use the product in a location that does no satisfy the
specified environmental conditions. This may damage the product and may cause a fire.
4) If a foreign substance (such as water, metal, or liquid) gets inside the product, immediately turn off the power.
Continuing to use the products it may cause fire or electric shock.
5) If the product emits smoke, an abnormal smell, or makes an abnormal sound, immediately turn off the power. If
noting is displayed or if the display goes out during use, immediately turn off the power. Continuing to use the
product as it is may cause fire or electric shock.
6) Do not disconnect or connect the connector while power to the product is on. It takes some time for the voltage
to drop to a sufficiently low level after the power has been turned off. Confirm that the voltage has dropped to a
safe level before disconnecting or connecting the connector. Otherwise, this may cause fire, electric shock, or
malfunction.
7) Do not pull out or insert the power cable from/to an outlet with wet hands. It may cause electric shock.
8) Do not damage or modify the power cable. It may cause fire or electric shock.
9) If the power cable is damaged, or if the connector is loose, do not use the product; otherwise, this can lead to fire
or electric shock.
10) If the power connector or the connector of the power cable becomes dirty or dusty, wipe it with a dry cloth.
Otherwise, this can lead to fire.
11) This product is designed only for a public display, not for consumer display.
12) Install a protection layer for the viewer safety and the fragile glass product, if it is possible that viewers touch
this product directly.
Confidential
Revision No. 1.0 21 / May/ 2012 Page 4/44
PDP Division, LG Electronics Inc.
Product Specification of PDP Module
CAUTION
General
1) Do not place this product in a location that is subject to heavy vibration, or on an unstable surface such as an
inclined surface. The product may fall off or fall over, causing injuries.
2) When moving the product, be sure to turn off the power and disconnect all the cables. While moving the
product, watch your step. The product may be dropped or fall, leading to injuries of electric shock.
3) Before disconnecting cable from the product, be sure to turn off the power. Be sure to hold the connector when
disconnecting cables. Pulling a cable with excessive force may cause the core of the cable to be exposed or
break the cable, and this can lead to fire or electric shock.
4) This product should be moved by two or more persons. If one person attempts to carry this product alone, he/she
may be injured.
5) This product contains glass. The glass may break, causing injuries, if shock, vibration, heat, or distortion is
applied to the product.
6) The temperature of the glass surface of the display may rise to 80C or more depending on the conditions of use.
If you touch the glass inadvertently, you may be burned.
7) Do not poke or strike the glass surface of the display with a hard object. The glass may break or be scratched. If
the glass breaks, you may be injured.
8) If you glass surface of the display breaks or is scratched, do not touch the broken pieces or the scratches with
bare hands. You may be injured.
9) Do not place an object on the glass surface of the display. The glass may break or be scratched.
Design
1) This product may be damaged if it is subject to excessive stresses (such as excessive voltage, current, or
temperature). The absolute maximum ratings specify the limits of these stresses, and system design must ensure
that none of the absolute maximum ratings are exceeded.
2) The recommended operating conditions are conditions in which the normal operation of this product is
guaranteed. All the rated values of the electrical specifications are guaranteed within these conditions. Always
use the product within the range of the recommended operating conditions. Otherwise, the reliability of the
product may be degraded. Use of the product with a combination of parameters, conditions, or logic not
specified in the specifications of this product is not guaranteed. If intending to use the product in such a way, be
sure to consult LGE in advance.
3) This product emits near infrared rays (800 to 1000nm) that may cause the remote controllers of other electric
products to malfunction. To avoid this, use an infrared absorption filter and thoroughly evaluate the system and
environment.
Confidential
Revision No. 1.0 21 / May/ 2012 Page 5/44
PDP Division, LG Electronics Inc.
Product Specification of PDP Module
Design (continued)
4) This product uses high-voltage switching and a high ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
