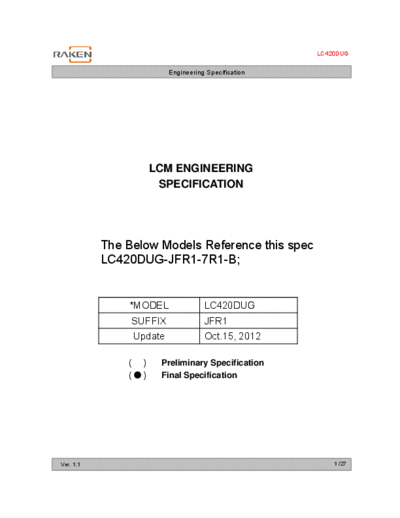

Image preview - the first page of the document
![Panel_LG_Electronics_LC420DUG-JFR1_0_[DS]](/pics/5eafe89c1ea91.gif)
>> Download Panel_LG_Electronics_LC420DUG-JFR1_0_[DS] documenatation <<
Text preview - extract from the document
LC420DUG
Engineering Specification
LCM ENGINEERING
C G G
SPECIFICATION
The Below Models Reference this spec
LC420DUG-JFR1-7R1-B;
*MODEL LC420DUG
SUFFIX JFR1
Update Oct.15, 2012
( ) Preliminary Specification
() Final Specification
Ver. 1.1 1 /27
LC420DUG
Engineering Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 9
3-3 SIGNAL TIMING SPECIFICATIONS 12
3-4 Panel Pixel Structure 13
3-5 POWER SEQUENCE 14
4 OPTICAL SPECIFICATIONS 15
5 MECHANICAL CHARACTERISTICS 21
6 RELIABILITY 22
7 INTERNATIONAL STANDARDS 23
7-1 SAFETY 23
7-2 ENVIRONMENT 23
8 PRECAUTIONS 24
8-1 MOUNTING PRECAUTIONS 24
8-2 OPERATING PRECAUTIONS 24
8-3 ELECTROSTATIC DISCHARGE CONTROL 25
8-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 25
8-5 STORAGE 25
Ver. 1.1 2 /27
LC420DUG
Engineering Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
1.0 Sep. 27, 2012 - Final Specification (First Draft)
- Update: 3-1. Electrical Characteristics
1.1 Oct. 15, 2012 6
Table 2. DC ELECTRICAL CHARACTERISTICS
Ver. 1.1 3 /27
LC420DUG
Engineering Specification
1. General Description
C G C
The LC420DUG is a Color Active Matrix Liquid C Crystal Display with an integral Light Emitting Diode (
(LED)
)
backlight system . The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 41.92inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.67M(ture) colors.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Power (VCC, VDD, HVDD, VGH, VGL) Source Driver Circuit
Gate Control Signal
CN1 S1 S1920
(50pin)
Gamma Reference Voltage G1
EPI (RGB & Control signal) for Left drive
Power (VCC, VDD, HVDD, VGH, VGL)
TFT - LCD P
Panel
l
