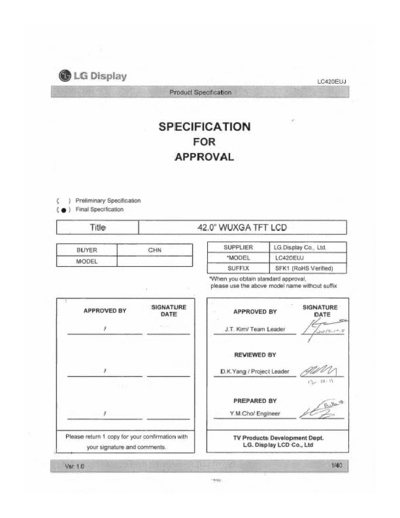

Image preview - the first page of the document
![Panel_LG_Electronics_LC420EUJ-SFK1_0_[DS]](/pics/5eafe8b4ba6c1.gif)
>> Download Panel_LG_Electronics_LC420EUJ-SFK1_0_[DS] documenatation <<
Text preview - extract from the document
LC420EUJ
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 42.0" WUXGA TFT LCD
BUYER CHN SUPPLIER LG.Display Co., Ltd.
*MODEL LC420EUJ
MODEL
SUFFIX SFK1 (RoHS Verified)
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J.T. Kim/ Team Leader
REVIEWED BY
/ D.K.Yang / Project Leader
PREPARED BY
/ Y.M.Cho/ Engineer
Please return 1 copy for your confirmation with TV Products Development Dept.
your signature and comments. LG. Display LCD Co., Ltd
Ver. 1.0 1/40
LC420EUJ
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 7
3-3 SIGNAL TIMING SPECIFICATIONS 9
3-4 SIGNAL SPECIFICATION 12
3-5 INTRA INTERFACE SIGNAL SPECIFICATION 13
3-6 COLOR DATA REFERENCE 14
3-7 POWER SEQUENCE 16
4 OPTICAL SPECIFICATIONS 15
5 MECHANICAL CHARACTERISTICS 19
6 RELIABILITY 25
7 INTERNATIONAL STANDARDS 25
7-1 SAFETY 28
7-2 EMC 28
7-3 ENVIRONMENT 28
8 PACKING 29
8-1 DESIGNATION OF LOT MARK 29
8-2 PACKING FORM 29
9 PRECAUTIONS 30
9-1 MOUNTING PRECAUTIONS 30
9-2 OPERATING PRECAUTIONS 30
9-3 ELECTROSTATIC DISCHARGE CONTROL 31
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 31
9-5 STORAGE 31
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 31
9-7 OPERATING CONDITION GUIDE 31
Ver. 1.0 2/40
LC420EUJ
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.1 Jul, 12, 2012 - Preliminary Specification(First Draft)
1.0 Oct,10,2012 3 Updated General features
5 Updated Table 2
7 Added SSR spec
15 Updated Table 7
25 Updated Table 10
Final Specification
Ver. 1.0 3/40
LC420EUJ
Product Specification
1. General Description
The LC420EUJ is a Color Active Matrix Liquid Crystal Display with an integral the Source PCB and Gate
implanted on Panel (GIP). The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 41.92 inch diagonally measured
active display area with W UXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Milion colors.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
EPI(RGB)
LVDS EEPROM
Source Driver Circuit
2Port
SCL SDA S1 S1920
LVDS
Select LVDS 1,2 G1
Timing Controller
Option
OPC
Enable
CN1
signal
LVDS Rx + OPC + DGA
Integrated Control
TFT - LCD Panel
