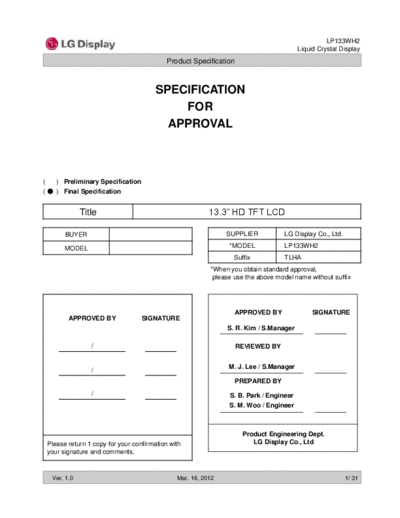

Image preview - the first page of the document
![Panel_LG_Electronics_LP133WH2-TLHA_0_[DS]](/pics/5eafe8f7b1e11.gif)
>> Download Panel_LG_Electronics_LP133WH2-TLHA_0_[DS] documenatation <<
Text preview - extract from the document
LP133WH2
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 13.3" HD TFT LCD
BUYER SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LP133WH2
Suffix TLHA
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY SIGNATURE
APPROVED BY SIGNATURE
S. R. Kim / S.Manager
/ REVIEWED BY
M. J. Lee / S.Manager
/
PREPARED BY
/ S. B. Park / Engineer
S. M. Woo / Engineer
Product Engineering Dept.
Please return 1 copy for your confirmation with LG Display Co., Ltd
your signature and comments.
Ver. 1.0 Mar. 16, 2012 1/ 31
LP133WH2
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTREISTICS 6-7
3-2 INTERFACE CONNECTIONS 8
3-3 LVDS SIGNAL TIMING SPECIFICATION 9-10
3-4 SIGNAL TIMING SPECIFICATIONS 11
3-5 SIGNAL TIMING WAVEFORMS 11
3-6 COLOR INPUT DATA REFERNECE 12
3-7 POWER SEQUENCE 13
4 OPTICAL SFECIFICATIONS 14-16
5 MECHANICAL CHARACTERISTICS 17-20
6 RELIABLITY 21
7 INTERNATIONAL STANDARDS
7-1 SAFETY 22
7-2 EMC 22
7-3 Environment 22
8 PACKING
8-1 DESIGNATION OF LOT MARK 23
8-2 PACKING FORM 23
9 PRECAUTIONS 24-25
A APPENDIX. Enhanced Extended Display Identification Data 26-28
Ver. 1.0 Mar. 16, 2012 2/ 31
LP133WH2
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
EDID
Revision No Revision Date Page Description
ver
0.0 Aug. 04, 2011 - First Draft (Preliminary Specification) 0.0
0.1 Feb. 27, 2012 6 Update Electrical Characteristics 0.1
11 Update Signal Timing Specifications -
14 - 15 Update Optical Specification -
17 - 20 Update Mechanical Characteristics -
27 Update Packing Form -
0.2 Mar. 06, 2012 26 Update Safety 0.1
1.0 Mar. 16, 2012 - Final Draft 1.0
19, 20 Update Mechanical Rear Drawing & Label Information -
Ver. 1.0 Mar. 16, 2012 3/ 31
LP133WH2
Liquid Crystal Display
Product Specification
1. General Description
The LP133WH2 is a Color Active Matrix Liquid Crystal Display with an integral LED backlight system. The
matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in
the normally white mode. This TFT-LCD has 13.3 inches diagonally measured active display area with HD
resolution (1366 horizontal by 768 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-
pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144
colors. The LP133WH2 has been designed to apply the interface method that enables low power, high
speed, low EMI. The LP133WH2 is intended to support applications where thin thickness, low power are
critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-
pixels, the LP133WH2 characteristics provide an excellent flat display for office automation products such
as Notebook PC.
EEPROM Block
for EDID
EEPROM Block 1 1366
for Tcon Operating
User connector
TFT-LCD Panel
LVDS
Timing Control (HD, GIP, TN)
1port (Tcon) Block
768
DVCC TCLKs
40
DVCC, AVDD
Pin
VCC Power Source Driver
VGH, VGL, GMA
(Bottom)
Block GIP CLKs, DSC
VOUT_LED
VLED LED Driver LED Backlight Ass'y
LED_EN FB1~4
PWM Block
Control & Data Power EDID signal & Power
General Features
Active Screen Size 13.3 inches diagonal
Outline Dimension 306.3(Typ. H) ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
