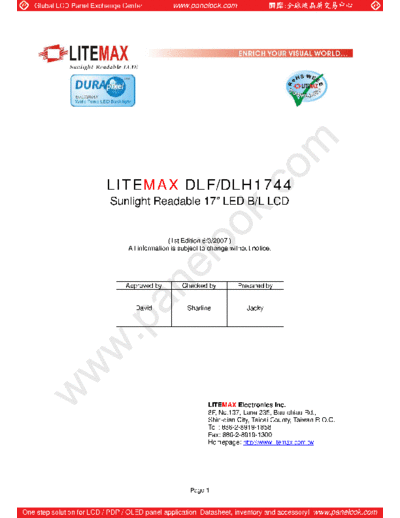

Image preview - the first page of the document
![Panel_LiteMax_DLH1744_0_[DS]](/pics/5eafe9946e7fa.gif)
>> Download Panel_LiteMax_DLH1744_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LITEMAX DLF/DLH1744
Sunlight Readable 17" LED B/L LCD
(1st Edition 6/3/2007 )
All information is subject to change without notice.
Approved by Checked by Prepared by
David Sharline Jacky
LITEMAX Electronics Inc.
8F, No.137, Lane 235, Bau-chiau Rd.,
Shin-dian City, Taipei County, Taiwan R.O.C.
Tel : 886-2-8919-1858
Fax: 886-2-8919-1300
Homepage: http://www.litemax.com.tw
Page 1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Record Revision
Version and Date Page Old Description New Description Remark
Page 2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Contents
Record Revision 2
Contents 3
Handling Precautions 4
General Description 5
Display Characteristics 5
Optical Characteristics 6
Optical Test 6
Reliability 6
Test Mode 6
Functional Block Diagram 8
Absolute Maximum Ratings 9
TFT LCD Module 9
Backlight Unit 9
Absolute Ratings of Environment 9
Electrical characteristics 10
TFT LCD Module 10
Signal Characteristic 12
Pixel Format Image 12
The Input Data Format 12
Signal Description 13
Timing Characteristics 15
Connector & Pin Assignment 18
TFT LCD Module 18
Backlight Unit 19
Reliability Test 20
LED Backlight Dimming & Power Consumption and Temperature Relationship Test
Report 21
Mechanical Characteristics 23
Page 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Handling Precautions
1) Since front polarizer is easily damaged, be extremely careful when handling panel.
2) Be sure to turn off power supply when inserting or disconnecting from input
connectors.
3) Wipe off water immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on a
hard surface.
6) Since CMOS LSI is used in this module, be careful of static electricity by grounding
those handling the display.
7) Do not open nor modify the module assembly.
8) Do not press or touch the panel surface with hands or tools.
9) Do not press or move the reflector sheet at the back of the module in any direction.
10) **At the insertion or removal of the signal Interface Connector, be sure not to rotate
nor tilt the interface connector of the TFT module.
11) After installation of the TFT module into an enclosure (Desktop monitor Bezel, for
example), do not twist nor bend the TFT Module even momentarily. Design the
enclosure so that no bending/twisting forces are applied to the TFT module. Otherwise
the TFT module may be damaged.
Page 4
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
General Description
This specification applies to the 17 inch Color TFT-LCD Module M170EG01 VD.
The display supports the WSXGA+ (1280(H) x 1024(V)) screen format and 16.7M colors
(RGB 6-bits+Hi-RFC data).All input signals are 2 Channel LVDS interface compatible.
This module does not contain an LED driving board for backlight.
Display Characteristics
The following items are characteristics summary on the table under 25 condition:
Items Unit Specifications
Screen Diagonal [mm] 432 (17.0")
Active Area [mm] 337.920(H) ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
