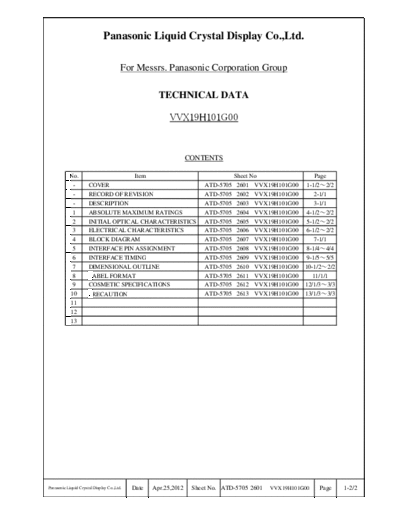

Image preview - the first page of the document
Panel_Panasonic_VVX19H101G00_0_[DS]


>> Download Panel_Panasonic_VVX19H101G00_0_[DS] documenatation <<

Text preview - extract from the document
                              Panasonic Liquid Crystal Display Co.,Ltd.

                                        For Messrs. Panasonic Corporation Group

                                                      TECHNICAL DATA

                                                          VVX19H101G00



                                                                  CONTENTS

           No.                               Item                                 Sheet No                 Page
            -         COVER                                            ATD-5705    2601 VVX19H101G00    1-1/22/2
            -         RECORD OF REVISION                               ATD-5705    2602 VVX19H101G00       2-1/1
            -         DESCRIPTION                                      ATD-5705    2603 VVX19H101G00       3-1/1
            1         ABSOLUTE MAXIMUM RATINGS                         ATD-5705    2604 VVX19H101G00    4-1/22/2
            2         INITIAL OPTICAL CHARACTERISTICS                  ATD-5705    2605 VVX19H101G00    5-1/22/2
            3         ELECTRICAL CHARACTERISTICS                       ATD-5705    2606 VVX19H101G00    6-1/22/2
            4         BLOCK DIAGRAM                                    ATD-5705    2607 VVX19H101G00       7-1/1
            5         INTERFACE PIN ASSIGNMENT                         ATD-5705    2608 VVX19H101G00    8-1/44/4
            6         INTERFACE TIMING                                 ATD-5705    2609 VVX19H101G00    9-1/55/5
            7         DIMENSIONAL OUTLINE                              ATD-5705    2610 VVX19H101G00   10-1/22/2
            8         LABEL FORMAT                                     ATD-5705    2611 VVX19H101G00      11/1/1
            9         COSMETIC SPECIFICATIONS                          ATD-5705    2612 VVX19H101G00   12/1/33/3
           10         PRECAUTION                                       ATD-5705    2613 VVX19H101G00   13/1/33/3
           11
           12
           13




Panasonic Liquid Crystal Display Co.,Ltd.   Date    Apr.25,2012    Sheet No. ATD-5705 2601   VVX19H101G00   Page   1-2/2
                                                      RECORD OF REVISION

                           The upper section : Previous revision
                            The lower section : New revision
        Date                                                                                 Summary
                                    Sheet No.              Page




Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012     Sheet No. ATD-5705 2602   VVX19H101G00   Page   2-1/1
                                                            DESCRIPTION

       The following specifications are applied to the following IPS-Pro-TFT LCD module.
       Note : The timing controller function is not built in this module.




Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2603   VVX19H101G00   Page   3-1/1
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2604   VVX19H101G00   Page   4-1/2
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2604   VVX19H101G00   Page   4-2/2
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2605   VVX19H101G00   Page   5-1/2
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2605   VVX19H101G00   Page   5-2/2
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2606   VVX19H101G00   Page   6-1/2
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2606   VVX19H101G00   Page   6-2/2
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2607   VVX19H101G00   Page   7-1/1
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2608   VVX19H101G00   Page   8-1/4
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2608   VVX19H101G00   Page   8-2/4
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2608   VVX19H101G00   Page   8-3/4
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2608   VVX19H101G00   Page   8-4/4
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2609   VVX19H101G00   Page   9-1/5
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2609   VVX19H101G00   Page   9-2/5
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2609   VVX19H101G00   Page   9-3/5
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2609   VVX19H101G00   Page   9-4/5
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2609   VVX19H101G00   Page   9-5/5
7.DIMENSIONAL OUTLINE
  (1) FRONT VIEW




                        Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2610   VVX19H101G00   Page   10-1/2
(2) BACK VIEW




                Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2610   VVX19H101G00   Page   10-2/2
8. LABEL FORMAT
   8.1 Label
          The barcode nameplate is pasted on each module as illustration, and its definitions are as
          following explanation.




             REV. is the column for manufacturring convenience. A-Z except I and O may be
             written on this column.




                             12    2012                                                              CELL-
                                                                                                 P   REVISION




Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2611   VVX19H101G00         Page   11-1/1
9. INSPECTION SPECIFICATION




Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2612   VVX19H101G00   Page   12-1/3
             3. INSPECTION CRITERIA




Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2612   VVX19H101G00   Page   12-2/3
Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2612   VVX19H101G00   Page   12-3/3
10. PRECAUTION
   Please pay attention to the followings when a TFT module with a backlight unit is used, handled and mounted.

   10.1 Precaution to handling and mounting
     (1) Applying strong force to a part of the module may cause partial deformation of frame or mold, and cause damage
         to the display.
     (2) The module should gently and firmly be held by both hands. Never hold by just one hand in order to avoid any
         internal damage. Never drop or hit the module.
     (3) The module should be installed with mounting holes of a module.
     (4) Uneven force such as twisted stress should not be applied to a module when a module is mounted on the cover
         case. The cover case must have sufficient strength so that external force can not be transmitted directly to a module.
     (5) It is recommended to leave a space between a module and a holding board of a module so that partial force is not
         applied to a module.

                                              B-             Effective display
        Cover                                              Edge        Polarize
                                                           cover

                                                                  TFT


                                              Fig.1 Cross sectional view of a               above


       (6) The edge of a cover case should be located inside more than 1mm from the edge of a module front frame.
       (7) A transparent protective plate should be added on the display area of a module in order to protect a polarizer and
           TFT cell.The transparent protective plate should have sufficient strength so that the plate can not touch a module
           by external force.
       (8) Materials included acetic acid and choline should not be used for a cover case as well as other parts and boards
           near a module. Acetic acid attacks a polarizer. Choline attacks electric circuits due to electro-chemical reaction.
       (9) The polarizer on a TFT cell should carefully be handled due to its softness, and should not be touched, pushed or
           rubbed with glass, tweezers or anything harder than HB pencil lead. The surface of a polarizer should not be
           touched and rubbed with bare hand, greasy clothes or dusty clothes.
       (10) The surface of a polarizer should be gently wiped with absorbent cotton, chamois or other soft materials slightly
           contained petroleum benzene when the surface becomes dirty. Normal-hexane or Isopropyl alcohol as cleaning
           chemicals is recommended in order to clean adhesives which fix front/rear polarizers on a TFT cell. Other cleaning
           chemicals such as acetone, toluen and alcohol should not be used to clean adhesives because they cause chemical
           damage to a polarizer.
       (11) Saliva or water drops should be immediately wiped off. Otherwise, the portion of a polarizer may be deformed
           and its color may be faded.
       (12) The module should not be opened or modified. It may cause not to operate properly.
       (13) Metallic bezel of a module should not be handled with bare hand or dirty gloves. Otherwise, color of a metallic
           frame may become dirty during its storage. It is recommended to use clean soft gloves and clean finger stalls
           when a module is handled at incoming inspection process and production (assembly) process.
       (14) Lamp(CCFL) cables should not be pulled and held.

   10.2 Precaution to operation
     (1) The ambient temperature near the operated module should be satisfied with the absolute maximum ratings. Unless
         it meets the specifications, sufficient cooling system should be adopted to system.
     (2) The spike noise causes the mis-operation of a module. The level of spike noise should be as follows:
                         -200mV  over- and under- shoot of VDD  +200mV
         VDD including over- and under- shoot should be satisfied with the absolute maximum ratings.


Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012    Sheet No. ATD-5705 2613   VVX19H101G00        Page     13-1/3
       (3) Optical response time, luminance and chromaticity depend on the temperature of a TFT module. Response time
           and saturation time of LED luminance become longer at lower temperature operation.
       (4) Sudden temperature change may cause dew on and/or in the a module. Dew makes damage to a polarizer and/or
           electrical contacting portion. Dew causes fading of displayed quality.
       (5) Fixed patterns displayed on a module for a long time may cause after-image. It will be recovered soon.
       (6) A module has high frequency circuits. Sufficient suppression to electromagnetic interference should be done by
           system manufacturers. Grounding and shielding methods may be effective to minimize the interference.
       (7) Noise may be heard when a backlight is operated. If necessary, sufficient suppression should be done by system
           manufacturers.
       (8) The module should not be connected or removed while a main system works.
       (9) Inserting or pulling I/F connectors causes any trouble when power supply and signal data are on-state.
           I/F connectors should be inserted and pulled after power supply and signal data are turned off.

   10.3 Electrostatic discharge control
     (1) Since a module consists of a TFT cell and electronic circuits with CMOS-ICs, which are very weak to electrostatic
         discharge, persons who are handling a module should be grounded through adequate methods such as a list band.
         I/F connector pins should not be touched directly with bare hands.
     (2) Protection film for a polarizer on a module should be slowly peeled off so that the electrostatic charge can be
         minimized.

   10.4 Precaution to strong light exposure
     (1) A module should not be exposed under strong light. Otherwise, characteristics of a polarizer and color filter in
         a module may be degraded.

   10.5 Precaution to storage
     When modules for replacement are stored for a long time, following precautions should be taken care of:
     (1) Modules should be stored in a dark place. It is prohibited to apply sunlight or fluorescent light during storage.
         Modules should be stored at 0 to 35 at normal humidity (60%RH or less).
     (2) The surface of polarizers should not come in contact with any other object. It is recommended that modules
         should be stored in the shipping box of Panasonic Liquid Crystal Display Co.,Ltd.

   10.6 Precaution to handling protection film
     (1) The protection film for polarizers should be pealed off slowly and carefully by persons who are electrically
         grounded with adequate methods such as a list band. Besides, ionized air should be blown over during peeling
         action. Dusts on a polarizer should be blown off by an ionized nitrogen gun and so on.
     (2) The protection film should be peeling off without rubbing it to the polarizer. Because, if the film is rubbed
         together with the polarizer, since the film is attached to the polarizer with a small amount of adhesive, the
         adhesive may remain on a polarizer.
     (3) The module with protection film should be stored on the conditions explained in 10.5 (1). However, in case
         that the storage time is too long, adhesive may remain on a polarizer even after a protection film is peeled off.
         Besides, in case that a module is stored at higher temperature and/or higher humidity, adhesive may remain on
         a polarizer. The remained adhesive may cause non-uniformity of display image.
     (4) The adhesive can be removed easily with Normal-Hexane or Isopropyl alcohol. The remained adhesive or its
         vestige on the polarizer should be wiped off with absorbent cotton or other soft materials such as chamois
         slightly contained Normal-Hexane or Isopropyl alcohol.

   10.7 Safety
     (1) Since a TFT cell and lamps are made of glass, handling to the broken module should be taken care sufficiently
         in order not to be injured. Hands touched liquid crystal from a broken cell should be washed sufficiently.


Panasonic Liquid Crystal Display Co.,Ltd.   Date   Apr.25,2012   Sheet No. ATD-5705 2613    VVX19H101G00         Page        13-2/3
       (2) The module should not be taken apart during operation so that backlight drives by high voltage.

   10.8 Environmental protection
     Flexible printed circuits and printed circuits board used in a module contain small amount of lead. Please follow
     local ordinance or regulations for its disposal.

   10.9 Use restrictions and limitations
     (1) This product is not authorized for use in life support devices or systems, military applications or other applications
         which pose a significant risk of personal injury.
     (2) In no event shall Panasonic Liquid Crystal Display Co.,Ltd. be liable for any incidental, indirect or consequential
        damages in connection with the installation or use of this product, even if informed of the possibility thereof in
         advance. These limitations apply to all causes of action in the aggregate, including without limitation breach
         of contact, breach of warranty, negligence, strict liability, misrepresentation and other torts.

   10.10 Precaution to setting inverter
     (1) Please use inverter output waveform that satisfies following formulae.
              0.9*2*Irms|Ip|1.1*2*Irms
              0.9*2*Irms|I-p|1.1*2*Irms
                      Ip    Peak value of lamp current at positive side
                      I-p Peak value of lamp current at negative side
       Also, please use sine wave with symmetric positive and negative wave that both area and peak of IL and VL
       waveforms are within 10% of asymmetry rate, and that do not develop spike wave. Otherwise there is a possibility
        to develop lighting defect.
     (2) After this product is stored for a long time, it might take longer to discharge lamp. It is recommended that
        auxiliary illuminant (LED, etc.) is set.
     (3) Since multiple lamps are closely-mounted to the backlight, please use inverter that output waveform is
        synchronized. If different phase inverter is used, it might cause luminance depression or short life span
        by phase difference.

   10.11 Others
     Electrical components which may not affect electrical performance are subjective to change without notice because
     of their availability.
