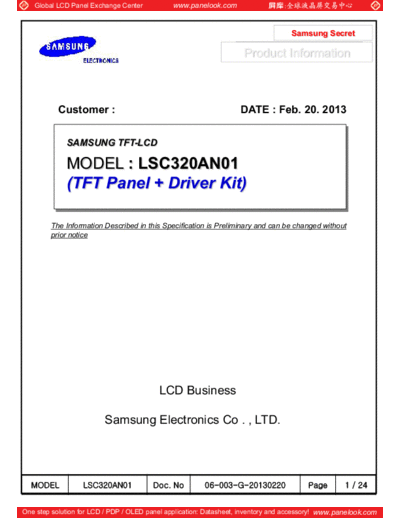

Image preview - the first page of the document
![Panel_SAMSUNG_LSC320AN01_1_[DS]](/pics/5eb004e236197.gif)
>> Download Panel_SAMSUNG_LSC320AN01_1_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Product Information
Customer : DATE : Feb. 20. 2013
SAMSUNG TFT-LCD
MODEL : LSC320AN01
(TFT Panel + Driver Kit)
The Information Described in this Specification is Preliminary and can be changed without
prior notice
LCD Business
Samsung Electronics Co . , LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Contents
Revision History --------------------------------------------------------------------------------------------- (3)
General Description ---------------------------------------------------------------------------------------- (4)
General Information ---------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings --------------------------------------------------------------------------- (5)
2. Optical Characteristics ---------------------------------------------------------------------------------- (6)
3. Electrical Characteristics -------------------------------------------------------------------------------- (9)
3.1 TFT LCD Module
4. Input Terminal Pin Assignment ---------------------------------------------------------------------- (10)
4.1 Input Signal & Power
4.2 LVDS Interface
4.3 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ----------------------------------------------------------------------------------------- (13)
5.1 Timing Parameters (DE only mode)
5.2 LVDS Input data Characteristic
5.3 Timing Diagrams of interface Signal (DE only mode)
5.4 Power ON/OFF Sequence
6. Outline Dimension --------------------------------------------------------------------------------------- (17)
7. Packing ---------------------------------------------------------------------------------------------------- (18)
8. Marking & Others ---------------------------------------------------------------------------------------- (19)
9. General Precaution ------------------------------------------------------------------------------------ (21)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Revision History
Rev.
Date Page Summary
No
20. Feb.
000 all First issued
2013
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
General Description Samsung Secret
Description
LSC320AN01 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon
TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel,
a driver circuit , and an assembly KIT of source PBA. The model has a resolution of a 1366 x 768
and can display up to 16.7 Million colors with wide viewing angle of 89 or higher degree in all
directions. This panel is designed applications by providing a excellent performance function of
the Flat Panel Display such as Home-alone Multimedia TFT-LCD TV and High Definition TV.
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
SVA(Super Vertical Align) mode
Wide viewing angle ( 178 )
High speed response
FHD resolution (16:9)
Low Power consumption
DE (Data Enable) mode
2ch LVDS (Low Voltage Differential Signaling) interface
General Information
Items Specification Unit Note
(TFT)713 x 410.5
Glass Size mm
(CF)713 x410.5
Polarizer Size 707.9 x404.9 mm
Weight 1200 (Typ) g
Pixel Pitch 0.51075 (H) 0.17025 (V) mm
Active Display Area 697.6845 (H) X 392.256 (V) mm
Surface Treatment Anti-Glare
Display Colors 8bit colors
Number of Pixels 1366 x 768 pixel
Pixel Arrangement RGB Horizontal stripe
Display Mode Normally Black
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage on the device.
Item Symbol Min. Max. Unit Note
Power Supply Voltage VDD 10.8 13.2 V (1)
Storage temperature TSTG 5 40 (2), (4)
Operating temperature TOPR 0 50 (2), (5)
Storage humidity HSTG 35 75 %RH (2), (4)
Operating humidity HSTG 20 90 %RG (2), (5)
Endurance on static electricity 150 V (3)
Note (1) Ta= 25 2 C
(2) Temperature and the range of relative humidity are shown in the figure below.
a. 90 % RH Max. (Ta 39 C)
b. Relative Humidity is 90% or less. (Ta 39 C)
c. No condensation
(3) Keep the static electricity under 150V in process the polarizer is attached on glass
(4) The storage condition with glass
(5) The operating condition with assembly
Fig. Temperature and Relative humidity range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
2. Optical Characteristics Samsung Secret
The optical characteristics should be measured in a dark room or the space surrounded by
similar setting.
Measuring equipment : TOPCON RD-80S, TOPCON SR-3, ELDIM EZ-Contrast
(Ta = 25 2 C, VDD=12V, fv= 60Hz, fDCLK = 75MHz, Light source : D65 standard)
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio (1)
C/R 3000 4000 -
(Center of screen) SR-3
Response (2)
G-to-G Tg - 20 30 msec
Time RD-80S
Luminance of White (3)
YL 205 230 - cd/m2
(Center of screen) SR-3
Rx 0.658
Red Normal
Ry qL,R =0 0.330
qU,D =0
Gx 0.273
Green Viewing
Color Gy Angle 0.580
(4)
Chromaticity -0.03 +0.03
SR-3
(CIE 1931) Bx 0.131
Blue
By 0.131
Wx 0.279
White
Wy 0.362
Color Gamut - - 65 - %
(4)
SR-3
Color Temperature - - 8000 - K
- The characteristics of light source (D65 , The general light source)
