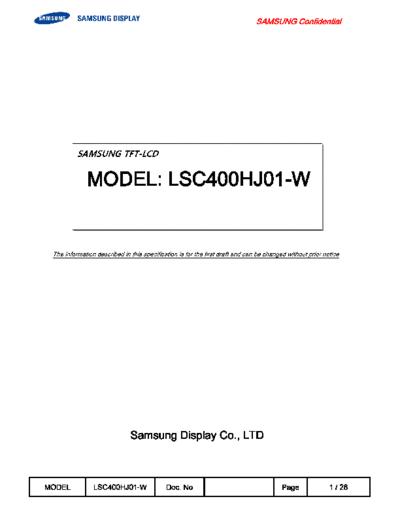

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LSC400HJ01-W_0_[DS] documenatation <<

Text preview - extract from the document

                                                                               SAMSUNG Confidential




          SAMSUNG TFT-LCD


              MODEL: LSC400HJ01-W


 The Information described in this specification is for the first draft and can be changed without prior notice




                              Samsung Display Co., LTD



MODEL           LSC400HJ01-W                Doc. No                                      Page              1 / 28
                                                                         SAMSUNG Confidential
General Description

Description
  This model uses a liquid crystal display (LCD) of amorphous silicon TFT as switching components. This
  model is composed of a TFT LCD panel, a driver circuit, and an ass'y KIT of source PBA. This 40.0"
  model has a resolution of a 1920 x 1080 and can display up to 16.7 million colors(Dithered 1.07B) with
  the wide viewing angle of 89
