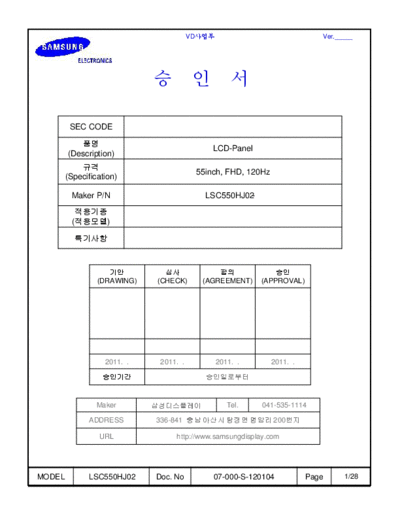

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LSC550HJ02_0_[DS] documenatation <<

Text preview - extract from the document

                                        VD                                Ver.






         SEC CODE


                                            LCD-Panel
        (Description)

                                        55inch, FHD, 120Hz
        (Specification)

         Maker P/N                        LSC550HJ02-


         ()






                 (DRAWING)   (CHECK)     (AGREEMENT)     (APPROVAL)




                   2011. .    2011. .        2011. .         2011. .




                 Maker                          Tel.      041-535-1114

              ADDRESS        336-841     200

                 URL              http://www.samsungdisplay.com




MODEL         LSC550HJ02     Doc. No        07-000-S-120104            Page      1/28
                                                             Approval Spec.



   Customer :Visual Display Division                           DATE : 4. Jan. 2012



                      MODEL:LSC550HJ02
    Any Modification of Specification is not allowed without SDC's Permission.




                                                       APPROVED BY                  DATE
        Customer's Approval                                                      4. Jan. 2011

          SIGNATURE                 DATE               PREPARED BY                  DATE
                                                                                 4. Jan. 2011




                      Samsung Display Co . , LTD.



MODEL       LSC550HJ02           Doc. No           07-000-S-120104               Page      2/28
                                                    Contents

Revision History -------------------------------------------------------------------------------------------- (4)

General Description --------------------------------------------------------------------------------------- (5)

General Information --------------------------------------------------------------------------------------- (5)

1. Absolute Maximum Ratings -------------------------------------------------------------------------- (6)

2. Optical Characteristics --------------------------------------------------------------------------------- (7)

3. Electrical Characteristics ------------------------------------------------------------------------------ (10)
   3.1 TFT LCD Module

4. Block Diagram ------------------------------------------------------------------------------------------- (11)

5. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
  5.1. Input Signal & Power
  5.2 LVDS Interface
  5.3 Input Signals, Basic Display Colors and Gray Scale of Each Color

6. Interface Timing ---------------------------------------------------------------------------------------- (16)
  6.1 Timing Parameters
  6.2 Timing Diagrams of interface Signal
  6.3 Power ON/OFF Sequence

7. Outline Dimension -------------------------------------------------------------------------------------- (19)

8. Reliability Test ------------------------------------------------------------------------------------------- (20)

9. Packing --------------------------------------------------------------------------------------------------(21)
   9.1 CARTON(Internal Package)
   9.2 Packing Specification
   9.3 Middle Sheet Specification
   9.4 Middle Sheet Outline Dimension

10. Marking & Others ------------------------------------------------------------------------------------- (23)

11. General Precaution ----------------------------------------------------------------------------------- (25)
  11.1 Handling
  11.2 Storage
  11.3 Operation
  11.4 Operation Condition Guide
  11.5 Others

MODEL            LSC550HJ02               Doc. No              07-000-S-120104                  Page           3/28
Revision History

    Date       Rev. No   Page   Summary


 9.Nov.2011      000      all   First issued


 22.Dec.2011     001      5     Display Colors 10bit  8bit


 22.Dec.2011     002      10    TFT LCD Module


 22.Dec.2011     003      16    Interface Parameter


 22.Dec.2011     004      16    Frame Frequency


 27.Dec.2011     005      7     Transmittance


 28.Dec.2011     006      7     Color Chromaticity (CIE 1931) Ry 0.340  0.330


 4.Jan.2012      007      27    Storage Condition




MODEL          LSC550HJ02       Doc. No             07-000-S-120104             Page   4/28
General Description
  Description
   LSC550HJ02 is a color active matrix liquid crystal display(LCD) that uses amorphous
  silicon TFT( Thin Film Transistor) as switching components. This model is composed of a
  TFT LCD panel, a driver circuit. The resolution of a 55" is 1920 x 1080 and this model can
  display up to 16.7 million colors with wide viewing angle of 89
