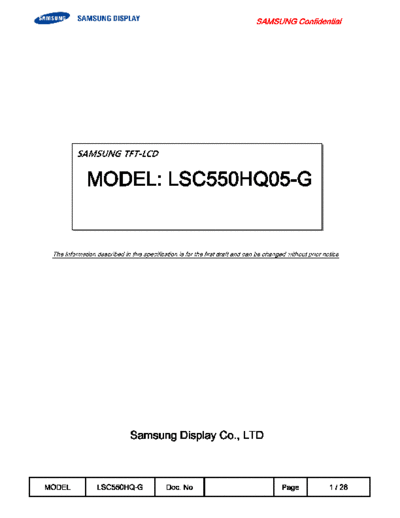

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LSC550HQ05-G_0_[DS] documenatation <<

Text preview - extract from the document

                                                                               SAMSUNG Confidential




          SAMSUNG TFT-LCD


              MODEL: LSC550HQ05-G


 The Information described in this specification is for the first draft and can be changed without prior notice




                              Samsung Display Co., LTD



MODEL             LSC550HQ-G                Doc. No                                      Page              1 / 28
                                                                        SAMSUNG Confidential
General Description

Description
  This model uses a liquid crystal display (LCD) of amorphous silicon TFT as switching components. This
  model is composed of a TFT LCD panel, a driver circuit, and an ass'y KIT of source PBA. This 32.0"
  model has a resolution of a 1366 x 768 and can display up to 16.7 million colors with the wide viewing
  angle of 89
