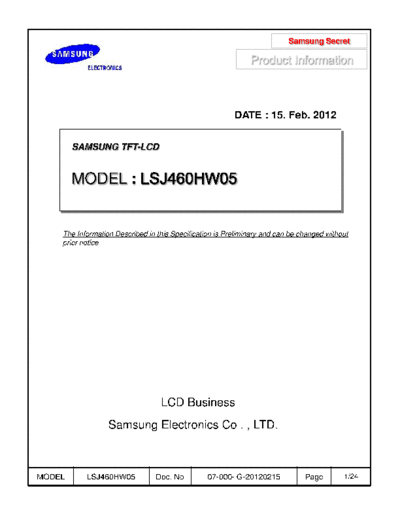

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LSJ460HW05_0_[DS] documenatation <<

Text preview - extract from the document

                                                                          Samsung Secret

                                                              Product Information



                                                         DATE : 15. Feb. 2012


        SAMSUNG TFT-LCD


        MODEL :


    The Information Described in this Specification is Preliminary and can be changed without
    prior notice




                                  LCD Business
                  Samsung Electronics Co . , LTD.



MODEL      LSJ460HW05            Doc. No         07-000- G-20120215            Page        1/24
                                                   Contents                              Samsung Secret

Revision History -------------------------------------------------------------------------------------------- (3)

General Description --------------------------------------------------------------------------------------- (4)

General Information --------------------------------------------------------------------------------------- (4)

1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)

2. Optical Characteristics --------------------------------------------------------------------------------- (6)

3. Electrical Characteristics ------------------------------------------------------------------------------ (9)
   3.1 TFT LCD Module

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (11)
  4.1. Input Signal & Power
  4.2 LVDS Interface
  4.3 Input Signals, Basic Display Colors and Gray Scale of Each Color

5. Interface Timing ---------------------------------------------------------------------------------------- (14)
  5.1 Timing Parameters
  5.2 Timing Diagrams of interface Signal
  5.3 Power ON/OFF Sequence

6. Outline Dimension -------------------------------------------------------------------------------------- (17)

7. Packing --------------------------------------------------------------------------------------------------- (18)
   7.1 CARTON(Internal Package)
   7.2 Packing Specification

8. Marking & Others ------------------------------------------------------------------------------------- (20)

9. General Precaution ----------------------------------------------------------------------------------- (21)
   9.1 Handling
   9.2 Storage
   9.3 Operation
   9.4 Operation Condition Guide
   9.5 Others




MODEL           LSJ460HW05               Doc. No            07-000- G-20120215                 Page           2/24
                                                                     Samsung Secret
Revision History

    Date        Rev. No   Page   Summary


 15.Feb.2012     000       all   First issued




MODEL          LSJ460HW05        Doc. No        07-000- G-20120215      Page     3/24
General Description                                                           Samsung Secret

  Description
   LSJ460HW05 is a color active matrix liquid crystal display (LCD) that uses amorphous
  silicon TFT( Thin Film Transistor) as switching components. This model is composed of a
  TFT LCD panel, a driver circuit. The resolution of a 46" is 1920 x 1080 and this model can
  display up to 16.7 million colors with wide viewing angle of 89
