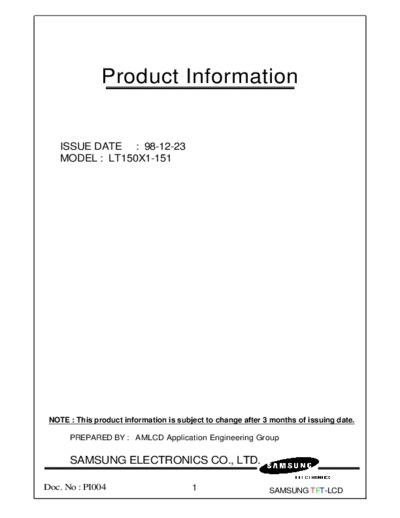

Image preview - the first page of the document
Panel_SAMSUNG_LT150X1-151_0_[DS]


>> Download Panel_SAMSUNG_LT150X1-151_0_[DS] documenatation <<

Text preview - extract from the document
               Product Information


    ISSUE DATE : 98-12-23
    MODEL : LT150X1-151




 NOTE : This product information is subject to change after 3 months of issuing date.

      PREPARED BY : AMLCD Application Engineering Group


      SAMSUNG ELECTRONICS CO., LTD.

Doc. No : PI004                         1                    SAMSUNG TFT-LCD
      CONTENTS

     General Description                                     -------------------( 3 )

     1. Electrical Absolute Characteristics                  -------------------( 4 )
       1.1 TFT LCD Module
       1.2 Back-light Unit

     2. Optical Characteristics                              -------------------( 5 )

     3. Electrical Characteristics                           -------------------( 8 )
       3.1 TFT LCD Module
       3.2 Back-light Unit

     4. Block Diagram                                        - - - - - - - - - - - - - - - - - - - ( 11 )
       4.1 TFT LCD Module
       4.2 Back-light Unit

     5. Input Terminal Pin Assignment                 - - - - - - - - - - - - - - - - - - - ( 12 )
       5.1 Input signal & Power
       5.2 Back-light Unit
       5.3 Input Signal,Basic Display Colors and Gray Scale of Each Colors

     6. Interface Timing                               - - - - - - - - - - - - - - - - - - - ( 15 )
       6.1 Timing Parameters (Sync & DE mode)
       6.2 Timing Diagrams of interface Signal (Sync & DE mode)
       6.3 Timing Parameters (DE only mode)
       6.4 Timing Diagrams of interface signal (DE only mode)
       6.5 Power ON/OFF Sequence

     7. Outline Dimension                                    - - - - - - - - - - - - - - - - - - - ( 20 )

     8. General Precautions                                  - - - - - - - - - - - - - - - - - - - ( 21 )
        8.1 Handling
        8.2 Storage
        8.3 Operation
        8.4 Others




Doc. No : PI004                               2                          SAMSUNG TFT-LCD
 GENERAL DESCRIPTION
 DESCRIPTION
    LT150X1-151 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD)
  that uses amorphous silicon TFT switching devices. This model is composed of a TFT
  LCD panel, a driver circuit and a back-light system. The resolution of 15.0- inch contains
  1,024 x 768 pixels and can display up to 262,144 colors. 6 o'clock direction is the optimum
  viewing angle.


 FEATURES
