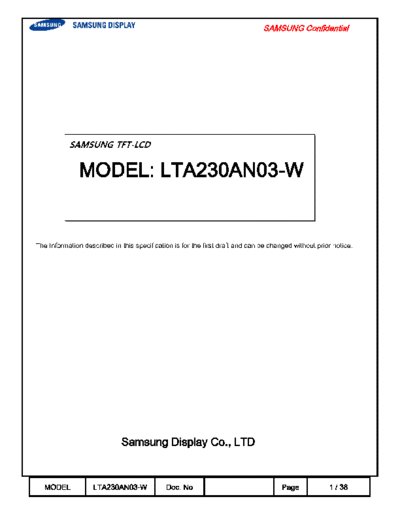

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTA230AN03-W_0_[DS] documenatation <<

Text preview - extract from the document

                                                                               SAMSUNG Confidential




           SAMSUNG TFT-LCD


               MODEL: LTA230AN03-W


The Information described in this specification is for the first draft and can be changed without prior notice.




                             Samsung Display Co., LTD


  MODEL             LTA230AN03-W             Doc. No                                  Page            1 / 38
                                                                           SAMSUNG Confidential
                                                 Contents

Revision History                                                     -------------------(3)

General Description                                                  -------------------(4)

1. Absolute Maximum Ratings                                  -------------------(6)
     1.1 Environmental Absolute Ratings
     1.2 Electrical Absolute Ratings
     1.3 The Others Absolute Ratings
2. Optical Characteristics                                   -------------------(7)
3. Electrical Characteristics                                - - - - - - - - - - - - - - - - - - - ( 13 )
     3.1 TFT LCD Module
     3.2 Backlight Unit
     3.3 LED Module Connector
4. Block Diagram                                             - - - - - - - - - - - - - - - - - - - ( 16 )
     4.1 TFT LCD Module
     4.2 Back Light
5. Input Terminal Pin Assignment                             - - - - - - - - - - - - - - - - - - - ( 17 )
     5.1 Input Signal & Power
     5.2 Converter Input Pin Configuration
     5.3 Converter Input Power Sequence
     5.4 LVDS Interface
     5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
     5.6 Pixel Format in the display
6. Interface Timing                                          - - - - - - - - - - - - - - - - - - - ( 23 )
     6.1 The parameters of timing
     6.2 Timing diagrams of interface signal
     6.3 Characteristics of Input data of LVDS
     6.4 The sequence of power on and off
7. Outline Dimension                                         - - - - - - - - - - - - - - - - - - - ( 32 )
8. Reliability Test                                          - - - - - - - - - - - - - - - - - - - ( 33 )
9.Marking & Others                                           - - - - - - - - - - - - - - - - - - - ( 35 )
10.General Precaution                                        - - - - - - - - - - - - - - - - - - - ( 36 )
  10.1 Handling
  10.2 Storage
  10.3 Operation
  10.4 Guide for the Operation Condition
  10.5 Others
11. Special Precautions                                      - - - - - - - - - - - - - - - - - - - ( 39 )




MODEL            LTA230AN03-W             Doc. No                                  Page            2 / 38
                                                  SAMSUNG Confidential
The revision history


      Date             Rev. No   Page                    Summary

22. Fab. 2012           000       all             First Issued (First Draft)




    MODEL       LTA230AN03-W            Doc. No                 Page           3 / 38
                                                                            SAMSUNG Confidential
General Description
Description
  LTA230AN03 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT(Thin Film
  Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit, and a
  back-light unit. This 23.0" model has a resolution of 1366 x 768 pixels (16:9) can display up to
 16.7 Million colors with the wide viewing angle of 89
