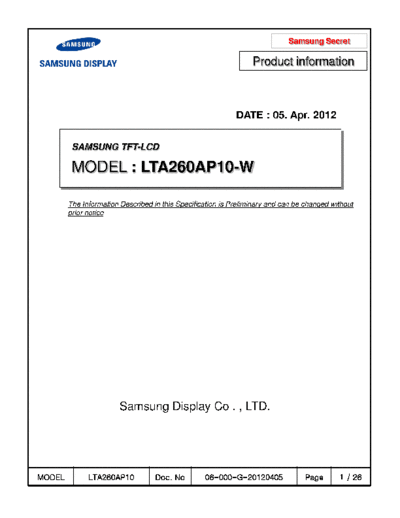

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTA260AP10-W_0_[DS] documenatation <<

Text preview - extract from the document

                                                                            Samsung Secret

                                                                 Product information



                                                            DATE : 05. Apr. 2012


         SAMSUNG TFT-LCD

         MODEL : LTA260AP10-W

        The Information Described in this Specification is Preliminary and can be changed without
        prior notice




                        Samsung Display Co . , LTD.




MODEL         LTA260AP10           Doc. No        06-000-G-20120405              Page       1 / 26
                                                   Contents                              Samsung Secret

Revision History -------------------------------------------------------------------------------------------- (3)

General Description --------------------------------------------------------------------------------------- (4)

General Information --------------------------------------------------------------------------------------- (4)

1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)

2. Optical Characteristics --------------------------------------------------------------------------------- (6)

3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
   3.1 TFT LCD Module
   3.2 Back Light Unit
   3.3 Converter Input & Specification

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
   4.1 Input Signal & Power
   4.2 Converter Input Pin Configuration
   4.3 Converter Input Power Sequence
   4.4 LVDS Interface
   4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color

5. Interface Timing ---------------------------------------------------------------------------------------- (17)
   5.1 Timing Parameters (DE mode)
   5.2 LVDS Input data Characteristics
   5.3 Timing Diagrams of interface Signal (DE mode)
   5.4 Power ON/OFF Sequence

6. Outline Dimension -------------------------------------------------------------------------------------- (20)

7. Packing --------------------------------------------------------------------------------------------------- (22)

8. Marking & Others --------------------------------------------------------------------------------------- (23)

9. General Precaution ------------------------------------------------------------------------------------ (24)
   9.1 Handling
   9.2 Storage
   9.3 Operation
   9.4 Operation Condition Guide
   9.5 Others




MODEL           LTA260AP10               Doc. No           06-000-G-20120405                   Page         2 / 26
                                                                 Samsung Secret
Revision History

            Rev.
  Date                   Page                           Summary
             No

 05. Apr.
            000          All             First issued
  2012




MODEL       LTA260AP10         Doc. No       06-000-G-20120405      Page    3 / 26
General Description                                                               Samsung Secret


 Description
   LTA260AP10 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT
  (Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel, a
  driver circuit and a back light unit. The resolution of a 26.0" is 1366 x 768 and this model can
  display up to 16.7 million colors with wide viewing angle of 89
