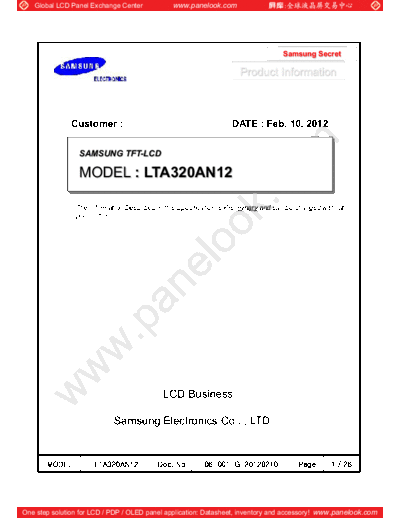

Image preview - the first page of the document
![Panel_SAMSUNG_LTA320AN12_2_[DS]](/pics/5eb00bdd61111.gif)
>> Download Panel_SAMSUNG_LTA320AN12_2_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Product Information
Customer : DATE : Feb. 10. 2012
SAMSUNG TFT-LCD
MODEL : LTA320AN12
The Information Described in this Specification is Preliminary and can be changed without
prior notice
LCD Business
Samsung Electronics Co . , LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Contents Samsung Secret
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
3.1 TFT LCD Module
3.2 Back Light Unit
3.3 Converter Input & Specification
4. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
4.1 Input Signal & Power
4.2 Converter Input Pin Configuration
4.3 Converter Input Power Sequence
4.4 LVDS Interface
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ---------------------------------------------------------------------------------------- (17)
5.1 Timing Parameters (DE only mode)
5.2 LVDS Input data Characteristics
5.3 Timing Diagrams of interface Signal (DE only mode)
5.4 Power ON/OFF Sequence
6. Outline Dimension -------------------------------------------------------------------------------------- (20)
7. Packing --------------------------------------------------------------------------------------------------- (22)
8. Marking & Others --------------------------------------------------------------------------------------- (23)
9. General Precaution ------------------------------------------------------------------------------------ (24)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Revision History
Rev.
Date Page Summary
No
14. Nov.
000 All First issued
2011
25 Update the storage condition
Feb. 10.
001 6 Update TBD
2012
11 Update TBD
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
General Description Samsung Secret
Description
LTA320AN12 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT
(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel, a
driver circuit and a back light unit. The resolution of a 32.0" is 1366 x 768 and this model can
display up to 16.7 million colors with wide viewing angle of 89 or higher in all directions. This
panel is intended to support applications to provide a excellent performance for Flat Panel Display
such as Home-alone Multimedia TFT-LCD TV and High Definition TV
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
PVA (Patterned Vertical Align) mode
Wide viewing angle ( 178 )
High speed response
HD resolution (16:9)
Low Power consumption
Edge Type LED (Light Emitted Diode) BLU
DE (Data Enable) mode
1Ch LVDS (Low Voltage Differential Signaling) interface (1pixel/clock)
General Information
Items Specification Unit Note
734.4 (H) X 430.3 (V) 1.0mm
Module Size mm
12.8 (D max)
Weight 5300(Max) g
Pixel Pitch 0.51075 (H) 0.51075 (V) mm
Active Display Area 697.6845 (H) X 392.256 (V) mm
Surface Treatment Hard-coating
Display Colors 8 bit ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
