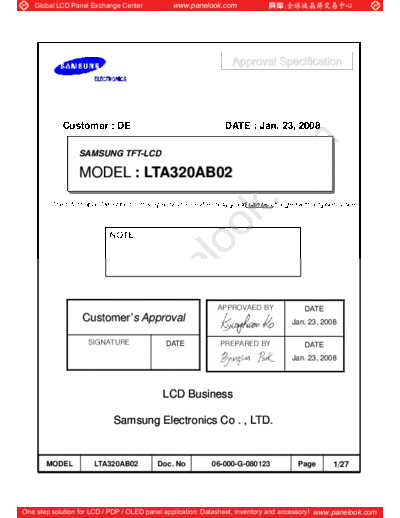

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTA320AB02_0_[DS] documenatation <<

Text preview - extract from the document

   Global LCD Panel Exchange Center             www.panelook.com




                                                                    Approval Specification




            Customer : DE                                         DATE : Jan. 23, 2008

                 SAMSUNG TFT-LCD

                 MODEL : LTA320AB02

        The Information Described in this Specification is Preliminary and can be changed without prior notice



                           NOTE :




                                                               hwwyv}hlkGi                   DATE
                  Customer's Approval                                                   Jan. 23, 2008

                    zpnuh{|yl                 DATE              wylwhylkGi                   DATE
                                                                                        Jan. 23, 2008




                                             LCD Business

                            Samsung Electronics Co . , LTD.


       MODEL          LTA320AB02           Doc. No           06-000-G-080123              Page        1/27




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                    www.panelook.com




                                                           Contents

        Revision History -------------------------------------------------------------------------------------------- (3)

        General Description --------------------------------------------------------------------------------------- (4)

        General Information --------------------------------------------------------------------------------------- (4)

        1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)

        2. Optical Characteristics --------------------------------------------------------------------------------- (7)

        3. Electrical Characteristics ----------------------------------------------------------------------------- (10)
           3.1 TFT LCD Module
           3.2 Back Light Unit
           3.3 Inverter Input & Specification

        4. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
           4.1 Input Signal & Power
           4.2 Inverter Input Pin Configuration
           4.3 Inverter Input Power Sequence
           4.4 LVDS Interface
           4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color

        5. Interface Timing ----------------------------------------------------------------------------------------- (17)
        5 I t f      Ti i
           5.1 Timing Parameters (DE only mode)
           5.2 Timing Diagrams of interface Signal (DE only mode)
           5.3 Power ON/OFF Sequence

        6. Outline Dimension -------------------------------------------------------------------------------------- (20)

        7. Reliability Test ------------------------------------------------------------------------------------------ (22)

        8. Packing --------------------------------------------------------------------------------------------------- (23)

        9. Marking & Others --------------------------------------------------------------------------------------- (24)

        10. General Precaution ------------------------------------------------------------------------------------ (25)
          10.1 Handling
          10.2 Storage
          10.3 Operation
          10.4 Operation Condition Guide
          10.5 Others




       MODEL            LTA320AB02               Doc. No              06-000-G-080123                   Page         2/27




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center           www.panelook.com




        Revision History

                    Rev.
           Date              Page   Summary
                     No

         Jan. 23,
                    000       all   First issued
          2008




       MODEL          LTA320AB02         Doc. No          06-000-G-080123            Page       3/27




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center           www.panelook.com




      General Description
        Description
         LTA320AB02 is a color active matrix liquid crystal display (LCD) that uses amorphous
        silicon TFT(Thin Film Transistor) as switching components. This model is composed of a
        TFT LCD panel, a driver circuit and a back light unit. The resolution of a 32.0" is
        1366 x 768 and this model can display up to 16.7 million colors with wide viewing angle of
        89
