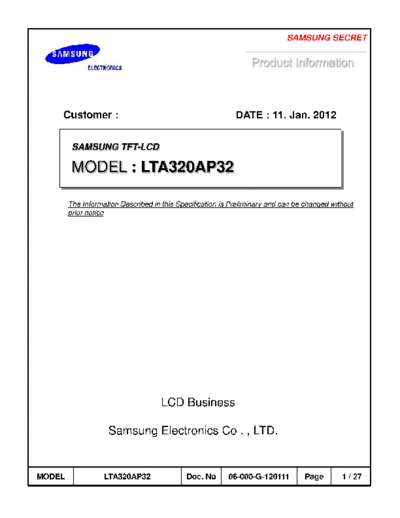

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTA320AP32_0_[DS] documenatation <<

Text preview - extract from the document

                                                                            SAMSUNG SECRET

                                                                 Product Information



    Customer :                                              DATE : 11. Jan. 2012


         SAMSUNG TFT-LCD

         MODEL : LTA320AP32

        The Information Described in this Specification is Preliminary and can be changed without
        prior notice




                                     LCD Business

                    Samsung Electronics Co . , LTD.


MODEL              LTA320AP32               Doc. No       06-000-G-120111        Page        1 / 27
                                                                                         SAMSUNG SECRET
                                                   Contents

Revision History -------------------------------------------------------------------------------------------- (3)

General Description --------------------------------------------------------------------------------------- (4)

General Information --------------------------------------------------------------------------------------- (4)

1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)

2. Optical Characteristics --------------------------------------------------------------------------------- (7)

3. Electrical Characteristics ----------------------------------------------------------------------------- (10)
   3.1 TFT LCD Module
   3.2 Back Light Unit
   3.3 Inverter Input Condition & Specification

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (13)
   4.1 Input Signal & Power
   4.2 Inverter Input Pin Configuration
   4.3 Inverter Input Power sequence
   4.4 LVDS Interface
   4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color

5. Interface Timing ----------------------------------------------------------------------------------------- (19)
   5.1 Timing Parameters (DE only mode)
   5.2 Timing Diagrams of interface Signal (DE only mode)
   5.3 Power ON/OFF Sequence

6. Outline Dimension -------------------------------------------------------------------------------------- (22)

7. Packing ---------------------------------------------------------------------------------------------------- (23)

8. Marking & Others ------------------------------------------------------------------------------------- (24)

9. General Precaution ------------------------------------------------------------------------------------ (25)
   9.1 Handling
   9.2 Storage
   9.3 Operation
   9.4 Operation Condition Guide
   9.5 Others




MODEL                 LTA320AP32                     Doc. No        06-000-G-120111             Page          2 / 27
                                                       SAMSUNG SECRET
Revision History


 Date   Rev. No        Page                    Summary


  11.
 Jan.     000           All   First Issued
 2012




MODEL           LTA320AP32    Doc. No    06-000-G-120111   Page   3 / 27
                                                                               SAMSUNG SECRET
General Description
  Description
   LTA320AP32 is a color active matrix liquid crystal display (LCD) that uses amorphous
  silicon TFT (Thin Film Transistor) as switching components. This model is composed of a
  TFT LCD panel, a driver circuit and a back light unit.
   The resolution of a 32.0" is 1366 x 768 and this model can display up to 16.7 Million
  colors with wide viewing angle of 89
