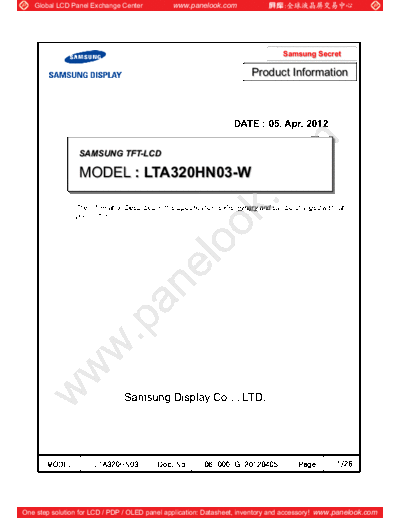

Image preview - the first page of the document
![Panel_SAMSUNG_LTA320HN03-W_0_[DS]](/pics/5eb00ed6dc5bb.gif)
>> Download Panel_SAMSUNG_LTA320HN03-W_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Product Information
DATE : 05. Apr. 2012
SAMSUNG TFT-LCD
MODEL : LTA320HN03-W
The Information Described in this Specification is Preliminary and can be changed without
prior notice
Samsung Display Co . , LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Contents
Samsung Secret
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
3.1 TFT LCD Module
3.2 Back Light Unit
3.3 LED Driver Input Condition & Specification
4. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
4.1 Input Signal & Power
4.2 Converter Input Pin Configuration
4.3 Converter Input Power Sequence
4.4 LVDS Interface
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ---------------------------------------------------------------------------------------- (17)
5.1 Timing Parameters (DE mode)
5.2 LVDS Input data Characteristics
5.3 Timing diagrams of interface signal ( DE mode )
5.4 Power ON/OFF Sequence
6. Outline Dimension -------------------------------------------------------------------------------------- (20)
7. Packing --------------------------------------------------------------------------------------------------- (23)
7.1 CARTON (Internal Package)
7.2 Packing Specification
8. Marking & Others --------------------------------------------------------------------------------------- (24)
9. General Precaution ----------------------------------------------------------------------------------- (25)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
* Revision History
Rev.
Date Page Summary
No
05. Apr,
000 all First Issued
2012
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
General Description Samsung Secret
Description
LTA320HN03 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon
TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel,
a driver circuit and a back light unit. The resolution of a 32.0" is 1920 x 1080 and this model can
display up to 1.07 Billion colors with wide viewing angle of 89 or higher in all directions. This panel
is intended to support applications to provide a excellent performance for Flat Panel Display such
as Home-alone Multimedia TFT-LCD TV and High Definition TV.
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
SPVA(Super Patterned Vertical Align) mode
Wide viewing angle ( 178 )
High speed response
FHD resolution (16:9)
Low Power consumption
Edge Type LED (Light Emitted Diode) BLU
DE (Data Enable) mode
2ch LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
General Information
Items Specification Unit Note
725.2(H) x 421.9(V) 1.0mm
Module Size mm With wall mount
22.8(D) Max.
stud
Weight 5500 g 1000g
Pixel Pitch 0.12125(H) x 0.36375(W) mm
Active Display Area 698.4(H) x 392.85(V) mm
Surface Treatment Haze 5.5 % - Anti Glare
Display Colors 1.07 Billion colors 8 bit + FRC
Number of Pixels 1920 x 1080 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
Luminance of White 400 (Typ.) cd/m2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
Power Supply Voltage VDD GND-0.3 13.2 V (1)
Storage temperature TSTG -20 60
(2)
Operating temperature TOPR 0 50
Shock ( non - operating ) X,Y,Z - 50 G (4)
Vibration ( non - operating ) VNOP - 1.5 G (5)
Note (1) Ta= 25 2 C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta 39 C)
b. Relative Humidity is 90% or less. (Ta 39 C)
c. No condensation
(3) Although abnormal visual problems can be occurred in TSUR range, the polarizer
is not damaged in this range.
(4) 11ms, sine wave, one time for X, Y, Z axis
(5) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
Fig. Temperature and Relative humidity range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
2. Optical Characteristics Samsung Secret
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment : BM-7(TOPCON ), PR-650(Photo Reserch ), SR-3
(Ta = 25 2 C, VDD=12V, fv= 60Hz, fDCLK = 148.5 MHz, LED Current = 140 mA)
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio (1)
C/R - 5000 -
(Center of screen) SR-3
(3)
Response
G-to-G Tg - - 16 msec BM-7
Time
RD-80S
Luminance of White (4)
YL - 400 - cd/m2
(Center of screen) SR-3
Normal
Rx 0.644
Red qL,R =0
Ry qU,D =0 0.334
Gx 0.308 (5),(6)
Green Viewing
Color Gy 0.600 PR-650
Angle TYP. TYP.
Chromaticity SR-3
Bx -0.03 0.151 +0.03
(CIE 1931) Center
Blue
By 0.056 Point
Wx 0.275
White
Wy 0.285
Color Gamut - - 70 - % (5)
SR-3
Color Temperature - - 10,000 - K
qL 75 89 -
Hor.
Viewing qR 75 89 - (6)
C/R10 Degree
Angle qU 75 89 - EZ-Contrast
Ver.
qD 75 89 -
White Brightness
(2)
Uniformity Buni - - 30 %
SR-3
(9 Points)
- Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
Environment condition : Ta = 25 2 C
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Photo detector
Photo detector Field
SR-3 2
PR-650 1 Field
BM-7 2 /1
D : 50
TFT - LCD Module
LCD Panel
The center of the screen
- Definition of test point
320 960 1600
180 Active Area
Test Point
540
900
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point of the panel
G max
C/R
G min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Note (2) Definition of 9 points brightness uniformity (Test pattern : Full White )
( B max B min)
Buni 100
B max
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (3) Definition of Response time : Sum of Tr, Tf
Display data Black (data off) White (data on) Black (data off)
TR TF
Optical Instruments
100%
Response
90%
10%
0%
TIME
Note (4) Definition of Luminance of White : Luminance of white at center point
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point
Note (6) Definition of Viewing Angle
: Viewing angle range (C/R 10)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Ta = 25 C 2 C
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply VDD 10.8 12.0 13.2 V (1)
(a) Black - 290 - mA
Current of
Power (b) White IDD - 300 - mA (2),(3)
Supply
(c) N-Pattern - 480 600 mA
Vsync Frequency fV 52.5 60 63 Hz
Hsync Frequency fH 59 67.5 73 kHz
Main Frequency fDCLK 130 148.5 160 MHz
Rush Current IRUSH - - 3 A (4)
Note (1) The ripple voltage should be controlled under 10% of VDD.
(2) fV=60Hz, fDCLK = 148.5MHz, VDD = 12.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) N-Pattern
(4) Measurement Conditions
VDD
100%
90%
10%
GND
TRUSH=470
Rush Current IRUSH can be measured when TRUSH. is 470 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
3.2 Back Light Unit
The back light unit contains Edge type White LEDs (Light Emitting Diode)
Ta=25 2C
Control Board
LCD Module
Converter
Item Symbol Min. Typ. Max. Unit Note
Operating Life Time Hr - 30,000 - Hour (1)
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original
value.
[Operating condition : Ta = 25 2 , For LED Package only. ]
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3.3 Converter Input Condition & Specification Samsung Secret
Specifications
Items Symbol Conditions Unit Note
Min. Typ. Max.
Input Voltage Vin - 22 24 26 V Ta=25 2 C
IRUSH (2D) Vin=24.0V
Input Current - - 2.12 A
PWM = 100%
Note (1)
Output Vin=24.0V
IO (2D) 133 140 147 mArms
Current PWM = 100%
ON Vin=24.0 V 3.0 - 5.5
Backlight
V
On/Off
OFF Vin=24.0 V -0.3 - 0.8
External Dimming
EX_Dim 1 - 100 %
Duty Range
Vin=22.0~26.0 V
External Dimming
FEX_PWM 95 - 200 Hz
Frequency Range Note (2, 3)
High (ON) 3.0 - 5.5
External Dimming
VPWM V
Signal Level
Low (Off) -0.3 - 0.8
Note) Power Consumption is measured when 400 [cd/m ] of luminance which is the typical
luminance.
(1) All data is measured after 120min warm-up.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
4. Input Terminal Pin Assignment Samsung Secret
4.1. Input Signal & Power Connector :FI-RE51S-HF (JAE/UJU)
PIN No. Description PIN No. Description
1 VDD(12V) 26 RE[0]P
2 VDD(12V) 27 RE[1]N
3 VDD(12V) 28 RE[1]P
4 VDD(12V) 29 RE[2]N
5 VDD(12V) 30 RE[2]P
6 No Connection * Note (1) 31 GND
Even
7 GND 32 LVDS RE[CLK]N
Signal
8 GND 33 RE[CLK]P
9 GND 34 GND
10 RO[0]N 35 RE[3]N
11 RO[0]P 36 RE[3]P
12 RO[1]N 37 RE[4]N
13 RO[1]P 38 RE[4]P
14 RO[2]N 39 GND
15 RO[2]P 40 No Connection
16 Odd GND 41 No Connection
LVDS
17 Signal RO[CLK]N 42 No Connection
18 RO[CLK]P 43 No Connection
19 GND 44 No Connection
20 RO[3]N 45 LVDS Option *Note (2)
21 RO[3]P 46 No Connection
22 RO[4]N 47 No Connection
23 RO[4]P 48 No Connection
24 GND 49 No Connection
25 Even LVDS RE[0]N 50 No Connection
51 No Connection
Note)(1) No Connection: This PINS are only used for SAMSUNG internal using.
(2) LVDS OPTION : If this PIN : HIGH (3.3 V) Normal LVDS format
: LOW (GND) JEIDA LVDS format
SEQUENCE : On = VDD(T1) LVDS Option Interface Signal(T2)
OFF = Interface Signal(T3) LVDS Option VDD
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Vin T2 T3
LVDS
Option
LVDS
Signal
LVDS Option Sequence
Note(3) Pin number starts from left side
PCB
Pin No. 1 Pin No. 51
#1 #51
connect name
#1 #51
Fig. Connector diagram
a. All GND pins should be connected together and also be connected to the LCD's
metal chassis.
b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
4.2. converter Input Pin Configuration
Connector : Yeon-ho, 20022WR-14B1
Pin Configuration (FUNCTION)
Pin No.
Master
1~5 Vin
6~10 GND
11 No connection
12 Backlight On /Off [ON:2.4 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
