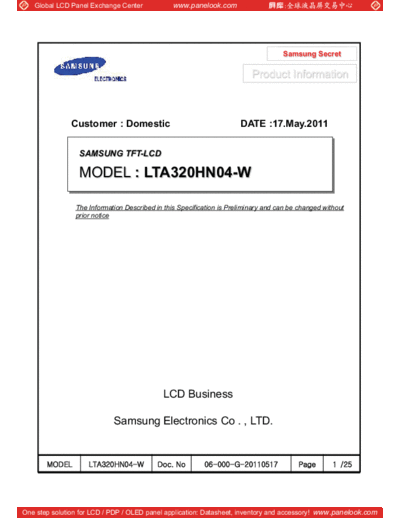

Image preview - the first page of the document
![Panel_SAMSUNG_LTA320HN04-W_0_[DS]](/pics/5eb00eee40d72.gif)
>> Download Panel_SAMSUNG_LTA320HN04-W_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Product Information
Customer : Domestic DATE :17.May.2011
SAMSUNG TFT-LCD
MODEL : LTA320HN04-W
The Information Described in this Specification is Preliminary and can be changed without
prior notice
LCD Business
Samsung Electronics Co . , LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Contents Samsung Secret
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
3.1 TFT LCD Module
3.2 Back Light Unit
3.3 Inverter Input & Specification
4. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
4.1 Input Signal & Power
4.2 Converter Input Pin Configuration
4.3 Converter Input Power Sequence
4.4 LVDS Interface
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ---------------------------------------------------------------------------------------- (17)
5.1 Timing Parameters (DE only mode)
5.2 Timing Diagrams of interface Signal (DE only mode)
5.3 Power ON/OFF Sequence
6. Outline Dimension -------------------------------------------------------------------------------------- (20)
7. Packing --------------------------------------------------------------------------------------------------- (22)
8. Marking & Others --------------------------------------------------------------------------------------- (23)
9. General Precaution ------------------------------------------------------------------------------------ (24)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Revision History
Date Rev. No Page Summary
17.May.
000 all First issued
2010
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
General Description Samsung Secret
Description
LTA320HN04-W is a color active matrix liquid crystal display (LCD) that uses amorphous silicon
TFT (Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel,
a driver circuit and a back light unit. The resolution of a 32.0" is 1920x 1080 and this model can
display up to 16.7 million colors with wide viewing angle of 89 or higher in all directions. This
panel is intended to support applications to provide a excellent performance for Flat Panel Display
such as Home-alone Multimedia TFT-LCD TV and High Definition TV
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
PVA (Patterned Vertical Align) mode
Wide viewing angle ( 178 )
High speed response
FHD resolution (16:9)
Low Power consumption
Direct U-Type 4 CCFLs (Cold Cathode Fluorescent Lamp)
DE (Data Enable) mode
2ch LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
General Information
Items Specification Unit Note
760(H) X 450 (V) 1.0mm
Module Size mm
54.2 (D max) With inverter
Weight 5500 (Max) g With inverter
Pixel Pitch 0.36375 (H) 0.12125 (V) mm
Active Display Area 698.4 (H) X 392.85 (V) mm
Surface Treatment Haze 5.5%, Hard-coating(2H)
Display Colors 8 bit ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
