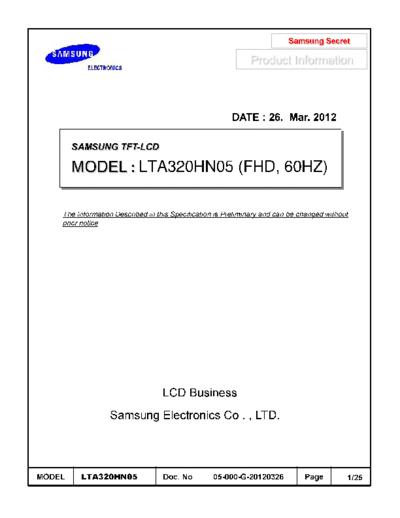

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTA320HN05_0_[DS] documenatation <<

Text preview - extract from the document

                                                                          Samsung Secret

                                                              Product Information



                                                        DATE : 26. Mar. 2012

        SAMSUNG TFT-LCD

        MODEL : LTA320HN05 (FHD, 60HZ)

    The Information Described in this Specification is Preliminary and can be changed without
    prior notice




                                   LCD Business
                  Samsung Electronics Co . , LTD.




MODEL    LTA320HN05                Doc. No        05-000-G-20120326            Page         1/25
                                                   Contents                              Samsung Secret


Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
   3.1 TFT LCD Module
   3.2 Back Light Unit
4. Input Terminal Pin Assignment --------------------------------------------------------------------- (11)
   4.1 Input Signal & Power
   4.2 . LS Bar Input Pin Configuration
   4.3 LVDS Interface
   4.4 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ---------------------------------------------------------------------------------------- (16)
   5.1 Timing Parameters (Stand Alone Mode)
   5.2 Timing Diagrams of interface Signal (D mode)
   5.3 Power ON/OFF Sequence
6. Outline Dimension -------------------------------------------------------------------------------------- (19)
7. Packing -------------------------------------------------------------------------------------------------- (21)
8. Marking & Others --------------------------------------------------------------------------------------- (22)
9. General Precaution ------------------------------------------------------------------------------------ (23)
   9.1 Handling
   9.2 Storage
   9.3 Operation
   9.4 Operation Condition Guide
   9.5 Others




MODEL         LTA320HN05                   Doc. No           05-000-G-20120326                Page            2/25
                                                             Samsung Secret
* Revision History

          Rev.
 Date                Page                      Summary
           No
  26.
 Mar,     000         -                       First Issued
 2012




MODEL    LTA320HN05         Doc. No   05-000-G-20120326         Page      3/25
General Description                                                            Samsung Secret

  Description
  LTA320XXXX is a color active matrix liquid crystal display (LCD) that uses amorphous
  silicon TFT(Thin Film Transistor) as switching components. This model is composed of a
  TFT LCD panel, a driver circuit and a back light unit. The resolution of a 32.0" is 1920 x
  1080 and this model can display up to 1.07G colors with wide viewing angle of 89
