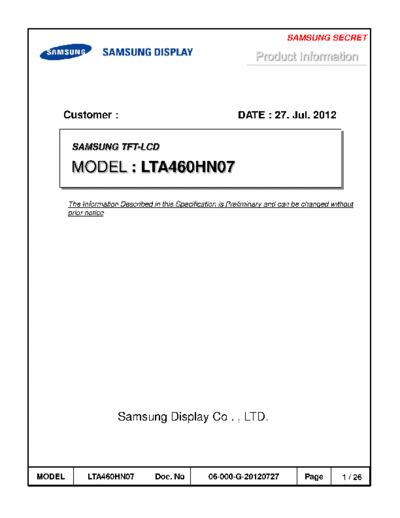

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTA460HN07_1_[DS] documenatation <<

Text preview - extract from the document

                                                                            SAMSUNG SECRET

                                                                  Product Information



    Customer :                                               DATE : 27. Jul. 2012


         SAMSUNG TFT-LCD

         MODEL : LTA460HN07

        The Information Described in this Specification is Preliminary and can be changed without
        prior notice




                       Samsung Display Co . , LTD.



MODEL         LTA460HN07           Doc. No         06-000-G-20120727             Page        1 / 26
                                                                                         SAMSUNG SECRET
                                                   Contents

Revision History -------------------------------------------------------------------------------------------- (3)

General Description --------------------------------------------------------------------------------------- (4)

General Information --------------------------------------------------------------------------------------- (4)

1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)

2. Optical Characteristics --------------------------------------------------------------------------------- (6)

3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
   3.1 TFT LCD Module
   3.2 Back Light Unit
   3.3 Converter Input & Specification

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
   4.1 Input Signal & Power
   4.2 Converter Input Pin Configuration
   4.3 Converter Input Power Sequence
   4.4 LVDS Interface
   4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color

5. Interface Timing ---------------------------------------------------------------------------------------- (17)
   5.1 Timing Parameters (DE only mode)
   5.2 LVDS Input data Characteristics
   5.3 Timing Diagrams of interface Signal (DE only mode)
   5.4 Power ON/OFF Sequence

6. Outline Dimension -------------------------------------------------------------------------------------- (20)

7. Packing --------------------------------------------------------------------------------------------------- (22)

8. Marking & Others --------------------------------------------------------------------------------------- (23)

9. General Precaution ------------------------------------------------------------------------------------- (24)
   9.1 Handling
   9.2 Storage
   9.3 Operation
   9.4 Operation Condition Guide
   9.5 Others




MODEL           LTA460HN07               Doc. No            06-000-G-20120727                  Page          2 / 26
                                                                     SAMSUNG SECRET
Revision History


  Date      Rev. No       Page                              Summary


 27. Jul.
             000           all             First issued
  2012




MODEL        LTA460HN07          Doc. No         06-000-G-20120727      Page   3 / 26
                                                                             SAMSUNG SECRET
General Description
 Description
  LTA460HN07 is a color active matrix liquid crystal display (LCD) that uses amorphous
 silicon TFT (Thin Film Transistor) as switching components. This model is composed of a
 TFT LCD panel, a driver circuit and a back light unit.
  The resolution of a 46.0" is 1920 x 1080 and this model can display up to 16.7 Million
 colors with wide viewing angle of 89
