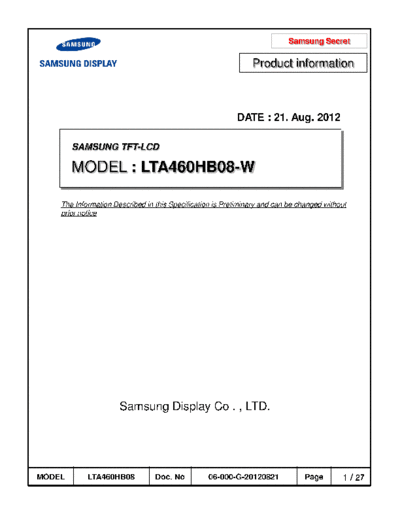

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTA460HB08-W01_0_[DS] documenatation <<

Text preview - extract from the document

                                                                           Samsung Secret

                                                               Product information



                                                          DATE : 21. Aug. 2012

        SAMSUNG TFT-LCD

        MODEL : LTA460HB08-W

    The Information Described in this Specification is Preliminary and can be changed without
    prior notice




                      Samsung Display Co . , LTD.




MODEL       LTA460HB08           Doc. No          06-000-G-20120821             Page       1 / 27
                                                                                         Samsung Secret
 Contents

Revision History -------------------------------------------------------------------------------------------- (3)

General Description --------------------------------------------------------------------------------------- (4)

General Information --------------------------------------------------------------------------------------- (4)

1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)

2. Optical Characteristics --------------------------------------------------------------------------------- (7)

3. Electrical Characteristics ----------------------------------------------------------------------------- (10)
   3.1 TFT LCD Module
   3.2 Back Light Unit
   3.3 Inverter Input & specification

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (13)
   4.1 Input Signal & Power
   4.2 Inverter Input Pin Configuration
   4.3 Inverter Input Power Sequence
   4.4 LVDS Interface
   4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color

5. Interface Timing ---------------------------------------------------------------------------------------- (18)
   5.1 Timing Parameters (DE mode)
   5.2 LVDS Input data Characteristics
   5.3 Timing Diagrams of interface Signal (DE mode)
   5.4 Power ON/OFF Sequence

6. Outline Dimension -------------------------------------------------------------------------------------- (21)

7. Packing --------------------------------------------------------------------------------------------------- (23)

8. Marking & Others --------------------------------------------------------------------------------------- (24)

9. General Precaution ------------------------------------------------------------------------------------- (25)
   9.1 Handling
   9.2 Storage
   9.3 Operation
   9.4 Operation Condition Guide
   9.5 Others




MODEL           LTA460HB08               Doc. No            06-000-G-20120821                  Page          2 / 27
                                                               Samsung Secret
* Revision History

            Rev.
  Date               Page   Summary
             No
 21. Aug.
            000       all   First issued
  2012




MODEL       LTA460HB08      Doc. No        06-000-G-20120821      Page     3 / 27
General Description                                                            Samsung Secret

 Description
   LTA460HB08 is a color active matrix liquid crystal display (LCD) that uses amorphous
  silicon TFT(Thin Film Transistor) as switching components. This model is composed of a
  TFT LCD panel, a driver circuit and a back light unit. The resolution of a 46.0" is
  1920 x 1080 and this model can display up to 16.7 Million colors with wide viewing angle
  of 89
