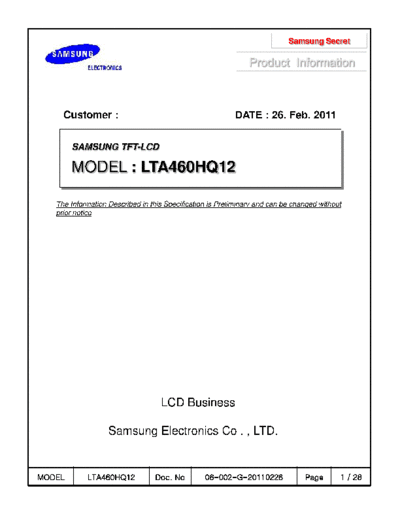

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTA460HQ12_0_[DS] documenatation <<

Text preview - extract from the document

                                                                           Samsung Secret

                                                               Product Information



     Customer :                                           DATE : 26. Feb. 2011


        SAMSUNG TFT-LCD

        MODEL : LTA460HQ12

   The Information Described in this Specification is Preliminary and can be changed without
   prior notice




                                   LCD Business

                   Samsung Electronics Co . , LTD.


MODEL       LTA460HQ12           Doc. No         06-002-G-20110226              Page       1 / 28
                                                   Contents                              Samsung Secret

Revision History -------------------------------------------------------------------------------------------- (3)

General Description --------------------------------------------------------------------------------------- (4)

General Information --------------------------------------------------------------------------------------- (4)

1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)

2. Optical Characteristics --------------------------------------------------------------------------------- (6)

3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
   3.1 TFT LCD Module
   3.2 Back Light Unit
   3.3 Inverter Input & Specification

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
   4.1 Input Signal & Power
   4.2 Converter Input Pin Configuration
   4.3 Converter Input Power Sequence
   4.4 LVDS Interface
   4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color

5. Interface Timing ---------------------------------------------------------------------------------------- (18)
   5.1 Timing Parameters (DE only mode)
   5.2 LVDS Input data Characteristics
   5.3 3D mode Sequence
   5.4 Timing Diagrams of interface Signal (DE only mode)
   5.5 Power ON/OFF Sequence

6. Outline Dimension -------------------------------------------------------------------------------------- (22)

7. Packing --------------------------------------------------------------------------------------------------- (24)

8. Marking & Others --------------------------------------------------------------------------------------- (25)

9. General Precaution ------------------------------------------------------------------------------------- (26)
   9.1 Handling
   9.2 Storage
   9.3 Operation
   9.4 Operation Condition Guide
   9.5 Others




MODEL           LTA460HQ12               Doc. No           06-002-G-20110226                   Page         2 / 28
                                                                      Samsung Secret
Revision History


 Date      Rev. No        Page                               Summary


01. Dec.
            000            all             First issued
 2010

10. Jan.
            001             -              Update TBD Item
 2011

                      Page 4               Modify Module size 1056.5 (W) -> 1054.5(W)
                      Page 9               Update 3.1 TFT LCD Module part
 26.Feb               Page 18              Update 5.1 Timing parameter
            002
  2011                Page 18              Update 5.2 LVDS Input data characteristics
                      Page 19              Add 5.3 3D Mode sequence
                      Page 27              Add 9.2 (d) Storage condition of Packing




MODEL        LTA460HQ12          Doc. No       06-002-G-20110226          Page      3 / 28
General Description                                                               Samsung Secret


 Description
   LTA460HQ12 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon
  TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel,
  a driver circuit and a back light unit. The resolution of a 55.0" is 1920 x 1080 and this model can
  display up to 16.7 Million colors with wide viewing angle of 89
