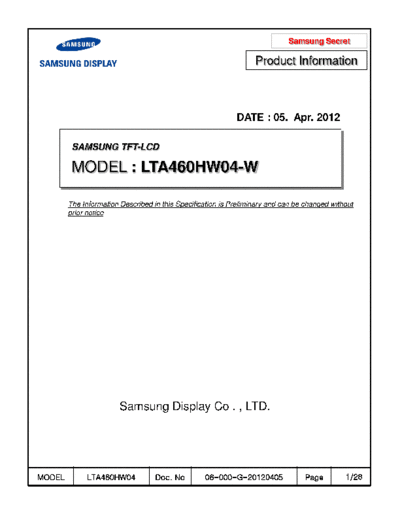

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTA460HW04-W_0_[DS] documenatation <<

Text preview - extract from the document

                                                                            Samsung Secret

                                                                  Product Information



                                                            DATE : 05. Apr. 2012

         SAMSUNG TFT-LCD

         MODEL : LTA460HW04-W

        The Information Described in this Specification is Preliminary and can be changed without
        prior notice




                        Samsung Display Co . , LTD.




MODEL        LTA460HW04            Doc. No        06-000-G-20120405              Page         1/28
                                                   Contents                              Samsung Secret

General Description --------------------------------------------------------------------------------------- (4)

General Information --------------------------------------------------------------------------------------- (4)

1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)

2. Optical Characteristics --------------------------------------------------------------------------------- (6)

3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
   3.1 TFT LCD Module
   3.2 Back Light Unit
   3.3 Converter Input Condition & Specification

4. Input Terminal Pin Assignment --------------------------------------------------------------------- (10)
   4.1 Input Signal & Power
   4.2 Converter Input Pin Configuration
   4.3 Converter Input Power Sequence
   4.4 LVDS Interface
   4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color

5. Interface Timing ---------------------------------------------------------------------------------------- (18)
   5.1 Timing Parameters (DE mode)
   5.2 LVDS Input data Characteristics
   5.3 Timing diagrams of interface signal ( DE mode )
   5.4 3D mode Sequence
   5.5 Power ON/OFF Sequence

6. Outline Dimension -------------------------------------------------------------------------------------- (22)

7. Packing --------------------------------------------------------------------------------------------------- (24)
   7.1 CARTON (Internal Package)
   7.2 Packing Specification

8. Marking & Others ---------------------------------------------------------------------------------------- (25)

9. General Precaution ------------------------------------------------------------------------------------- (26)
   9.1 Handling
   9.2 Storage
   9.3 Operation
   9.4 Operation Condition Guide
   9.5 Others



MODEL           LTA460HW04               Doc. No           06-000-G-20120405                   Page           2/28
                                                               Samsung Secret
* Revision History
            Rev.
  Date             Page   Summary
             No

 05. Apr,
            000     all   First Issued
  2012




MODEL        LTA460HW04          Doc. No   06-000-G-20120405      Page     3/28
General Description                                                                   Samsung Secret


 Description
   LTA460HW04 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon
  TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel,
  a driver circuit and a back light unit. The resolution of a 46.0" is 1920 x 1080 and this model can
  display up to 1.07 Billion colors with wide viewing angle of 89
