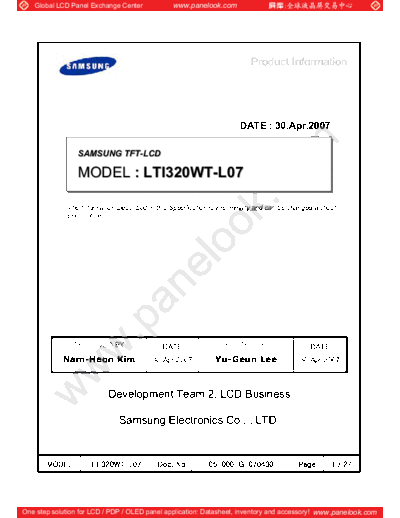

Image preview - the first page of the document
![Panel_SAMSUNG_LTI320WT-L07_0_[DS]](/pics/5eb01e1a9b2c1.gif)
>> Download Panel_SAMSUNG_LTI320WT-L07_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Product Information
DATE : 30.Apr.2007
SAMSUNG TFT-LCD
SAMSUNG TFT-LCD
MODEL : LTI320WT-L07
MODEL : LTI320WT-L07
The Information Described in this Specification is Preliminary and can be changed without
prior notice
DATE DATE
Nam-Heon Kim 30.Apr.2007 Yu-Geun Lee 30.Apr.2007
Development Team 2, LCD Business
Samsung Electronics Co . , LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Contents
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (7)
3. Electrical Characteristics ----------------------------------------------------------------------------- (10)
3.1 TFT LCD Module
3.2 Back Light Unit
3.3 Inverter Input & Specification
4. Input Terminal Pin Assignment --------------------------------------------------------------------- (13)
4.1 Input Signal & Power
4.2 Inverter Input Pin Configuration
4.3 Inverter Input Power Sequence
4.4 LVDS Interface
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
5. Interface Timing ---------------------------------------------------------------------------------------- (18)
5.1 Timing Parameters (DE only mode)
5.2 Timing Diagrams of interface Signal (DE only mode)
5.3 Power ON/OFF Sequence
6. Outline Dimension -------------------------------------------------------------------------------------- (21)
7. Packing --------------------------------------------------------------------------------------------------- (23)
8. Marking & Others --------------------------------------------------------------------------------------- (24)
9. General Precaution ----------------------------------------------------------------------------------- (25)
9.1 Handling
9.2 Storage
9.3 Operation
9.4 Operation Condition Guide
9.5 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
* Revision History
Rev.
Date Page Summary
No
Apr
30, 000 all First issued
2007
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
General Description
Description
LTI320WT-L07 is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT(Thin Film Transistor) as switching components. This model is composed of a
TFT LCD panel, a driver circuit and a back light unit. The resolution of a 32.0" is
1366 x 768 and this model can display up to 16.7 million colors with wide viewing angle of
89 or higher in all directions. This panel is intended to support applications to provide a
excellent performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD
TV, Display terminals for AV application products, and High Definition TV (HDTV).
Features
RoHS compliance (Pb-free)
High contrast ratio, High luminance
SPVA(Super Patterned Vertical Align) mode
Wide viewing angle ( 178 )
High speed response
WXGA (1366 x 768 pixels) resolution (16:9)
Low Power consumption
Direct Type 12 CCFTs(Cold Cathode Fluorescent Tube)
DE(Data Enable) mode
LVDS (Low Voltage Differential Signaling) interface (1pixel/clock)
General Information
Items Specification Unit Note
760.0(WTYP) x 450.0(HTYP) 1.0mm
Module Size mm
48.0(DMAX)
Weight 7,500(Max.) g
Pixel Pitch 0.51075(H) x 0.51075(V) mm
Active Display Area 697.6845(H) x 392.256(V) mm
Surface Treatment Haze 44% , Hard-coating (3H)
Display Colors 8 bit - 16.7M colors
Number of Pixels 1366 x 768 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
Luminance of White 600 (Typ.) cd/m2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
Power Supply Voltage VDD GND-0.5 5.5 V (1)
Storage temperature TSTG -20 60 (2)
Glass surface Center TOPR 0 50
temperature (2),(5)
(Operation) T. Uniformity T - 10
Shock ( non - operating ) Snop - 50 G (3)
Vibration ( non - operating ) Vnop - 1.5 G (4)
Note (1) Ta= 25 2 C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta 39 C)
b. Relative Humidity is 90% or less. (Ta > 39 C)
c. No condensation
(3) 11ms, sine wave, one time for X, Y, Z axis
(4) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
Fig. Temperature and Relative humidity range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
(5) Definition of test point
5mm
5mm
1 2
5
LCD Module (Active)
3 4
TOPR : Temperature of the center of the glass surface (Test point 5)
T1 ~ T4 : Temperature of each edge of the glass surface
TMAX : The highest temperature of the glass surface
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment : TOPCON BM-7,SPECTRORADIOMETER SR-3
(Ta = 25 2 C, VDD = 5V, fv = 60Hz, fDCLK = 75MHz, IL = 8.0mArms)
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio (3)
C/R 1500 2000 -
(Center of screen) SR-3
Rising Tr - 10 13
Response (5)
Falling Tf - 6 10 msec
Time BM-7
G-to-G Tg - 8 -
Luminance of White (6)
YL Normal 550 600 - cd/m2
(Center of screen) SR-3
TL,R=0
Rx TU,D=0 0.635
Red
Ry 0.326
Viewing
Gx Angle 0.279
Green
Color Gy 0.591
TYP. TYP. (7),(8)
Chromaticity
Bx -0.03 0.144 +0.03 SR-3
(CIE 1931)
Blue
By 0.061
Wx 0.280
White
Wy 0.290
(7)
Color Gamut - - 72 - %
SR-3
(7)
Color Temperature - - 10,000 - K
SR-3
TL 75 89 -
Hor.
Viewing TR 75 89 - (8)
C/R 10 Degree
Angle TU 75 89 - SR-3
Ver.
TD 75 89 -
Brightness Uniformity (4)
Buni - - 25 %
(9 Points) SR-3
Note (1) Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
Single lamp current : 8.0mA
Environment condition : Ta = 25 2 C
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Photo detector
Photo detector Field
SR-3 1
BM-7 2 Field
SR-3 : 50
BM-7 : 50
TFT - LCD Module
LCD Panel
The center of the screen
Note (2) Definition of test point
228 683 1138
128 Active Area
Test Point
384
640
Note (3) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point of the panel
G max
C/R
G min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Note (4) Definition of 9 points brightness uniformity
( B max B min)
Buni 100
B max
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (5) Definition of Response time : Sum of Tr, Tf
Display data Black (data off) White (data on) White (data off)
TR TF
Optical Instruments
100%
Response
90%
10%
0%
TIME
Note (6) Definition of Luminance of White : Luminance of white at center point
Note (7) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point
Note (8) Definition of Viewing Angle
: Viewing angle range (C/R 10)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
4. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Ta = 25 C 2 C
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply VDD 4.5 5.0 5.5 V (1)
(a) Black - 1000 - mA
Current
of Power (b) White IDD - 1400 - mA (2),(3)
Supply
(c) N-Pattern - 1500 2200 mA
Vsync Frequency fV 48 60 66 Hz
Hsync Frequency fH 44 48 53 kHz
Main Frequency fDCLK 65 75 82 MHz
Rush Current IRUSH - - 4 A (4)
Note (1) The ripple voltage should be controlled under 10% of VDD.
(2) fV = 60Hz, fDCLK = 75MHz, VDD = 5.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) N-Pattern
(4) Measurement Conditions
VDD
100%
90%
10%
GND
TRUSH=470
Rush Current IRUSH can be measured when TRUSH. is 470 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3.2 Back Light Unit
The back light unit contains 12 direct-lighting type CCFTs (Cold Cathode Fluorescent
Tube). The characteristics of lamps are shown in the following tables.
Ta=25 2 C
Item Symbol Min. Typ. Max. Unit Note
Lamp Current IL 3.0 8.0 8.5 mArms
Lamp Voltage VL - 1200 - Vrms
Operating Life Time Hr 50,000 - - Hour (1)
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original value.
[Operating condition : Ta = 25 2 , IL = 8.0mArms, For single lamp only]
HOT 1
HOT 2
HOT 3
HOT 4
LCD
Inverter
Inverter Module
HOT 9
HOT 10
HOT 11
HOT 12
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3.3 Inverter Input Condition & Specification
Specifications
Items Symbol Conditions Unit Note
Min. Typ. Max.
Input
Vin - 22 24 26 V Ta=25
Voltage
Input Vin=24.0V
Iin - - 4.1 A
Current Vdim=3.3V
Lamp After 1 hour
IO,MAX Vdim=3.3V 7.5 8.0 8.5 mArms
Current Warm-up
Vin=24.0V
Frequency FLAMP 60.0 62.5 65.0 kHz
Vdim=3.3V
Backlight ON 2.4 - 5.25
Vin=24.0V V -
On/Off OFF 0 - 0.8
Dimming Max Lum 3.3 - -
VDIM V -
Control Min. Lum - - 0
Note (1) Power Consumption is measured at 600[cd/m2] of luminance condition which is
the typical luminance value. Lamp Current is measured at the point before Lamp.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
4. Input Terminal Pin Assignment
4.1 Input Signal & Power Connector : FI-E30S (JAE)
PIN No. Description PIN No. Description
1 No Connection (Note 1) 16 GND
2 No Connection (Note 1) 17 RxIN3-
3 No Connection (Note 1) 18 RxIN3+
4 GND 19 GND
5 RxIN0- 20 GND
6 RxIN0+ 21 LVDS Option (Note 2)
7 GND 22 No Connection (Note 1)
8 RxIN1- 23 GND
9 RxIN1+ 24 GND
10 GND 25 GND
11 RxIN2- 26 Vdd (5V)
12 RxIN2+ 27 Vdd (5V)
13 GND 28 Vdd (5V)
14 RxCLK- 29 Vdd (5V)
15 RxCLK+ 30 Vdd (5V)
Note (1) No Connection :These pins are only used for SAMSUNG internal purpose.
(2) LVDS Option : High (3.3 V) or Open (N.C) Normal LVDS format
: Low (GND) JEIDA LVDS format
Sequence :On = VDD(T1) LVDS Option Interface Signal(T2)
Off = Interface Signal(T3) LVDS Option VDD
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Note (3) Pin number starts from Right side
PCB
Pin No. 1 Pin No. 30
#1 #30
#1 #30
Fig. Connector diagram
a. All GND pins should be connected together and also be connected to the LCD's
metal chassis.
b. All power input pins should be connected together.
c. All N.C pins should be separated from other signal or power.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
4.2 Inverter Input Pin Configuration
Connector : JST, S14B-PHA-SM-TB(LF)
Pin No. Pin Configuration(FUNCTION)
1 Vin (24V)
2 Vin (24V)
3 Vin (24V)
4 Vin (24V)
5 Vin (24V)
6 GND
7 GND
8 GND
9 GND
10 GND
11 No Connection
12 Backlight On /Off [On: 2.4 ~ 5.25 V, Off: 0 ~ 0.8 V]
13 Dimming Control [0V: Min, 3.3V: Max]
14 No Connection
4.3 Inverter Input Power Sequence
1.1sec [Min]
0.9 Vin
20msec [Min]
Vin (24V)
0.1 Vin
Dimming Control
0.5sec [Min]
0.5sec [Min]
Back Light On/Off 2.4 V
0.5sec [Min] 0.1sec [Min]
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
4.4 LVDS Interface
- LVDS Receiver : Tcon (merged)
- Data Format (JEIDA & Normal) Default LVDS Option : VESA
LVDS pin JEIDA -DATA VESA -DATA
TxIN/RxOUT0 R2 R0
TxIN/RxOUT1 R3 R1
TxIN/RxOUT2 R4 R2
TxOUT/RxIN0 TxIN/RxOUT3 R5 R3
TxIN/RxOUT4 R6 R4
TxIN/RxOUT6 R7 R5
TxIN/RxOUT7 G2 G0
TxIN/RxOUT8 G3 G1
TxIN/RxOUT9 G4 G2
TxIN/RxOUT12 G5 G3
TxOUT/RxIN1 TxIN/RxOUT13 G6 G4
TxIN/RxOUT14 G7 G5
TxIN/RxOUT15 B2 B0
TxIN/RxOUT18 B3 B1
TxIN/RxOUT19 B4 B2
TxIN/RxOUT20 B5 B3
TxIN/RxOUT21 B6 B4
TxOUT/RxIN2 TxIN/RxOUT22 B7 B5
TxIN/RxOUT24 HSYNC HSYNC
TxIN/RxOUT25 VSYNC VSYNC
TxIN/RxOUT26 DEN DEN
TxIN/RxOUT27 R0 R6
TxIN/RxOUT5 R1 R7
TxIN/RxOUT10 G0 G6
TxOUT/RxIN3 TxIN/RxOUT11 G1 G7
TxIN/RxOUT16 B0 B6
TxIN/RxOUT17 B1 B7
TxIN/RxOUT23 RESERVED RESERVED
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
4.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
DATA SIGNAL
GRAY
DISPLAY
COLOR RED GREEN BLUE SCALE
(8bit)
LEVEL
R0 R1 R2 R3 R4 R5 R6 R7 G0 G1 G2 G3 G4 G5 G6 G7 B0 B1 B2 B3 B4 B5 B6 B7
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 -
GREEN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 -
BASIC CYAN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -
COLOR RED 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
MAGENTA 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 -
YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 -
WHITE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R0
1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1
DARK 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R2
GRAY
: : : : : : : : : : : : : : : : : :
SCALE R3~
OF : : : : : : : : : : : : : : : : : : R252
RED
LIGHT 1 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R253
0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R254
RED 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R255
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G0
0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G1
DARK 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G2
GRAY
SCALE : : : : : : : : : : : : : : : : : : G3~
OF : : : : : : : : : : : : : : : : : : G252
GREEN
LIGHT 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G253
0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G254
GREEN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G255
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 B0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 B1
DARK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 B2
GRAY
SCALE : : : : : : : : : : : : : : : : : : B3~
OF : : : : : : : : : : : : : : : : : : B252
BLUE
LIGHT 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 B253
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 B254
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 B255
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
5. Interface Timing
5.1 Timing Parameters (DE only mode)
Signal Item Symbol Min. Typ. Max. Unit Note
Clock 1/TC 65 75 82 MHz -
Hsync Frequency FH 44 48 53 KHz -
Vsync FV 48 60 66 Hz -
Active
Display TVD - 768 - Lines -
Vertical Period
Display Term
Vertical
TV 773 838 1200 Lines -
Total
Active
Display THD - 1366 - Clocks -
Horizontal Period
Display Term
Horizontal
TH 1460 1600 2000 Clocks -
Total
Note) This product is DE only mode. The input of Hsync & Vsync signal does
not have an effect on normal operation.
Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
5.2 Timing diagrams of interface signal (DE only mode)
TV
TVD TVB
DE
TH
THD
DE
DCLK
TC
DATA
SIGNALS
TC
TCH TCL
DCLK 0.5
VCC
TDS TDH
DISPLAY 0.5
DATA
VCC
TES
DE 0.5
VCC
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
5.3 Power ON/OFF Sequence
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
0
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
