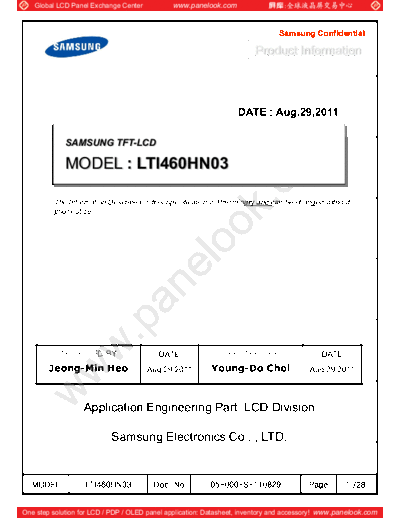

Image preview - the first page of the document
![Panel_SAMSUNG_LTI460HN03_1_[DS]](/pics/5eb05c17aa112.gif)
>> Download Panel_SAMSUNG_LTI460HN03_1_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Samsung Confidential
Product Information
DATE : Aug.29,2011
SAMSUNG TFT-LCD
MODEL : LTI460HN03
The Information Described in this Specification is Preliminary and can be changed without
prior notice
DATE DATE
Jeong-Min Heo Aug.29,2011 Young-Do Choi Aug.29,2011
Application Engineering Part, LCD Division
Samsung Electronics Co . , LTD.
g
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Confidential
Contents
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Application information for DID ( g
pp (Digital Information Display) ---------------------------------- (6)
p y) ( )
3. Optical Characteristics --------------------------------------------------------------------------------- (7)
4. Electrical Characteristics ----------------------------------------------------------------------------- (10)
4.1 TFT LCD Module
4.2 Back Light Unit
4.3
4 3 Inverter Input & Specification
5. Input Terminal Pin Assignment --------------------------------------------------------------------- (13)
5.1 LVDS Connector
5.2 Inverter Input Pin Configuration
5.3 Inverter Input Power Sequence
5.4
5 4 LVDS Interface
5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
6. Interface Timing ---------------------------------------------------------------------------------------- (18)
6.1 Timing Parameters (DE mode)
6.2 Timing Diagrams of interface Signal (DE mode)
6.3 Power ON/OFF Sequence
q
7. Outline Dimension -------------------------------------------------------------------------------------- (21)
8. Packing --------------------------------------------------------------------------------------------------- (23)
9. Marking & Others --------------------------------------------------------------------------------------- (25)
10. General Precaution ----------------------------------------------------------------------------------- (26)
10.1 Handling
10.2 Storage
10.3 Operation
10.4 Operation Condition Guide
10.5
10 5 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Confidential
* Revision History
Rev.
Date Page Summary
No
Jun.
24, 000 all First issued
2011
Aug. 7 Optical characteristic contrast ratio typ. 3000 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
