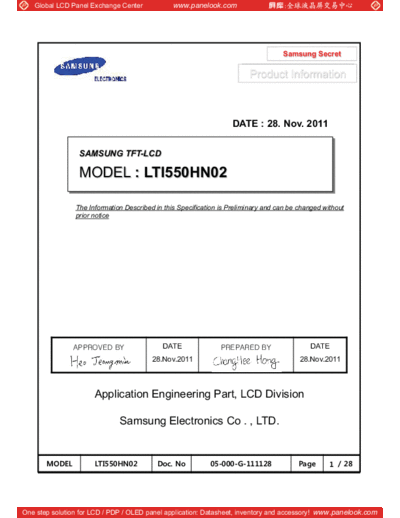

Image preview - the first page of the document
![Panel_SAMSUNG_LTI550HN02_0_[DS]](/pics/5eb05db4dbdf0.gif)
>> Download Panel_SAMSUNG_LTI550HN02_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Product Information
DATE : 28. Nov. 2011
SAMSUNG TFT-LCD
MODEL : LTI550HN02
The Information Described in this Specification is Preliminary and can be changed without
prior notice
DATE DATE
28.Nov.2011 28.Nov.2011
Application Engineering Part, LCD Division
Samsung Electronics Co . , LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Contents
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings ------------------------------------------------------------------------ (5)
2. Application information for DID (Digital Information Display) -------------------------------- (7)
3. Optical Characteristics --------------------------------------------------------------------------------- (8)
4. Electrical Characteristics ------------------------------------------------------------------------------ (10)
4.1 TFT LCD Module
4.2 Back Light Unit
4.3 Inverter Input & Specification
5. Input Terminal Pin Assignment --------------------------------------------------------------------- (13)
5.1 Input Signal & Power
5.2 Inverter Input Pin Configuration
5.3 Inverter Input Power Sequence
5.4 LVDS Interface
5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
6. Interface Timing ---------------------------------------------------------------------------------------- (18)
6.1 Timing Parameters (DE only mode)
6.2 Timing Diagrams of interface Signal (DE only mode)
6.3 Power ON/OFF Sequence
7. Outline Dimension -------------------------------------------------------------------------------------- (21)
8. Packing --------------------------------------------------------------------------------------------------- (23)
9. Marking & Others --------------------------------------------------------------------------------------- (25)
10. General Precaution ----------------------------------------------------------------------------------- (26)
10.1 Handling
10.2 Storage
10.3 Operation
10.4 Operation Condition Guide
10.5 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Revision History
Date Rev. No Page Summary
28.
Nov. 000 all First issued
2011
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
General Description Samsung Secret
Description
LTI550HN02 is a color active matrix liquid crystal display(LCD) that uses amorphous silicon
TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel,
a driver circuit and a back light unit. The resolution of a 55.0" is 1920 x 1080 and this model can
display up to 16.7 Million colors with wide viewing angle of 89 or higher in all directions. This
panel is intended to support applications to provide a excellent performance for Flat Panel Display
such as Home-alone Multimedia TFT-LCD TV, Display terminals for AV application products, and
Digital Information Display (DID).
Features
RoHS compliance (Pb-free)
High contrast ratio & aperture ratio with wide color gamut
SVA(Super Vertical Align) mode
Wide viewing angle ( 89 )
Landscape / Portrait type compatible
High speed response
FHD(1920 x 1080) resolution (16:9)
Low Power consumption
Direct Type 16 CCFLs(Cold Cathode Fluorescent Lamp)
DE(Data Enable) mode
2ch LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
General Information
Items Specification Unit Note
1,286 (H) X 745 (V)
Module Size mm 1.5mm
62.5 (Typ)
Weight 18,000 (Max) g
Pixel Pitch 0.630(H) x 0.630(W) mm
Active Display Area 1209.6(H) X 680.4(V) mm
Surface Treatment Haze 44%, Anti Glare
Display Colors 16.7 Million colors
Number of Pixels 1920 x 1080 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
Luminance of White 450 (Typ.) cd/m2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
Power Supply Voltage VDD 10.8 13.2 V (1)
Storage temperature TSTG -20 65 (2)
Glass Surface
temperature Center Tcenter 0 50 (3)
(Operation)
Shock ( non - operating ) X,Y,Z 30 G (4)
Vibration ( non - operating ) VNOP - 1.5 G (5)
Note (1) Ta= 25 2 C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta 39 C)
b. Relative Humidity is 90% or less. (Ta 39 C)
c. No condensation
(3) 11ms, sine wave, one time for X, Y, Z axis
(4) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
Fig. Temperature and Relative humidity range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
(5) Definition of test point Samsung Secret
5mm
5mm
5
LCD Module (Active)
TCENTER : Temperature of the center of the glass surface (Test point 5)
2. Application information for DID (Digital Information Display)
A long-term display like DID application may cause uneven display including image retention.
To optimize module's lifetime and function, several operating usages are required.
1. Normal operating condition
- Temperature: 20 15
- Humidity: 55 20 %
- Display pattern: moving picture or regular switchover display
Note) Long-term static information image may cause uneven display.
2. Operating usages under abnormal operating condition. Note (1)
a. Ambient condition
- Well-ventilated place is recommended to set up DID system.
b. Power off and screen saver
- Periodical power-off or screen saver is needed after long-term static display. Note (2)
3. Operating usages to protect uneven display due to long-term static information display
a. Suitable operating time for B-DID : under 12 hours a day.
b. Periodical display contents change from static image to moving picture.
- Liquid crystal refresh time is required.
c. Periodical background color and character (image) color change
- Use different colors for background and character (image), respectively.
- Change colors periodically.
d. Avoid combination of background and character with large different luminance.
Note (1) Abnormal condition means every operating condition except normal operating condition.
Note (2) Moving picture or black pattern is strongly recommended for screen saver.
4. Lifetime in this spec is guaranteed only when DID is used under right operating usages.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
3. Optical Characteristics Samsung Secret
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment : TOPCON BM-7, SPECTRORADIOMETER SR-3
(Ta = 25 2 C, VDD=12V, fv= 60Hz, fDCLK = 148.5MHz, Lamp current = 11mA)
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio (3)
C/R 2500 3500 -
(Center of screen) SR-3
Response (5)
G-to-G Tg - 8 16 msec
Time Bm7
Luminance of White (6)
YL 400 450 - cd/m2
(Center of screen) SR-3
Rx Normal 0.637
Red qL,R =0
Ry 0.326
qU,D =0
Gx 0.287
Green
Color Gy Viewing 0.607
TYP. TYP. (7),(8)
Chromaticity Angle
Bx -0.03 0.150 +0.03 SR-3
(CIE 1931)
Blue
By 0.055
Wx 0.280
White
Wy 0.290
Color Gamut - - 72 - % (7)
SR-3
Color Temperature - - 10,000 - K
qL 75 89 -
Hor.
Viewing qR 75 89 - (8)
C/R10 Degree
Angle qU 75 89 - SR-3
Ver.
qD 75 89 -
White Brightness
(4)
Uniformity Buni - - 25 %
SR-3
(9 Points)
Note (1) Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
Single lamp current : 11mA
Environment condition : Ta = 25 2 C
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Photo detector
Photo detector Field
SR-3 2
RD-80S 2 Field
SR-3 : 50
RD-80S : 50
TFT - LCD Module
LCD Panel
The center of the screen
- Definition of test point
320 960 1600
180 Active Area
Test Point
540
900
Note (1) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point of the panel
G max
C/R
G min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
Note (2) Definition of 9 points brightness uniformity (Test pattern : Full White )
( B max B min)
Buni 100
B max
Bmax : Maximum brightness
Bmin : Minimum brightness
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Note (3) Definition of Response time : Average response time of all Gray to Gray
Display data Low Gray High Gray Low Gray
TR TF
Optical Instruments
Response 100%
90%
10%
0%
TIME
Gray to Gray Response Time
Gray
0
31
63
95
127
159
191
223
255
Note (4) Definition of Luminance of White : Luminance of white at center point
Note (5) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point
Note (6) Definition of Viewing Angle
: Viewing angle range (C/R 10)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
4. Electrical Characteristics Samsung Secret
4.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Ta = 25 C 2 C
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply VDD 10.8 12.0 13.2 V (1)
Interface type LVDS - - - -
(a) Black - 0.6 - A
Current of
Power (b) White IDD - 1.2 1.6 A (2),(3)
Supply
(c) Checker - 1.0 1.1 A
Vsync Frequency fV 48 60 62 Hz
Hsync Frequency fH 54 67.5 70 kHz
Main Frequency fDCLK 135.0 148.5 155.0 MHz
Rush Current IRUSH - - 7 A (4)
Note (1) The ripple voltage should be controlled under 10% of VDD.
(2) fV=60Hz, fDCLK = 148.5MHz, VDD = 12.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) Checker
(4) Measurement Conditions
VDD
100%
90%
10%
GND
TRUSH=470
Rush Current IRUSH can be measured when TRUSH. is 470 .
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
4.2 Back Light Unit
The back light unit contains 16 direct-lighting type CCFLs ( Cold Cathode Fluorescent
Lamp). The characteristics of lamps are shown in the following tables.
Ta=25 2 C
Item Symbol Min. Typ. Max. Unit Note
Lamp Current IL 9.0 11.5 12.0 mArms
Lamp Voltage VL 1225 1240 1300 Vrms
Operating Life Time Hr 50,000 - - Hour (1)
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original value.
[Operating condition : Ta = 25 2 ,IL=11mA, For single lamp only. ]
Socket
HOT 1
HOT 2 Connector (Slave)
LCD
Inverter
Module
Connector (Master)
HOT 15
HOT 16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
4.3 Inverter Input Condition & Specification
Specifications
Items Symbol Conditions Unit Note
Min. Typ. Max.
Input
Vin - 22 24 26 V Ta=25
Voltage
Input Vin=24.0V
IRUSH - - 10.7 A Initial turn on
Current Vdim =3.3V
Output After 1 hour
IO,MAX Vdim =3.3 V 10.4 11 11.6 mArms
Current warm-up
Frequency FLAMP Vin=24 47 49 51 kHz -
Backlight ON Vin=24.0 V 2.4 - 5.25
V -
On/Off OFF Vin=24.0 V 0 - 0.8
Dimming Max Lum 3.3 - -
VDIM V -
Control Min. Lum - - 0
Note) Power Consumption is measured when 450[cd/m ] of luminance which is the typical
luminance. Lamp Current is measured at the point before Lamp.
Additional Appendix for Supply Current
Items Symbol Conditions Min. Typ. Max. Unit
Vin = 24V, Dim=3.3V
Iin _ overshoot - 8.3 8.85 A
Input (Within 1hr at BLU on)
Current Vin = 24V, Dim=3.3V
Iin _ saturation - 8.06 8.59 A
(After 1hr Aging)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
5. Input Terminal Pin Assignment
5.1.1 Input Signal & Power Connector : FI-RE51S-HF (JAE/UJU)
PIN No. Description PIN No. Description
1 Vdd (12V) 26 RE[0]P
2 Vdd (12V) 27 RE[1]N
3 Vdd (12V) 28 RE[1]P
4 Vdd (12V) 29 RE[2]N
5 Vdd (12V) 30 Even RE[2]P
6 No Connection 31 LVDS GND
7 GND 32 Signal RECLK-
8 GND 33 RECLK+
9 GND 34 GND
10 RO[0]N 35 RE[3]N
11 RO[0]P 36 RE[3]P
12 RO[1]N 37 No Connection
13 RO[1]P 38 No Connection
14 RO[2]N 39 GND
15 Odd RO[2]P 40 No Connection
LVDS
16 Signal GND 41 No Connection
17 ROCLK- 42 No Connection
18 ROCLK+ 43 No Connection
19 GND 44 No Connection
20 RO[3]N 45 No Connection
21 RO[3]P 46 No Connection
22 No Connection 47 No Connection
23 No Connection 48 No Connection
24 GND 49 No Connection
25 Even LVDS RE[0]N 50 No Connection
51 No Connection
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
Note) Pin number starts from Right side
PCB
Pin No. 1 Pin No. 51
#1 #51
#1 #51
Fig. Connector diagram
a. All GND pins should be connected together and also be connected to the LCD's
metal chassis.
b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
5.2. Inverter Input Pin Configuration
Connector : 20022WR-14B1 (Yeon-ho)
Pin No. Pin Configuration(FUNCTION)
1 Vin (24V)
2 Vin (24V)
3 Vin (24V)
4 Vin (24V)
5 Vin (24V)
6 GND
7 GND
8 GND
9 GND
10 GND
11 No Connection
12 Backlight On /Off [On: 2.4 ~ 5.25V, Off: 0 ~ 0.8V]
13 Internal Dimming control [0V: Min, 3.3V: Max]
14 No Connection
5.3 Inverter Input Power Sequence
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
5.4 LVDS Interface Samsung Secret
- LVDS Receiver : Tcon (merged)
- Data Format (JEIDA )
LVDS pin JEIDA -DATA
TxIN/RxOUT0 R4
TxIN/RxOUT1 R5
TxIN/RxOUT2 R6
TxOUT/RxIN0 TxIN/RxOUT3 R7
TxIN/RxOUT4 R8
TxIN/RxOUT6 R9
TxIN/RxOUT7 G4
TxIN/RxOUT8 G5
TxIN/RxOUT9 G6
TxIN/RxOUT12 G7
TxOUT/RxIN1 TxIN/RxOUT13 G8
TxIN/RxOUT14 G9
TxIN/RxOUT15 B4
TxIN/RxOUT18 B5
TxIN/RxOUT19 B6
TxIN/RxOUT20 B7
TxIN/RxOUT21 B8
TxOUT/RxIN2 TxIN/RxOUT22 B9
TxIN/RxOUT24 HSYNC
TxIN/RxOUT25 VSYNC
TxIN/RxOUT26 DEN
TxIN/RxOUT27 R2
TxIN/RxOUT5 R3
TxIN/RxOUT10 G2
TxOUT/RxIN3 TxIN/RxOUT11 G3
TxIN/RxOUT16 B2
TxIN/RxOUT17 B3
TxIN/RxOUT23 RESERVED
TxIN/RxOUT28 R0
TxIN/RxOUT29 R1
TxIN/RxOUT30 G0
TxOUT/RxIN4 TxIN/RxOUT31 G1
TxIN/RxOUT32 B0
TxIN/RxOUT33 B1
TxIN/RxOUT34 RESERVED
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
DATA SIGNAL
GRAY
DISPLAY
COLOR RED GREEN BLUE SCALE
(8bit)
LEVEL
R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 B0 B1 B2 B3 B4 B5 B6 B7 B8 B9
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 -
GREEN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 -
CYAN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -
BASIC
COLOR
RED 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
MAGENTA 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 -
YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 -
WHITE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R0
1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1
DARK 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R2
GRAY
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
SCALE R3~
OF R1020
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
RED
LIGHT 1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1021
0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1022
RED 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1023
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G0
0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G1
DARK 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G2
GRAY
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
SCALE G3~
OF G1020
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
GREEN
LIGHT 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1021
0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1022
GREEN 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 G1023
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 B0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 B1
DARK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 B2
GRAY
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
SCALE B3~
OF B1020
: : : : : : : : : : : : : : : : : : : : : : : : : : : : : :
BLUE
LIGHT 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 1 1 B1021
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 B1022
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 B1023
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
6. Interface Timing
6.1 Timing Parameters ( DE mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
Clock 1/TC - 148.5 - MHz -
Hsync Frequency FH 48 67.5 72 KHz -
Vsync FV 45 60 65 Hz -
Active
Display TVD - 1080 - Lines -
Vertical Period
Display Term
Vertical
TV 1092 1125 1158 Lines -
Total
Active
Display THD - 1920 - Clocks -
Horizontal Period
Display Term
Horizontal
TH 2090 2200 2350 clocks -
Total
Note) This product is DE mode.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
6.2 Timing diagrams of interface signal ( DE mode )
TV
TVD TVB
DE
TH
THD
DE
DCLK
TC
DATA
SIGNALS
TC
TCH TCL
DCLK 0.5
VCC
TDS TDH
DISPLAY 0.5
DATA
VCC
TES
DE 0.5
VCC
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
6.3 Power ON/OFF Sequence Samsung Secret
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
0msec. Packing-Pallet Box Material : Paper
1. Pallet weight = 10 kg
Pallet 1Box / Pallet
>. Pallet Material : HDPE
Packing Direction Vertical
Total Pallet Size H x V x height 1475mm(H) x 1150mm(V) x 910mm(height)
Total Pallet Pallet(10kg) + Module (18*12 kg) + Pallet-
241 kg
Weight BOX(15kg)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Samsung Secret
8.3 Packing Storage condition
ITEM Unit Min. Max.
Storage Temperature ( ) 5 40
Storage Humidity (%rH) 35 75
Storage life 12 months
- The storage room should provide good ventilation and temperature control.
- Products should not be placed on the floor, but on the Pallet away from
a wall.
- Prevent products from direct sunlight, moisture nor water; Be cautious of
a build up of condensation.
Storage Condition
- Avoid other hazardous environment while storing goods.
- If products delivered or kept in conditions of over the storage period of 3
months, the recommended temperature or humidity range,
we recommend you leave them at a temperature of 20 and a humidity
of 50% for 24 hours.
8.4 Packing long-term Storage guide
Long ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
