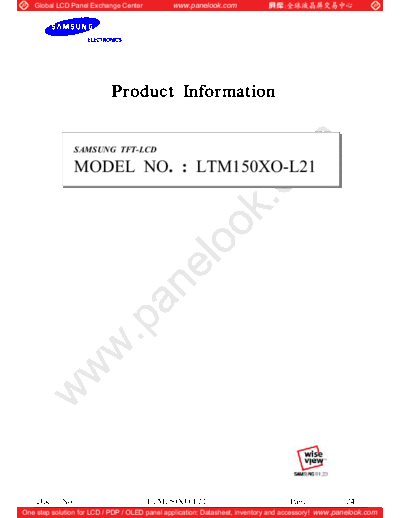

Image preview - the first page of the document
![Panel_SAMSUNG_LTM150XO-L21_0_[DS]](/pics/5eb063068ad09.gif)
>> Download Panel_SAMSUNG_LTM150XO-L21_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Product Information
SAMSUNG TFT-LCD
MODEL NO. : LTM150XO-L21
Doc . No LTM150XO-L21 Page 1 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Contents
General Description -------------------------- (4)
1. Absolute Maximum Ratings -------------------------- (5)
1.1 Absolute ratings of environment
1.2 Electrical Absolute Ratings
2. Optical Characteristics -------------------------- (6)
3. Electrical Characteristics -------------------------- (10)
3.1 TFT LCD Module
3.2 Back-light Unit
4. Block Diagram -------------------------- (13)
4.1 TFT LCD Module
4.2 Back-light Unit
5. Input Terminal Pin Assignment -------------------------- (14)
5.1 Input Signal & Power
5.2 LVDS Interface
5.3 Back-light Unit
5.4 Pixel Format
5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
6. Interface Timing -------------------------- (18)
6.1 Timing Parameters (DE only mode)
6.2 Timing Diagrams of Interface Signal (DE only mode)
6.3 Power ON/OFF Sequence
7. Outline Dimension -------------------------- (21)
8 General Precaution -------------------------- (23)
8.1 Handling
8.2 Storage
8.3 Operation
8.4 Others
Doc . No LTM150XO-L21 Page 2 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
General Description
* Description
LTM150XO-L01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFTs as switching devices. This model is composed of
a TFT LCD panel, a driver circuit and a back-light system. The resolution of a 15.0" contains
1024 x 768 pixels and can display up to 16.2 millions colors.
* Features
- High contrast ratio, high aperture structure
- TN (Twisted Nematic) mode
- Wide viewing angle
- High speed response
- XGA (1024 x 768 pixels) resolution
- Low power consumption
- 2 CCFTs (Cold Cathode Fluorescent Tube)
- DE (Data Enable) mode
- LVDS (Low Voltage Differential Signaling) interface (1pixel/clock)
- Compact Size Design
- Pb-free configuration
- RoHS compliance
* Applications
Desktop monitors
Display terminals for AV application products
Monitors for industrial machine
* General information
Items Specification Unit Note
Display area 304.128(H) x 228.096(V) mm
Driver element a-Si TFT active matrix
Display colors 16.2M colors
Number of pixels 1024 x 768 pixel
Pixel arrangement RGB vertical stripe
Pixel pitch 0.297(H) x 0.297(W) mm
Display mode Normally White
Surface treatment Haze 25%, Hard-coating (3H)
Doc . No LTM150XO-L21 Page 3 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
* Mechanical information
Item Min. Typ. Max. Note
Horizontal(H) 326.0 326.5 327.0 mm
Module
Vertical(V) 253.0 253.5 254.0 mm
size
Depth(D) - - 12.0 mm
Weight - - 1,050 g
1. Absolute Maximum Ratings
1.1 Absolute ratings of environment
Item Symbol Min. Max. Unit Note
Storage temperature TSTG -25 60 (1)
Operating temperature
TOPR 0 50 (1)
(Glass surface temperature)
Shock ( non - operating ) Snop - 50 G (2),(4)
Vibration ( non - operating ) Vnop - 1.5 G (3),(4)
Note (1) Temperature and relative humidity range are shown in the figure below.
