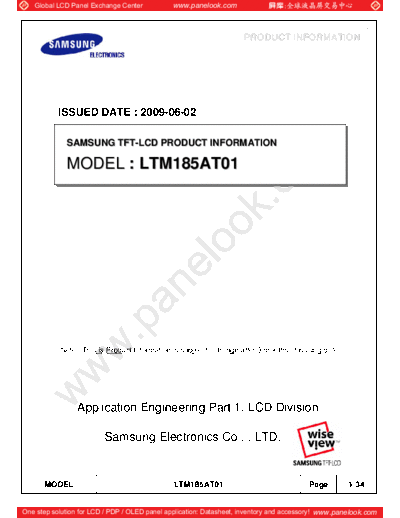

Image preview - the first page of the document
![Panel_SAMSUNG_LTM185AT01_1_[DS]](/pics/5eb063751e6aa.gif)
>> Download Panel_SAMSUNG_LTM185AT01_1_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
PRODUCT INFORMATION
ISSUED DATE : 2009-06-02
SAMSUNG TFT-LCD PRODUCT INFORMATION
SAMSUNG TFT-LCD PRODUCT INFORMATION
MODEL : LTM185AT01
MODEL : LTM185AT01
Note : This is Product Information is subject to change after 3 months of issuing date.
Application Engineering Part 1, LCD Division
Samsung Electronics Co . , LTD.
MODEL LTM185AT01 Page 1/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
PRODUCT INFORMATION
Contents
General Description --------------------------------------------------------------------------------- (3)
1. Absolute Maximum Ratings ------------------------------------------------------------------- (4)
2. Optical Characteristics --------------------------------------------------------------------------- (6)
3. Electrical Characteristics ---------------------------------------------------------------------- (11)
3.1 TFT LCD Module
3.2 Back Light Unit
4. Block Diagram ----------------------------------------------------------------------------------- (16)
4.1 TFT LCD Module
4.2 Back Light Unit
5. Input Terminal Pin Assignment -------------------------------------------------------------- (17)
5.1 Input Signal & Power
5.2 LVDS Interface
5.3 Back Light Unit
5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color
6. Interface Timing --------------------------------------------------------------------------------- (26)
6.1 Timing Parameters (DE only mode)
6.2 Timing Diagrams of interface Signal (DE only mode)
6.3 Power ON/OFF Sequence
6.4 LVDS Input Characteristics
6.5 VDD Power Dip Condition
7. Outline Dimension ------------------------------------------------------------------------------- (30)
8. General Precaution ------------------------------------------------------------------------------ (32)
8.1 Handling
8.2 Storage
8.3 Operation
8.4 Others
MODEL LTM185AT01 Page 2/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
General Description PRODUCT INFORMATION
Description
LTM185AT01 product is a color active matrix liquid crystal display (LCD) that uses
amorphous silicon TFT (Thin Film Transistor) as switching components. This model is
composed of a TFT LCD panel, a driver circuit and a back light unit. The resolution of a
18.5" is 1366 X 768 and this model can display up to 16.7 millions colors.
Features
High contrast ratio, high aperture structure
TN (Twisted Nematic) mode
Wide Viewing Angle
High speed response
HD (1366 x 768 pixels) resolution
Low power consumption
2 CCFLs (Cold Cathode Fluorescent Lamp)
DE (Data Enable) only mode
LVDS (Low Voltage Differential Signaling) interface (1pixel/clock)
Compact Size Design
RoHS compliance
TCO'03 compliance
Applications
Workstation & desktop monitors
Display terminals for AV application products
Monitors for industrial machine
* If the module is used to other applications besides the above, please contact SEC
in advance.
General Information
Items Specification Unit Note
Pixel Pitch 0.300(H) x 0.300(W) mm
Active Display Area 409.8(H) x 230.4(V) mm
Surface Treatment Haze 25%, Hard-coating(3H)
Display Colors 16.7M ( 6bit Hi-FRC ) colors
Number of Pixels 1366 x 768 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally White
Luminance of White 250(Typ.) cd/
MODEL LTM185AT01 Page 3/34
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
PRODUCT INFORMATION
Mechanical Information
Item Min. Typ. Max. Unit Note
Horizontal (H) 429.87 430.37 430.87 mm
Module
Vertical (V) 254.1 254.6 255.1 mm w/o inverter ass'y
size
Depth (D) - - 16.5 mm
Weight - - 2,100 g LCD module only
