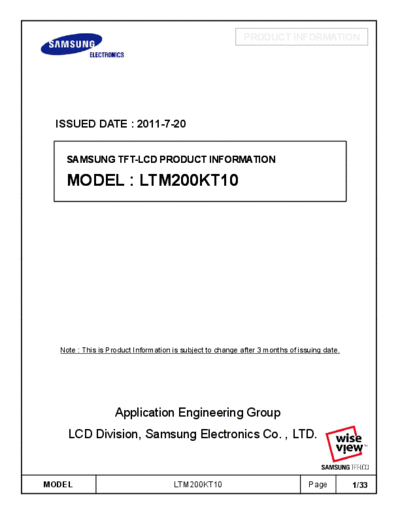

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTM200KT10_2_[DS] documenatation <<

Text preview - extract from the document

                                                           PRODUCT INFORMATION




  ISSUED DATE : 2011-7-20


   SAMSUNG TFT-LCD PRODUCT INFORMATION
           TFT-

   MODEL : LTM200KT10




  Note : This is Product Information is subject to change after 3 months of issuing date.




                   Application Engineering Group
    LCD Division, Samsung Electronics Co. , LTD.



MODEL                                LTM200KT10                                Page         1/33
Contents                                                              PRODUCT INFORMATION

General Description --------------------------------------------------------------------------------- (3)

1. Absolute Maximum Ratings ------------------------------------------------------------------- (4)

2. Optical Characteristics -------------------------------------------------------------------------- (6)

3. Electrical Characteristics ------------------------------------------------------------------------(11)
   3.1
   3 1 TFT LCD Module
   3.2 Back Light Unit

4. Block Diagram ----------------------------------------------------------------------------------- (15)
   4.1 TFT LCD Module
   4.2 Back Light Unit

5. Input Terminal Pin Assignment -------------------------------------------------------------- (16)
   5.1 Input Signal & Power
   5.2 LVDS Interface
   5.3 Back Light Unit
   5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color
         p     g               p y                    y

6. Interface Timing --------------------------------------------------------------------------------- (25)
   6.1 Timing Parameters (DE only mode)
   6.2 Timing Diagrams of interface Signal (DE only mode)
   6.3 Power ON/OFF Sequence
   6.4
   6 4 VDD Power Dip Condition

7. Outline Dimension ------------------------------------------------------------------------------- (29)

8. General Precaution ------------------------------------------------------------------------------ (31)
   8.1 Handling
   8.2 Storage
   8 2 St
   8.3 Operation
   8.4 Operation Condition Guide
   8.5 Others




 MODEL                                        LTM200KT10                                     Page            2/33
General Description                                              PRODUCT INFORMATION
 Description
   LTM200KT10 is a color active matrix liquid crystal display (LCD) that uses amorphous
   silicon TFT (Thin Film Transistor) as switching components This model is composed of
                                                   components.
   a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 20" is 1600 x
   900 and this model can display up to 16.7 millions colors.

 Features
    High contrast ratio, high aperture structure
    High speed response
    20"W HD+ (1,600 x 900 pixels) resolution
    White LED Edge slim Backlight ( 1-side )
    DE (Data Enable) only mode
    LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
    Compact Size Design
    RoHS compliance
   TCO 5.1 compliances
        ( Except for 2.2 response time; this product does not have over driving function.
          It is recommended to support in system level )
     Halogen Free

  Applications
    Multi-functional monitor products
    Display terminals for AV application products
    Monitors for industrial machine
     * If the module is used to other applications besides the above, please contact SEC
       in advance.
General Information
              Items                              Specification                     Unit     Note
           Pixel Pitch                      276.75(H) x 276.75(W)                   um
       Active Display Area                  442.8(H) x 249.075(V)                  mm
       Surface Treatment                Haze 25% , Hard coating (3H)
         Display Colors                             16.7M                         colors
        Number of Pixels                          1,600 x 900                      pixel
        Pixel Arrangement                     RGB vertical stripe
          Display Mode                          Normally White
       Luminance of White                          250(Typ.)                       cd/



   MODEL                                   LTM200KT10                                Page          3/33
                                                                        PRODUCT INFORMATION
 Mechanical Information

          Item              Min.
                            Min          Typ
                                         Typ.     Max.
                                                  Max     Unit                    Note

          Horizontal (H)    462.3        462.8    463.3   mm
Module                                                                              -
           Vertical (V)     271.5        272.0    272.5   mm
 size
            Depth (D)           -          -       10.3   mm                        -

         Weight                 -          -      1700       g               LCD module only


  Note (1) Mechanical tolerance is
