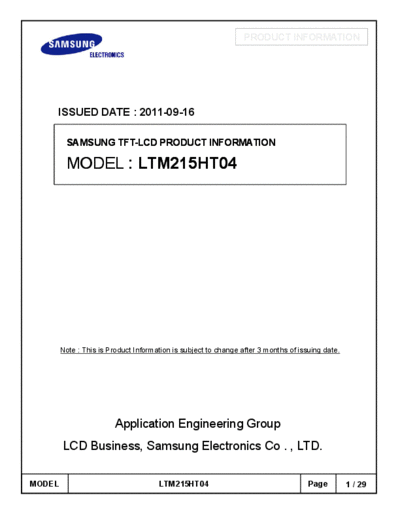

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTM215HT04_0_[DS] documenatation <<

Text preview - extract from the document

                                                                 PRODUCT INFORMATION




    ISSUED DATE : 2011-09-16

         SAMSUNG TFT-LCD PRODUCT INFORMATION
                 TFT-

         MODEL : LTM215HT04




        Note : This is Product Information is subject to change after 3 months of issuing date.




                         Application Engineering Group
        LCD Business, S
            B i       Samsung El t i C . , LTD
                              Electronics Co LTD.


MODEL                                 LTM215HT04                                     Page         1 / 29
                                                                       PRODUCT INFORMATION

 Contents

 General Description --------------------------------------------------------------------------------- (3)

 1. Absolute Maximum Ratings ------------------------------------------------------------------- (4)

 2. Optical Characteristics -------------------------------------------------------------------------- (6)

 3. Electrical Characteristics ------------------------------------------------------------------------(11)
 3 El t i l Ch       t i ti                                                                            (11)
    3.1 TFT LCD Module
    3.2 Back Light Unit

 4. Block Diagram ----------------------------------------------------------------------------------- (15)
    4.1 TFT LCD Module
    4.2
    4 2 Back Light Unit

 5. Input Terminal Pin Assignment -------------------------------------------------------------- (16)
    5.1 Input Signal & Power
    5.2 LVDS Interface
    5.3 Back Light Unit
    5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color

 6. Interface Timing --------------------------------------------------------------------------------- (21)
    6.1 Timing Parameters (DE only mode)
    6.2 Timing Diagrams of interface Signal (DE only mode)
    6.3 Power ON/OFF Sequence
    6.4 VDD Power Dip Condition

 7. Outline Dimension ------------------------------------------------------------------------------- (25)

 8. General Precaution ------------------------------------------------------------------------------ (27)
    8.1 Handling
    8.2 Storage
    8.3 Operation
    83O       ti
    8.4 Operation Condition Guide
    8.5 Others




MODEL                                     LTM215HT04                                          Page            2 / 29
General Description                                            PRODUCT INFORMATION

 Description
    LTM215HT04 is a color active matrix liquid crystal display (LCD) that uses amorphous
   silicon TFT (Thin Film Transistor) as switching components. This model is composed of
   a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 21.5" is 1920
   x 1080 and this model can display up to 16.7 millions colors.

 Features
     High contrast ratio, high aperture structure
     High speed response
     FHD(1920 x 1080 pixels) resolution
     White LED Edge slim Backlight (Vertical)
     DE (Data Enable) only mode
     LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
     RoHS Halogen Free
     RoHS,
     TCO 5.1 compliance
     (Except for 2.2 Response time; this product does not have over driving function.
      It is recommended to support in system level.)

  Applications
    Workstation & desktop monitors
    Display terminals for AV application products
    Monitors for industrial machine
    * If the module is used to other applications besides the above, please contact SEC
      in advance.


General Information
            Items                          Specification                  Unit             Note
         Pixel Pitch                  248.25(H) x 248.25(W)                um
     Active Display Area               476.64(H) x 268.11(V)              mm
     Surface Treatment            Haze (25%), Hard
