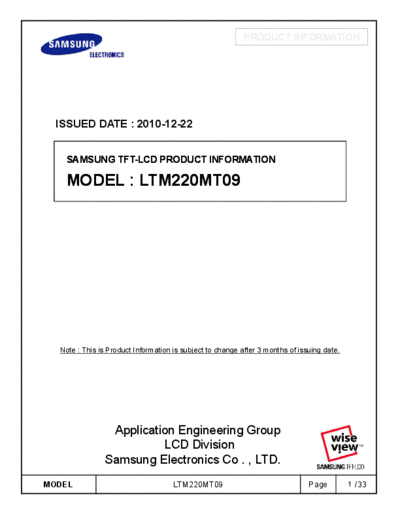

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTM220MT09_0_[DS] documenatation <<

Text preview - extract from the document

                                                           PRODUCT INFORMATION




  ISSUED DATE : 2010-12-22


   SAMSUNG TFT-LCD PRODUCT INFORMATION
           TFT-

   MODEL : LTM220MT09




  Note : This is Product Information is subject to change after 3 months of issuing date.




                Application Engineering Group
                         LCD Di i i
                              Division
               Samsung Electronics Co . , LTD.
MODEL                                LTM220MT09                                Page         1 /33
Contents                                                              PRODUCT INFORMATION


General Description --------------------------------------------------------------------------------- (3)

1. Absolute Maximum Ratings ------------------------------------------------------------------- (4)

2. Optical Characteristics --------------------------------------------------------------------------- (6)

3. Electrical Characteristics ---------------------------------------------------------------------- (11)
   3.1
   3 1 TFT LCD Module
   3.2 Back Light Unit

4. Block Diagram ----------------------------------------------------------------------------------- (15)
   4.1 TFT LCD Module
   4.2 Back Light Unit

5. Input Terminal Pin Assignment -------------------------------------------------------------- (16)
   5.1 Input Signal & Power
   5.2 LVDS Interface(1)
   5.3 LVDS Interface(2)
   5.4 Back Light Unit
   5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color

6. Interface Timing --------------------------------------------------------------------------------- (25)
   6.1 Timing Parameters (DE only mode)
   6.2 Timing Diagrams of interface Signal (DE only mode)
   6.3 Power ON/OFF Sequence
   6.4 VDD Power Dip Condition

7. Outline Dimension ------------------------------------------------------------------------------- (29)

8. General Precaution ------------------------------------------------------------------------------ (31)
   8.1 Handling
   8.2 Storage
   8.3
   8 3 Operation
   8.4 Operation Condition Guide
   8.5 Others




 MODEL                                        LTM220MT09                                     Page            2 /33
General Description                                            PRODUCT INFORMATION

 Description

   LTM220MT09 i a color active matrix li id crystal di l (LCD) th t uses amorphous
                  is     l    ti      t i liquid    t l display       that              h
   silicon TFT (Thin Film Transistor) as switching components. This model is composed of
   a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 22" is 1680 x
   1050 and this model can display up to 16.7 millions colors.

 Features
     High contrast ratio high aperture structure
                   ratio,
     High speed response
     FHD (1,920 x 1,200 pixels) resolution
     White LED Edge slim Backlight (1-side)
     DE (Data Enable) only mode
     LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
     RoHS Halogen Free
     RoHS,
     TCO 03' compliance




  Applications
     Workstation & desktop monitors
     Display terminals for AV application products
     Monitors for industrial machine
    * If the module is used to other applications besides the above, please contact SEC
      in advance.
General Information
                Items                          Specification                 Unit     Note
             Pixel Pitch                   0.282(H) x 0.282(W)               mm
        Active Display Area                473.76(H) x 296.1(V)              mm
        Surface Treatment              Haze 25% Hard coating ( )
                                                           g (3H)
            Display Colors                   16.7M (Hi-FRC)                 colors
         Number of Pixels                     1,680 x 1,050                  pixel
         Pixel Arrangement                  RGB vertical stripe
            Display Mode                     Normally White
        Luminance of White                      250(Typ.)                    cd/



   MODEL                               LTM220MT09                             Page        3 /33
                                                                  PRODUCT INFORMATION
Mechanical Information

               Item
               It                  Min.
                                   Mi        Typ.
                                             T           Max.
                                                         M            Unit
                                                                      U it              Note
                                                                                        N t

               Horizontal (H)     493.2     493.7        494.2        mm
    Module
                 Vertical (V)     319.6     320.1        320.6        mm          w/o inverter ass'y
     size
                 Depth (D)             -      -          10.7         mm

              Weight                   -      -          1,900          g         LCD module only


 Note (1) Mechanical tolerance is
