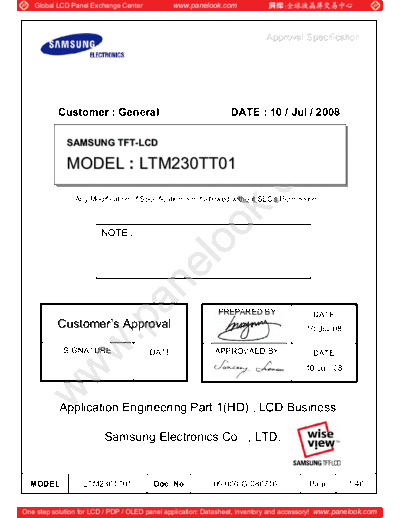

Image preview - the first page of the document
![Panel_SAMSUNG_LTM230TT01_0_[DS]](/pics/5eb06868ab87c.gif)
>> Download Panel_SAMSUNG_LTM230TT01_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Approval Specification
Customer : General DATE : 10 / Jul / 2008
SAMSUNG TFT-LCD
SAMSUNG TFT-LCD
MODEL : LTM230TT01
MODEL : LTM230TT01
Any Modification of Specification is not allowed without SEC's Permission.
NOTE :
PREPARED BY DATE
Customer's Approval 10/Jul/'08
SIGNATURE DATE APPROVAED BY DATE
10/Jul /'08
Application Engineering Part 1(HD) , LCD Business
Samsung Electronics Co . , LTD.
MODEL LTM230TT01 Doc. No 05-000-G-080710 Page 1/40
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Contents Approval Specification
Revision History -------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings ------------------------------------------------------------------- (5)
2. Optical Characteristics -------------------------------------------------------------------------- (7)
3. Electrical Characteristics ------------------------------------------------------------------------(12)
3.1 TFT LCD Module
3.2 Back Light Unit
4. Block Diagram ----------------------------------------------------------------------------------- (17)
4.1 TFT LCD Module
4.2 Back Light Unit
5. Input Terminal Pin Assignment -------------------------------------------------------------- (18)
5.1 Input Signal & Power
5.2 LVDS Interface
5.3 Input Signals, Basic Display Colors and Gray Scale of Each Color
6. Interface Timing --------------------------------------------------------------------------------- (26)
6.1 Timing Parameters (DE only mode)
6.2 Timing Diagrams of interface Signal (DE only mode)
6.3 Power ON/OFF Sequence
6.4 VDD Power Dip Condition
7. Outline Dimension ------------------------------------------------------------------------------- (31)
8. Reliability Test ------------------------------------------------------------------------------------ (34)
9. Packing -------------------------------------------------------------------------------------------- (35)
10. Marking & Others ------------------------------------------------------------------------------- (36)
11. General Precaution ---------------------------------------------------------------------------- (38)
11.1 Handling
11.2 Storage
11.3 Operation
11.4 Others
MODEL LTM230TT01 Doc. No 05-000-G-080710 Page 2/40
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
* Revision History Approval Specification
Rev.
Date Page Summary
No
Jul. 10, 000 all Approval specification of LTM230TT01 model was issued first.
2008
MODEL LTM230TT01 Doc. No 05-000-G-080710 Page 3/40
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
General Description Approval Specification
Description
LTM230TT01 is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT (Thin Film Transistor) as switching components. This model is composed of
a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 23" is 2048 x
1152 and this model can display up to 16.7 millions colors.
Features
High contrast ratio, high aperture structure
TN (Twisted Nematic) mode
Wide Viewing Angle
High speed response
WDXGA (2048 x 1152 pixels) resolution
Low power consumption
DE (Data Enable) only mode
LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
Compact Size Design
RoHS, TCO 03' compliance
Applications
Workstation & desktop monitors
Display terminals for AV application products
Monitors for industrial machine
* If the module is used to other applications besides the above, please contact SEC
in advance.
General Information
Items Specification Unit Note
Pixel Pitch 0.249(H) x 0.249(W) mm
Active Display Area 509.952(H) x 286.848(V) mm
Surface Treatment Haze 25% , Hard coating (3H)
Display Colors 16.7M (Hi-FRC) colors
Number of Pixels 2,048 x 1,152 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally White
Luminance of White 300(Typ.) cd/
MODEL LTM230TT01 Doc. No 05-000-G-080710 Page 4/40
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Approval Specification
Mechanical Information
Item Min. Typ. Max. Unit Note
Horizontal (H) 533.5 534.0 534.5 mm
Module
Vertical (V) 311.2 311.7 312.2 mm w/o inverter ass'y
size
Depth (D) - - 18.9 mm
Weight - - 3,050 g LCD module only
Note (1) Mechanical tolerance is ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
