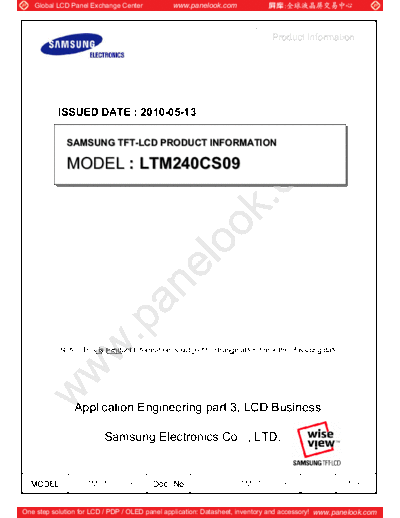

Image preview - the first page of the document
![Panel_SAMSUNG_LTM240CS09_0_[DS]](/pics/5eb068cbea84b.gif)
>> Download Panel_SAMSUNG_LTM240CS09_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Product Information
ISSUED DATE : 2010-05-13
SAMSUNG TFT-LCD PRODUCT INFORMATION
SAMSUNG TFT-LCD PRODUCT INFORMATION
MODEL : LTM240CS09
MODEL : LTM240CS09
Note : This is Product Information is subject to change after 3 months of issuing date.
Application Engineering part 3, LCD Business
Samsung Electronics Co . , LTD.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Product Information
Contents
General Description --------------------------------------------------------------------------------- (3)
1. Absolute Maximum Ratings ------------------------------------------------------------------- (4)
2. Optical Characteristics --------------------------------------------------------------------------- (6)
3. Electrical Characteristics ---------------------------------------------------------------------- (12)
3.1 TFT LCD Module
3.2 Back Light Unit
4. Block Diagram ----------------------------------------------------------------------------------- (17)
4.1 TFT LCD Module
4.2 Back Light Unit
5. Input Terminal Pin Assignment -------------------------------------------------------------- (18)
5.1 Input Signal & Power & Inverter
5.2 LVDS Interface
5.3 LVDS Interface(2)
5.4 Back Light Unit
5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
6. Interface Timing --------------------------------------------------------------------------------- (27)
6.1 Timing Parameters (DE only mode)
6.2 Timing Diagrams of interface Signal (DE only mode)
6.3 Power ON/OFF Sequence
6.4 Inerter Power Sequence
6.5 VDD Power Dip Condition
7. Outline Dimension ------------------------------------------------------------------------------- (32)
8. General Precaution ------------------------------------------------------------------------------ (34)
8.1 Handling
8.2 Storage
8.3 Operation
8.4 Others
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
General Description Product Information
Description
LTM240CS09 is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT (Thin Film Transistor) as switching components. This model is composed of
a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 24.0" is 1920
x 1200 and this model can display up to 16.7 millions colors.
Features
High contrast ratio, high aperture structure, high color gamut
S-PVA (Super Patterned Vertical Alignment) mode
Wide viewing angle
High speed response
WUXGA (1920 x 1200 pixels) resolution
Low power consumption
U-type 6 CCFTs (Cold Cathod Fluorescent Tube)
DE (Data Enable) mode
LVDS (Low Voltage differential Signaling) interface (2pixel/clock)
RoHS, TCO03 compliance
Pb-free compliance
Applications
Workstation & desktop monitors
Display terminals for AV application products
Monitors for industrial machine
* If the module is used to other applications besides the above, please contact SEC
in advance.
General Information
Items Specification Unit Note
Pixel Pitch 0.270(H) x 0.270(W) mm
Active Display Area 518.4(H) x 324.0(V) mm
Surface Treatment Haze 50% , Hard-coating (3H)
Display Colors 16.7M (true 8-bit) colors
Number of Pixels 1920 x 1200 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
Luminance of White 400(Typ.) cd/
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Product Information
Mechanical Information
Item Min. Typ. Max. Unit Note
Horizontal (H) 545.9 546.4 546.9 mm
Module w/o inverter ass'y
Vertical (V) 351.5 352.0 352.5 mm
size
Depth (D) - - 36.3 mm
- - 3250 g LCD module only
Weight
- - - g w/ Inverter assembly
Note (1) Mechanical tolerance is 0.5mm unless there is a special comment.
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
Power Supply Voltage VDD GND-0.5 6.5 V
Data Signal Vsig - 5 V
Storage temperature TSTG -25 60 (1)
Glass surface temperature
TOPR 0 60
(Operation condition)
Shock ( non - operating ) Snop - 50 G (2)
Vibration ( non - operating ) Vnop - 1.5 G (3)
Note (1) Ta= 25 2 C
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Product Information
(1) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta 39 C)
b. Maximum wet-bulb temperature at 39 C or less. (Ta 39 C)
c. No condensation
(2) 11ms, sine wave, one time for X, Y, Z axis
(3) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
(39,90)
(50,50.4)
(60,27.7)
(-25,5)
Fig. Temperature and Relative humidity range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
2. Optical Characteristics Product Information
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment : TOPCON BM-7,SPECTRORADIOMETER SR-3
(Ta = 25 2 C, VDD=5V, fv= 60Hz, fDCLK=77MHz, IL = 6.0mArms)
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio (3)
C/R 700 1,000 -
(Center of screen) SR-3
Tr - 11 13
(5)
On/Off msec
Response BM-7
Tf - 5 7
Time
G-To-G TG-G,AVG - 6 - msec BM-7
Luminance of White (6)
YL 300 400 - cd/m2
(Center of screen) SR-3
Rx 0.659
Red
Ry 0.327
Gx Normal 0.217
Green
Color L,R=0
Gy 0.681
Chromaticity U,D=0 -0.030 +0.030
(CIE 1931) Bx 0.147
Blue Viewing
By Angle 0.073
Wx 0.313
White
Wy 0.329 (7),(8)
Ru' - 0.470 - SR-3
Red
Rv' - 0.525 -
Gu' - 0.081 -
Color Green
Chromaticity Gv' - 0.571 -
(CIE 1976) Bu' - 0.164 -
Blue
Bv' - 0.183 -
Wu' - 0.198 -
White
Wv' - 0.468 -
C.G.L White u'v' - - 0.02 (9)
* C.G.L : Color Grayscale Linearity (continue to the next page)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Product Information
Item Symbol Condition Min. Typ. Max. Unit Note
Color Gamut - - 92 - %
Color Temperature - - 6500 - K
L 80 89 -
Hor.
Viewing R 80 89 - (8)
CR 10 Degrees
Angle 80 89 - SR-3
U
Ver.
D 80 89 -
L - 75 -
Hor.
Viewing R - 75 - (8)
CR 100 Degrees
Angle - 65 - SR-3
U
Ver.
D - 65 -
Brightness Uniformity (4)
Buni - - 25 %
(9 Points) SR-3
Note (1) Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
30min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
Single lamp current : 6.0mA
Environment condition : Ta = 25 2 C
Photo detector
Photo detector Field
SR-3 1
Field
BM-7 2
SR-3 : 50
BM-7 : 50
TFT - LCD Module
LCD Panel
The center of the screen
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Product Information
Note (2) Definition of test point
192 960 1728
Active Area
9 8 7 120
6 5 4 600
3 2 1
1080
: Test Point
Note (3) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point of the panel
G max
CR
G min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
Note (4) Definition of 9 points brightness uniformity
( B max B min)
Buni 100 u
B max
Bmax : Maximum brightness with all pixels white
Bmin : Minimum brightness with all pixels white
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Product Information
Note (5) Definition of Response time
a. On/Off response time : Sum of Tr, Tf
Display Data Black (TFT OFF) White (TFT ON) Black (TFT OFF)
TR TF
100%
90%
Optical
Response
10%
0%
Time
b. Gray to Gray Response Time
