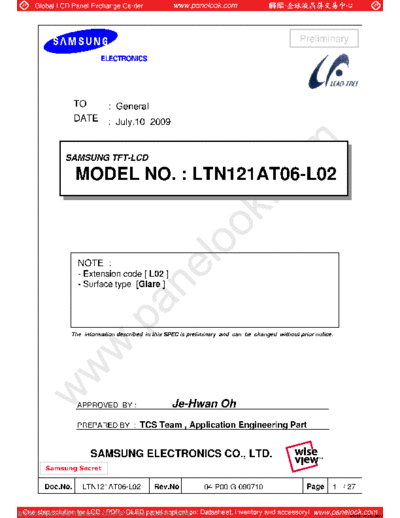

Image preview - the first page of the document
![Panel_SAMSUNG_LTN121AT06-L02_0_[DS]](/pics/5eb06a26862d1.gif)
>> Download Panel_SAMSUNG_LTN121AT06-L02_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Preliminary
TO : General
DATE : July.10 2009
SAMSUNG TFT-LCD
SAMSUNG TFT-LCD
MODEL NO. :: LTN121AT06-L02
MODEL NO. LTN121AT06-L02
NOTE :
- Extension code [ L02 ]
- Surface type [Glare ]
The information described in this SPEC is preliminary and can be changed without prior notice.
APPROVED BY : Je-Hwan Oh
PREPARED BY : TCS Team , Application Engineering Part
SAMSUNG ELECTRONICS CO., LTD.
Samsung Secret
Doc.No. LTN121AT06-L02 Rev.No 04-P00-G-090710 Page 1 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
CONTENTS
Preliminary
Revision History -------------------( 3 )
General Description -------------------( 4 )
1. Absolute Maximum Ratings -------------------( 5 )
1.1 Absolute Ratings of environment
1.2 Electrical Absolute Ratings
2. Optical Characteristics -------------------( 7 )
3. Electrical Characteristics - - - - - - - - - - - - - - - - - - - ( 10 )
3.1 TFT LCD Module
3.2 Backlight Unit
3.3 LED Driver
4. Block Diagram - - - - - - - - - - - - - - - - - - - ( 13 )
4.1 TFT LCD Module
5. Input Terminal Pin Assignment - - - - - - - - - - - - - - - - - - - ( 14 )
5.1 Input Signal & Power
5.2 LVDS Interface
5.3 Timing Diagrams of LVDS For Transmitting
5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color.
5.5 Pixel format
5.6 LED Driver Connector & Pin Assignment
6. Interface Timing - - - - - - - - - - - - - - - - - - - ( 19 )
6.1 Timing Parameters
6.2 Timing Diagrams of interface Signal
6.3 Power ON/OFF Sequence
7. Outline Dimension -- - - - - - - - - - - - - - - - - - ( 21 )
8. Packing -- - - - - - - - - - - - - - - - - - ( 23 )
9. Markings & Others -- - - - - - - - - - - - - - - - - - ( 24)
10. General Precautions -- - - - - - - - - - - - - - - - - - ( 26 )
11. EDID -- - - - - - - - - - - - - - - - - - ( 28 )
Samsung Secret
Doc.No. LTN121AT06-L02 Rev.No 04-P00-G-090710 Page 2 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
REVISION HISTORY
REVISION HISTORY Preliminary
Date Revision No. Page Summary
July.10. 2009 P00 All LTN121AT06-L02 model spec was issued first.
( This model will be provided through Line 6 )
Samsung Secret
Doc.No. LTN121AT06-L02 Rev.No 04-P00-G-090710 Page 3 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Preliminary
GENERAL DESCRIPTION
DESCRIPTION
LTN121AT06 is a color active matrix TFT (Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as switching devices. This model is composed of a
TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 12.1" contains
1280 x 800 pixels and can display up to 262,144 colors. 6 O'clock direction is the optimum
viewing angle.
FEATURES
