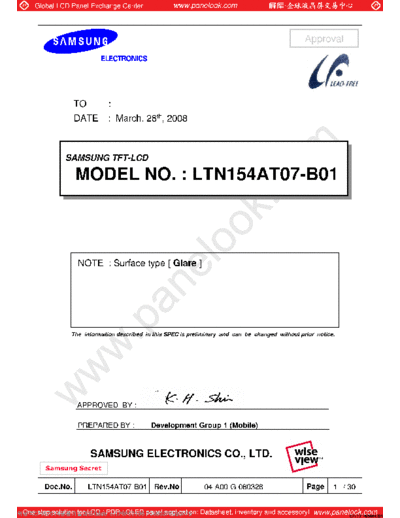

Image preview - the first page of the document
![Panel_SAMSUNG_LTN154AT07-B01_0_[DS]](/pics/5eb06daf20dba.gif)
>> Download Panel_SAMSUNG_LTN154AT07-B01_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Approval
TO :
DATE : March. 28th, 2008
SAMSUNG TFT-LCD
SAMSUNG TFT-LCD
MODEL NO. :: LTN154AT07-B01
MODEL NO. LTN154AT07-T01
NOTE : Surface type [ Glare ]
The information described in this SPEC is preliminary and can be changed without prior notice.
APPROVED BY :
PREPARED BY : Development Group 1 (Mobile)
SAMSUNG ELECTRONICS CO., LTD.
Samsung Secret
Doc.No. LTN154AT07-B01 Rev.No 04-A00-G-080328 Page 1 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Approval
CONTENTS
Revision History -------------------( 3 )
General Description -------------------( 4 )
1. Absolute Maximum Ratings -------------------( 5 )
1.1 Absolute Ratings of environment
1.2 Electrical Absolute Ratings
2. Optical Characteristics -------------------( 7 )
3. Electrical Characteristics - - - - - - - - - - - - - - - - - - - ( 10 )
3.1 TFT LCD Module
3.2 Backlight Unit
4. Block Diagram - - - - - - - - - - - - - - - - - - - ( 13 )
4.1 TFT LCD Module
4.2 Backlight Unit
5. Input Terminal Pin Assignment - - - - - - - - - - - - - - - - - - - ( 14 )
5.1 Input Signal & Power
5.2 LVDS Interface
5.3 Backlight Unit
5.4 Timing Diagrams of LVDS For Transmitting
5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color.
5.6 Pixel format
5.7 DVR Address
6. Interface Timing - - - - - - - - - - - - - - - - - - - ( 19 )
6.1 Timing Parameters
6.2 Timing Diagrams of interface Signal
6.3 Power ON/OFF Sequence
7. Outline Dimension - - - - - - - - - - - - - - - - - - - ( 21 )
8. Packing - - - - - - - - - - - - - - - - - - - ( 23 )
9. Markings & Others - - - - - - - - - - - - - - - - - - - ( 24 )
10. General Precaution - - - - - - - - - - - - - - - - - - - ( 26 )
11. EDID -----------------------------------( 28 )
Samsung Secret
Doc.No. LTN154AT07-B01 Rev.No 04-A00-G-080328 Page 2 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
REVISION HISTORY
REVISION HISTORY Approval
Date Revision No. Page Summary
Jan. 14, 2008 A00 All The approval specification of LTN154AT07-B01 was issued first.
Mar. 28, 2008 A01 7 The typical value of contrast ratio was written as below in page 7.
- CR : 300 / 500 (min / typ)
Samsung Secret
Doc.No. LTN154AT07-B01 Rev.No 04-A00-G-080328 Page 3 / 30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Approval
GENERAL DESCRIPTION
DESCRIPTION
LTN154AT07-B01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as switching devices. This model is composed of a
TFT LCD panel, a driver circuit and a backlight system. The resolution of a 15.4" contains
1280 x 800 pixels and can display up to 262,144 colors. 6 O'clock direction is the Optimum
viewing angle.
FEATURES
