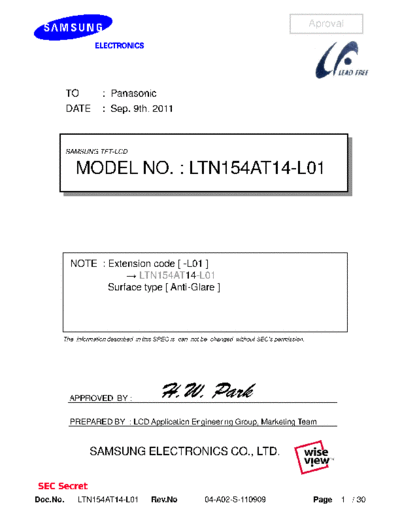

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTN154AT14-L01_0_[DS] documenatation <<

Text preview - extract from the document

                                                                                               Aproval




          TO        : Panasonic
          DATE      : Sep. 9th, 2011



          SAMSUNG TFT-LCD


            MODEL NO. : LTN154AT14-L01




           NOTE : Extension code [ -L01 ]
                       LTN154AT14-L01
                  Surface type [ Anti-Glare ]




      The information described in this SPEC is can not be changed without SEC's permission.




           APPROVED BY :                H.W. Park
           PREPARED BY : LCD Application Engineering Group, Marketing Team


                SAMSUNG ELECTRONICS CO., LTD.


SEC Secret
Doc.No.     LTN154AT14-L01           Rev.No             04-A02-S-110909                        Page   1 / 30
                                                                                            Aproval
          CONTENTS

     Revision History                                           -------------------( 3 )

     General Description                                        -------------------( 5 )

     1. Absolute Maximum Ratings                                -------------------( 6)
        1.1 Absolute Ratings of environment
        1.2 Electrical Absolute Ratings

     2. Optical Characteristics                                 -------------------(8)

     3. Electrical Characteristics                              - - - - - - - - - - - - - - - - - - - ( 12 )
        3.1 TFT LCD Module
        3.2 Backlight Unit

     4. Block Diagram                                           - - - - - - - - - - - - - - - - - - - ( 15 )
        4.1 TFT LCD Module
        4.2 Backlight Unit

     5. Input Terminal Pin Assignment                    - - - - - - - - - - - - - - - - - - - ( 16 )
        5.1 Input Signal & Power
        5.2 LVDS Interface
        5.3 Backlight Unit
        5.4 Timing Diagrams of LVDS For Transmitting
        5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color.
        5.6 Pixel format

     6. Interface Timing                               - - - - - - - - - - - - - - - - - - - ( 21 )
        6.1 Timing Parameters(DE Mode)
        6.2 Timing Diagrams of interface Signal (DE Mode)
        6.3 Power ON/OFF Sequence

     7. Outline Dimension                                       - - - - - - - - - - - - - - - - - - - ( 23 )

     8. Product Markings and Others                             - - - - - - - - - - - - - - - - - - - ( 25 )

     9. General Precautions                                     - - - - - - - - - - - - - - - - - - - ( 26 )

     10. EDID                                                   - - - - - - - - - - - - - - - - - - - ( 28 )




SEC Secret
Doc.No.    LTN154AT14-L01           Rev.No           04-A02-S-110909                          Page       2 / 30
                                 REVISION HISTORY                                     Aproval

     Date        Revision No.   Page                              Summary

 Aug. 29. 2011       A00         All    Approval specification of LTN154AT14-L01 model spec was
                                        issued first for Panasonic.

  Sep. 7. 2011       A01        p. 4    Green product was added on the features.
                                p. 17   No. 10 (FPC pin) was changed from FB4 to PWR.

  Sep. 9. 2011       A02        p. 17   FPC pin assignment of BLU unit was updated.




SEC Secret
Doc.No.      LTN154AT14-L01       Rev.No          04-A02-S-110909                     Page    3 / 30
                                                                                 Aproval
GENERAL DESCRIPTION
  DESCRIPTION
   LTN154AT14-L01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display
   (LCD) that uses amorphous silicon TFT as a switching devices. This model is composed of
   a TFT LCD panel, a driver circuit and a backlight system. The resolution of a 15.4" contains
   1,280 x 800 pixels and can display up to 262,144 colors. 6 O'clock direction is the Optimum
    viewing angle.

  FEATURES
