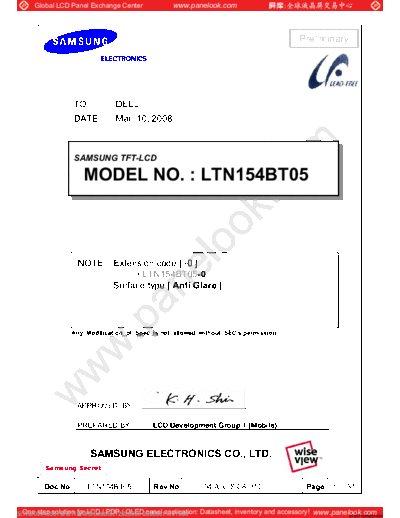

Image preview - the first page of the document
![Panel_SAMSUNG_LTN154BT05-001_0_[DS]](/pics/5eb06e366a584.gif)
>> Download Panel_SAMSUNG_LTN154BT05-001_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Preliminary
TO : DELL
DATE : Mar. 10, 2008
SAMSUNG TFT-LCD
SAMSUNG TFT-LCD
MODEL NO. :: LTN154BT05
MODEL NO. LTN154BT05
NOTE : Extension code [ -0 ]
LTN154BT05-0
Surface type [ Anti Glare ]
Any Modification of Spec is not allowed without SEC's permission
APPROVED BY :
PREPARED BY : LCD Development Group 1 (Mobile)
SAMSUNG ELECTRONICS CO., LTD.
6DPVXQJ 6HFUHW
Doc.No. LTN154BT05 Rev.No 04-A00-S-080310 Page 1 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Preliminary
CONTENTS
Revision History -------------------( 3 )
General Description -------------------( 4 )
1. Absolute Maximum Ratings -------------------( 5 )
1.1 Absolute Ratings of environment
1.2 Electrical Absolute Ratings
2. Optical Characteristics -------------------( 7 )
3. Electrical Characteristics - - - - - - - - - - - - - - - - - - - ( 10 )
3.1 TFT LCD Module
3.2 Backlight Unit
4. Block Diagram - - - - - - - - - - - - - - - - - - - ( 13 )
4.1 TFT LCD Module
4.2 Backlight Unit
5. Input Terminal Pin Assignment - - - - - - - - - - - - - - - - - - - ( 15 )
5.1 Input Signal & Power
5.2 LVDS Interface
5.3 Backlight Unit
5.4 Timing Diagrams of LVDS For Transmitting
5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color.
5.6 Pixel format
6. Interface Timing - - - - - - - - - - - - - - - - - - - ( 21 )
6.1 Timing Parameters
6.2 Timing Diagrams of interface Signal
6.3 Power ON/OFF Sequence
7. Outline Dimension - - - - - - - - - - - - - - - - - - - ( 23 )
8. Packing -- - - - - - - - - - - - - - - - - - ( 24 )
9. Markings & Others -- - - - - - - - - - - - - - - - - - ( 25 )
10. General Precaution - - - - - - - - - - - - - - - - - - - ( 27 )
6DPVXQJ 6HFUHW
Doc.No. LTN154BT05 Rev.No 04-A00-S-080310 Page 2 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
REVISION HISTORY
REVISION HISTORY Preliminary
Date Revision No. Page Summary
Dec. 10. 2007 P00 All LTN154BT05 Model spec was issued first.
Feb. 12. 2008 P01 7 Value of contrast ratio is updated.
Mar. 10. 2008 A00 All Approval spec was issued.
6DPVXQJ 6HFUHW
Doc.No. LTN154BT05 Rev.No 04-A00-S-080310 Page 3 / 31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Preliminary
GENERAL DESCRIPTION
DESCRIPTION
LTN154BT05 is a color active matrix TFT (Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as switching devices. This model is composed of a
TFT LCD panel, a driver circuit and a backlight system. The resolution of a 15.4" contains
1440 x 900 pixels and can display up to 262,144 colors. 6 O'clock direction is the Optimum
viewing angle.
FEATURES
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
