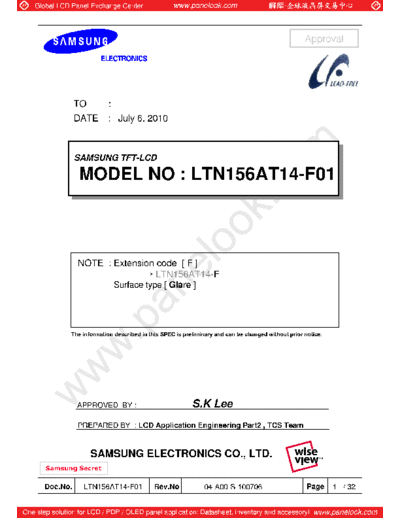

Image preview - the first page of the document
![Panel_SAMSUNG_LTN156AT14-F01_0_[DS]](/pics/5eb06f1658477.gif)
>> Download Panel_SAMSUNG_LTN156AT14-F01_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Approval
TO :
DATE : July 6. 2010
SAMSUNG TFT-LCD
SAMSUNG TFT-LCD
MODEL NO :: LTN156AT14-F01
MODEL NO LTN156AT14-F01
NOTE : Extension code [ F ]
LTN156AT14-F
Surface type [ Glare ]
The information described in this SPEC is preliminary and can be changed without prior notice.
APPROVED BY : S.K Lee
PREPARED BY : LCD Application Engineering Part2 , TCS Team
SAMSUNG ELECTRONICS CO., LTD.
Samsung Secret
Doc.No. LTN156AT14-F01 Rev.No 04-A00-S-100706 Page 1 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Approval
CONTENTS
Revision History -------------------( 3 )
General Description -------------------( 4 )
1. Absolute Maximum Ratings -------------------( 5 )
1.1 Absolute Ratings of environment
1.2 Electrical Absolute Ratings
2. Optical Characteristics -------------------( 7 )
3. Electrical Characteristics - - - - - - - - - - - - - - - - - - - ( 10 )
3.1 TFT LCD Module
3.2 Backlight Unit
3.3 LED Driver
4. Block Diagram - - - - - - - - - - - - - - - - - - - ( 13 )
4.1 TFT LCD Module
5. Input Terminal Pin Assignment - - - - - - - - - - - - - - - - - - - ( 14 )
5.1 Input Signal & Power
5.2 LVDS Interface
5.3 Timing Diagrams of LVDS For Transmitting
5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color.
5.5 Pixel format
6. Interface Timing - - - - - - - - - - - - - - - - - - - ( 19 )
6.1 Timing Parameters
6.2 Timing Diagrams of interface Signal
6.3 Power ON/OFF Sequence
7. Outline Dimension - - - - - - - - - - - - - - - - - - - ( 21 )
8. Packing -- - - - - - - - - - - - - - - - - - ( 24 )
9. Markings & Others -- - - - - - - - - - - - - - - - - - ( 26)
10. General Precautions -- - - - - - - - - - - - - - - - - - ( 28 )
11. EDID - - - - - - - - - - - - - - - - - - - ( 30 )
Samsung Secret
Doc.No. LTN156AT14-F01 Rev.No 04-A00-S-100706 Page 2 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
REVISION HISTORY
REVISION HISTORY Approval
Revision
Date Page Summary
No.
Apr. 23. 2010 P00 All .The preliminary specification of LTN156AT14-F01 was issued first.
