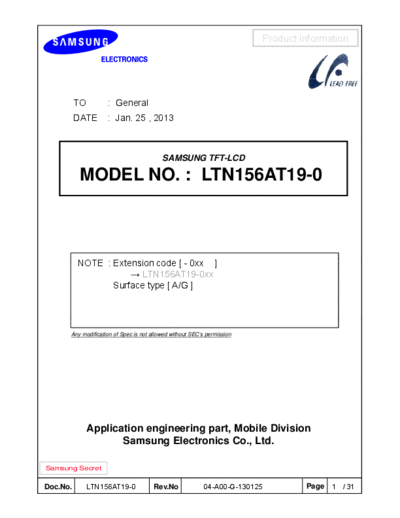

Image preview - the first page of the document
![Panel_SAMSUNG_LTN156AT19-001_0_[DS]](/pics/5eb06f41adf88.gif)
>> Download Panel_SAMSUNG_LTN156AT19-001_0_[DS] documenatation <<
Text preview - extract from the document
Product Information
TO : General
DATE : Jan. 25 , 2013
SAMSUNG TFT-LCD
MODEL NO. : LTN156AT19-0
NOTE : Extension code [ - 0xx ]
LTN156AT19-0xx
Surface type [ A/G ]
Any modification of Spec is not allowed without SEC's permission
Application engineering part, Mobile Division
Samsung Electronics Co Ltd
Co., Ltd.
Samsung Secret
Doc.No. LTN156AT19-0 Rev.No 04-A00-G-130125 Page 1 / 31
Product Information
CONTENTS
Revision History -------------------( 3 )
General Description -------------------( 4 )
1. Absolute Maximum Ratings -------------------( 5 )
1.1 Absolute Ratings of environment
1.2 Electrical Absolute Ratings
2. Optical Characteristics -------------------( 7 )
3. Electrical Characteristics - - - - - - - - - - - - - - - - - - - ( 10 )
3.1 TFT LCD Module
3.2 Backlight Unit
3.3 LED Driver
4. Block Diagram - - - - - - - - - - - - - - - - - - - ( 13 )
4.1 TFT LCD Module
4.2 LED Placement Structure
5. Input Terminal Pin Assignment - - - - - - - - - - - - - - - - - - - ( 14 )
5.1 Input Signal & Power
5.2
5 2 LVDS Interface
5.3 Timing Diagrams of LVDS For Transmitting
5.4 Pixel format
6. Interface Timing
6.1 Timing Parameters - - - - - - - - - - - - - - - - - - - ( 19 )
6.2 Timing Diagrams of i t f
6 2 Ti i Di f interface Si
Signal
l
6.3 Power ON/OFF Sequence
7. Outline Dimension
- - - - - - - - - - - - - - - - - - - ( 222 )
8. Packing
- - - - - - - - - - - - - - - - - - - ( 24 )
9. Markings & Others
- - - - - - - - - - - - - - - - - - - ( 25 )
10. General Precautions
-- - - - - - - - - - - - - - - - - - ( 27 )
11. EDID
-- - - - - - - - - - - - - - - - - - ( 29 )
Samsung Secret
Doc.No. LTN156AT19-0 Rev.No 04-A00-G-130125 Page 2 / 31
REVISION HISTORY Product Information
Date Revision No. Page Summary
Jan, 25. 2013 A00 All The approval specification of 15.6" SMS HD was issued first.
CODE REVISION HISTORY
Date Model. Revision No. Summary
June, 15. 2011 LTN156AT19 001 Basic model
Samsung Secret
Doc.No. LTN156AT19-0 Rev.No 04-A00-G-130125 Page 3 / 31
Product Information
GENERAL DESCRIPTION
DESCRIPTION
LTN156AT19 is a color active matrix TFT (Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as switching devices.
This model is composed of a TFT LCD panel, a driver circuit and a backlight unit.
The resolution of a 15.6" contains 1366 x 768 pixels and can display up to 262,144colors.
6 O'clock direction is the optimum viewing angle.
FEATURES
