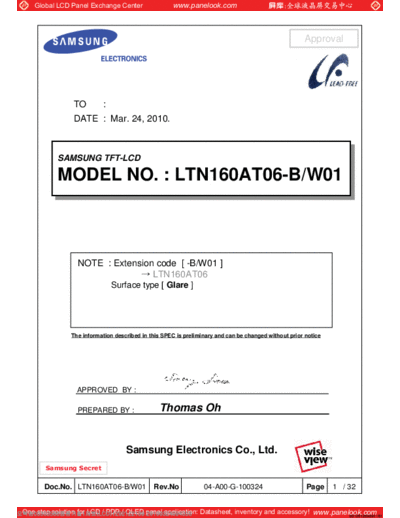

Image preview - the first page of the document
![Panel_SAMSUNG_LTN160AT06-B01_0_[DS]](/pics/5eb07104044b3.gif)
>> Download Panel_SAMSUNG_LTN160AT06-B01_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Approval
TO :
DATE : Mar. 24, 2010.
SAMSUNG TFT-LCD
SAMSUNG TFT-LCD
MODEL NO. :: LTN160AT06-B/W01
MODEL NO. LTN160AT06-B/W01
NOTE : Extension code [ -B/W01 ]
LTN160AT06
Surface type [ Glare ]
The information described in this SPEC is preliminary and can be changed without prior notice
APPROVED BY :
PREPARED BY : Thomas Oh
Samsung Electronics Co., Ltd.
6DPVXQJ 6HFUHW
Doc.No. LTN160AT06-B/W01 Rev.No 04-A00-G-100324 Page 1 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Approval
CONTENTS
Revision History -------------------( 3 )
General Description -------------------( 4 )
1. Absolute Maximum Ratings -------------------( 5 )
1.1 Absolute Ratings of environment
1.2 Electrical Absolute Ratings
2. Optical Characteristics -------------------( 7 )
3. Electrical Characteristics - - - - - - - - - - - - - - - - - - - ( 10 )
3.1 TFT LCD Module
3.2 Backlight Unit
3.3 Inverter
4. Block Diagram - - - - - - - - - - - - - - - - - - - ( 13 )
4.1 TFT LCD Module
4.2 Backlight Unit
4.3 Inverter Unit
5. Input Terminal Pin Assignment - - - - - - - - - - - - - - - - - - - ( 14 )
5.1 Input Signal & Power
5.2 LVDS Interface
5.3 Timing Diagrams of LVDS For Transmitting
5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color.
5.5 Pixel format
6. Interface Timing -- - - - - - - - - - - - - - - - - -- ( 20 )
6.1 Timing Parameters
6.2 Timing Diagrams of interface Signal
6.3 Power ON/OFF Sequence
7. Outline Dimension -- - - - - - - - - - - - - - - - - - - ( 23 )
8. Packing -- - - - - - - - - - - - - - - ---- -- ( 25 )
9. Marking & Others --- - - - - - - - - - - - - - - - -- - ( 25)
10. General Precaution --- - - - - - - - - - - - - - - - - - ( 28 )
11. EDID --- - - - - - - - - - - - - - - - - - ( 30 )
6DPVXQJ 6HFUHW
Doc.No. LTN160AT06-B/W01 Rev.No 04-A00-G-100324 Page 2 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
REVISION HISTORY
REVISION HISTORY Approval
Date Revision No. Page Summary
Mar. 24. 2010 A00 All The approval specification was issued first.
6DPVXQJ 6HFUHW
Doc.No. LTN160AT06-B/W01 Rev.No 04-A00-G-100324 Page 3 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Approval
GENERAL DESCRIPTION
DESCRIPTION
LTN160AT06-A01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as switching devices. This model is composed
of a TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 16.0" contains
1366 x 768 pixels and can display up to 262,144 colors. 6 O'clock direction is the
optimum viewing angle.
FEATURES
