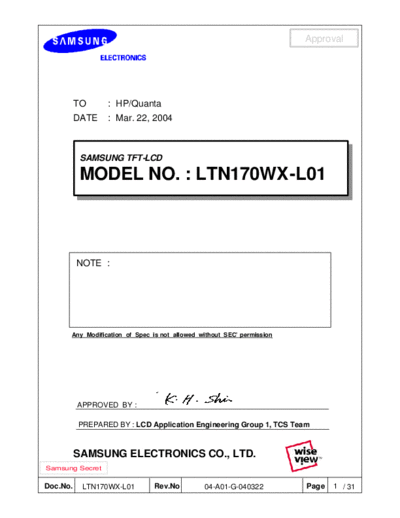

Image preview - the first page of the document
![Panel_SAMSUNG_LTN170WX-L01_0_[DS]](/pics/5eb07184df497.gif)
>> Download Panel_SAMSUNG_LTN170WX-L01_0_[DS] documenatation <<
Text preview - extract from the document
Approval
TO : HP/Quanta
DATE : Mar. 22, 2004
SAMSUNG TFT-LCD
SAMSUNG TFT-LCD
MODEL NO. :: LTN170WX-L01
MODEL NO. LTN170WX-L01
NOTE :
Any Modification of Spec is not allowed without SEC' permission
APPROVED BY :
PREPARED BY : LCD Application Engineering Group 1, TCS Team
SAMSUNG ELECTRONICS CO., LTD.
Samsung Secret
Doc.No. LTN170WX-L01 Rev.No 04-A01-G-040322 Page 1 / 31
Approval
CONTENTS
Revision History -------------------( 3 )
General Description -------------------( 4 )
1. Absolute Maximum Ratings -------------------( 5 )
1.1 Absolute Ratings of environment
1.2 Electrical Absolute Ratings
2. Optical Characteristics -------------------( 7 )
3. Electrical Characteristics - - - - - - - - - - - - - - - - - - - ( 10 )
3.1 TFT LCD Module
3.2 Backlight Unit
4. Block Diagram - - - - - - - - - - - - - - - - - - - ( 13 )
4.1 TFT LCD Module
4.2 Backlight Unit
5. Input Terminal Pin Assignment - - - - - - - - - - - - - - - - - - - ( 14 )
5.1 Input Signal & Power
5.2 LVDS Interface
5.3 Backlight Unit
5.4 Timing Diagrams of LVDS For Transmitting
5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color.
5.6 Pixel format
6. Interface Timing - - - - - - - - - - - - - - - - - - - ( 20 )
6.1 Timing Parameters
6.2 Timing Diagrams of interface Signal
6.3 Power ON/OFF Sequence
7. Mechanical outline dimension - - - - - - - - - - - - - - - - - - - ( 22 )
8. Packing -- - - - - - - - - - - - - - - - - -- ( 24 )
9. Marking & others -- - - - - - - - - - - - - - - - - - -( 25 )
10. General Precaution -- - - - - - - - - - - - - - - - - - -( 27 )
11. EDID -- - - - - - - - - - - - - - - - - - -( 29 )
Samsung Secret
Doc.No. LTN170WX-L01 Rev.No 04-A01-G-040322 Page 2 / 31
REVISION HISTORY
REVISION HISTORY Approval
Date Revision No. Page Summary
Apr. 04, 2003 000 ALL LTN170WX-L01 model rev.000 specification was First issued.
Oct.21, 2003 A00 All Approval specification of LTN170WX-L01 was issued.
04 Add the EDID.
05 Fix the weight and the depth of module size.
Modify the minimum storage temperature from -25 ?C to -20?C .
07 Fix the Luminance, the color chromaticity and 13 points white
variation.
10 Fix the main frequency and the power consumption.
12 Modify the lamp current, voltage, frequency , power consumption
and the startup voltage.
Add the start up time.
22,23 Modify the outline dimension
24, 25 Add packing, marking and others.
29 Add the EDID.
Mar. 16, 2004 A01 05 Change the depth of module size.
07 Change the color chromaticity.
22,23 Modify the outline dimension
Samsung Secret
Doc.No. LTN170WX-L01 Rev.No 04-A01-G-040322 Page 3 / 31
Approval
GENERAL DESCRIPTION
DESCRIPTION
LTN170WX-L01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as a switching devices. This model is composed of
a TFT LCD panel, a driver circuit and a backlight system. The resolution of a 17.0" contains
1,440 x 900 pixels and can display up to 262,144 colors. 6 O'clock direction is the optimum
viewing angle.
FEATURES
