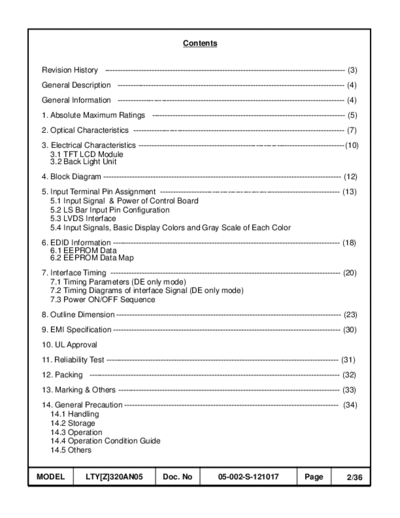

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTY320AN05-A03_0_[DS] documenatation <<

Text preview - extract from the document

                                                   Contents


Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (7)
3. Electrical Characteristics -------------------------------------------------------------------------------(10)
   3.1 TFT LCD Module
   3.2 Back Light Unit
4. Block Diagram ------------------------------------------------------------------------------------------- (12)
5. Input Terminal Pin Assignment --------------------------------------------------------------------- (13)
   5.1 Input Signal & Power of Control Board
   5.2 LS Bar Input Pin Configuration
   5.3 LVDS Interface
   5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color
6. EDID Information --------------------------------------------------------------------------------------- (18)
   6.1 EEPROM Data
   6.2 EEPROM Data Map
7. Interface Timing ---------------------------------------------------------------------------------------- (20)
   7.1 Timing Parameters (DE only mode)
   7.2 Timing Diagrams of interface Signal (DE only mode)
   7.3 Power ON/OFF Sequence
8. Outline Dimension -------------------------------------------------------------------------------------- (23)
9. EMI Specification --------------------------------------------------------------------------------------- (30)
10. UL Approval
11. Reliability Test ----------------------------------------------------------------------------------------- (31)
12. Packing ------------------------------------------------------------------------------------------------ (32)
13. Marking & Others ------------------------------------------------------------------------------------- (33)
14. General Precaution ---------------------------------------------------------------------------------- (34)
  14.1 Handling
  14.2 Storage
  14.3 Operation
  14.4 Operation Condition Guide
  14.5 Others


MODEL           LTY[Z]320AN05               Doc. No             05-002-S-121017                 Page            2/36
* Revision History

       Rev.
Date          Page                                Summary
        No
Mar.
  2     000     -                                First Issued
2012
Apr.                 Improved Dr-IC Application
 27,    001     -    - AS IS : MT3196B, TO BE : MT3196C
2012                 - Model Code Changed : LTY[Z]320AN05-A01  LTY[Z]320AN05-A02
