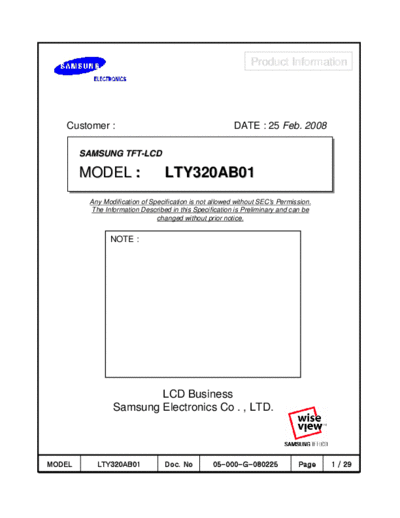

Image preview - the first page of the document



>> Download Panel_SAMSUNG_LTY320AB01_0_[DS] documenatation <<

Text preview - extract from the document

                                                              Product Information




   Customer :                                            DATE : 25 Feb. 2008

        SAMSUNG TFT-LCD
        SAMSUNG TFT-LCD

        MODEL :
        MODEL :                   LTY320AB01
                                  LTY320AB01
         Any Modification of Specification is not allowed without SEC's Permission.
         The Information Described in this Specification is Preliminary and can be
                               changed without prior notice.


               NOTE :




                        LCD Business
                Samsung Electronics Co . , LTD.




MODEL      LTY320AB01             Doc. No         05-000-G-080225             Page    1 / 29
                                                   Contents


Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
   3.1 TFT LCD Module
   3.2 Back Light Unit
4. Block Diagram ------------------------------------------------------------------------------------------- (11)
5. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
   5.1 Input Signal & Power
   5.2 Inverter Input Pin Configuration
   5.3 Inverter Input Power Sequence & Specification
   5.4 LVDS Interface
   5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
6. Interface Timing ---------------------------------------------------------------------------------------- (19)
   6.1 Timing Parameters (DE only mode)
   6.2 Timing Diagrams of interface Signal (DE only mode)
   6.3 Power ON/OFF Sequence
7. Outline Dimension -------------------------------------------------------------------------------------- (22)
8. Packing -------------------------------------------------------------------------------------------------- (26)
9. Marking & Others --------------------------------------------------------------------------------------- (27)
10. General Precaution ---------------------------------------------------------------------------------- (28)
  10.1 Handling
  10.2 Storage
  10.3 Operation
  10.4 Operation Condition Guide
  10.5 Others




MODEL            LTY320AB01                Doc. No            05-000-G-080225                  Page        2 / 29
* Revision History

        Rev.
Date           Page                     Summary
         No
Feb.
 25,    000     -                      First Issued
2008




MODEL          LTY320AB01   Doc. No   05-000-G-080225   Page   3 / 29
General Description
  Description
   LTY320AB01 is a color active matrix liquid crystal display (LCD) that uses amorphous
  silicon TFT(Thin Film Transistor) as switching components. This model is composed of a
  TFT LCD panel, a driver circuit and a back light unit. The resolution of a 32.0" is
  1366 x 768 and this model can display up to 16.7million colors with wide viewing angle of
  89
