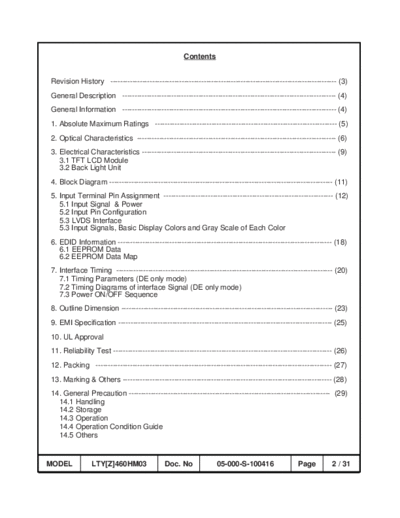

Image preview - the first page of the document
![Panel_SAMSUNG_LTY460HM03_0_[DS]](/pics/5eb0730231b41.gif)
>> Download Panel_SAMSUNG_LTY460HM03_0_[DS] documenatation <<
Text preview - extract from the document
Contents
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Optical Characteristics --------------------------------------------------------------------------------- (6)
3. Electrical Characteristics ------------------------------------------------------------------------------- (9)
3.1 TFT LCD Module
3.2 Back Light Unit
4. Block Diagram ------------------------------------------------------------------------------------------- (11)
5. Input Terminal Pin Assignment --------------------------------------------------------------------- (12)
5.1 Input Signal & Power
5.2 Input Pin Configuration
5.3 LVDS Interface
5.3 Input Signals, Basic Display Colors and Gray Scale of Each Color
6. EDID Information --------------------------------------------------------------------------------------- (18)
6.1 EEPROM Data
6.2 EEPROM Data Map
7. Interface Timing ---------------------------------------------------------------------------------------- (20)
7.1 Timing Parameters (DE only mode)
7.2 Timing Diagrams of interface Signal (DE only mode)
7.3 Power ON/OFF Sequence
8. Outline Dimension -------------------------------------------------------------------------------------- (23)
9. EMI Specification --------------------------------------------------------------------------------------- (25)
10. UL Approval
11. Reliability Test ----------------------------------------------------------------------------------------- (26)
12. Packing ------------------------------------------------------------------------------------------------ (27)
13. Marking & Others ------------------------------------------------------------------------------------- (28)
14. General Precaution ---------------------------------------------------------------------------------- (29)
14.1 Handling
14.2 Storage
14.3 Operation
14.4 Operation Condition Guide
14.5 Others
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 2 / 31
* Revision History
Rev.
Date Page Summary
No
Apr.
16, 000 - First Issued
2010
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 3 / 31
General Description
Description
LTY[Z]460HM03 is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT(Thin Film Transistor) as switching components. This model is composed of a
TFT LCD panel, a driver circuit and a back light unit. The resolution of a 46.0" is 1920 x
1080 and this model can display up to 16.7million colors with wide viewing angle of 89 or
higher in all directions. This panel is intended to support applications to provide a excellent
performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD TV, Display
terminals for AV application products, and High Definition TV (HDTV).
Features
RoHS compliance (Pb-free)
High contrast ratio, high aperture ratio, fast response time
SPVA (Super Patterned Vertical Align) mode
Wide viewing angle ( 89 )
Full HD (1920 x 1080 pixels) resolution (16:9)
Low Power consumption
WLED (White Light Emitting Diode) Backlight
LVDS (Low Voltage Differential Signaling) interface
General Information
Items Specification Unit Note
1083(HTYP) x 627(VTYP) 1.0mm
Module Size mm
61.7(DMAX)
Weight 10150(Max) g
Pixel Pitch 0.17675(H) * 3 x 0.53025(V) mm
Active Display Area 1018.08(H) x 572.67(V) mm
Surface Treatment Haze 0.2%, Hard-coating (3H)
Display Colors 8 bit- 16.7M colors
Number of Pixels 1920 x 1080 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
Luminance of White 380 cd/m2 Typ.
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 4 / 31
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
Power Supply Voltage VDD GND-0.5 13 V (1)
Storage temperature TSTG -20 65 (2)
Operating Temperature TOPR 0 50 (2)
Panel surface temperature TSUR 0 65 (3)
XY axis - 40
Shock ( non - operating ) SNOP G (4)
Z axis - 30
Vibration ( non - operating ) VNOP - 1.5 G (5)
Note (1) Ta= 25 2 C
(2) Temperature and relative humidity range are shown in the figure below.
a. 93.8 % RH Max. (Ta 40 C)
b. Maximum wet-bulb temperature at 40 C or less. (Ta 40 C)
c. No condensation
(3) Polarizer will not be damaged in this range, even though abnormal visual problems occur
in TSUR range.
(4) 11ms, sine wave, one time for X, Y, Z axis
(5) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
(40, 93.8)
(50, 50.4)
(65, 27.7)
Fig. Temperature and Relative humidity range
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 5 / 31
2. Optical Characteristics
The optical characteristics should be measured in a dark room or equivalent.
Measuring equipment : TOPCON BM-7,SPECTRORADIOMETER SR-3
(Ta = 25 2 C, VDD=12V, fv= 60Hz, fDCLK=148.5MHz, Dim = 100%)
Item Symbol Condition Min. Typ. Max. Unit Note
Contrast Ratio (3)
C/R *2500 5000 -
(Center of screen) SR-3
Rising Tr - 12 70
Response Falling Tf - 8 18 (5)
msec
Time BM-7
G-to-G
Tg - 8 -
[AVE]
Luminance of White Normal (6)
YL 320 380 - cd/m2
(Center of screen) L,R=0 SR-3
U,D=0
Rx 0.617
Red
Ry Viewing 0.331
Angle
Gx 0.314
Green
Color Gy 0.627
TYP. TYP. (7),(8)
Chromaticity
Bx -0.03 0.155 +0.03 SR-3
(CIE 1931)
Blue
By 0.051
Wx 0.280
White
Wy 0.290
(7)
Color Gamut - - 72 - %
SR-3
Color Temperature - - 10000 - K (7)
Gamma - 2.2 - SR-3
L 79 89 -
Hor.
Viewing R 79 89 - (8)
C/R 10 Degree
Angle 79 89 - SR-3
U
Ver.
D 79 89 -
Brightness Uniformity (4)
Buni - - 30 %
(9 Points) SR-3
* marked Items Value does not Specification above when "White stain" occurs at Center Point [Point of Note 2.]
Note (1) Test Equipment Setup
The measurement should be executed in a stable, windless and dark room between
40min and 60min after lighting the back light at the given temperature for stabilization
of the back light. This should be measured in the center of screen.
Single lamp current @ Vdim = 100%
Environment condition : Ta = 25 2 C
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 6 / 31
Photo detector
Photo detector Field
SR-3 1
BM-7 2 Field
SR-3 : 50
BM-7 : 50
TFT - LCD Module
LCD Panel
The center of the screen
Note (2) Definition of test point
320 960 1600
180 Active Area
Test Point
540
900
Note (3) Definition of Contrast Ratio (C/R)
: Ratio of gray max (Gmax) & gray min (Gmin) at the center point of the panel
G max
C/R
G min
Gmax : Luminance with all pixels white
Gmin : Luminance with all pixels black
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 7 / 31
Note (4) Definition of 9 points brightness uniformity
( B max B min)
Buni 100
B max
Bmax : Maximum brightness
Bmin : Minimum brightness
Note (5) Definition of Response time : Sum of Tr, Tf
Display data Black (data off) White (data on) White (data off)
TR TF
Optical Instruments
100%
Response
90%
10%
0%
TIME
Note (6) Definition of Luminance of White : Luminance of white at center point
Note (7) Definition of Color Chromaticity (CIE 1931)
Color coordinate of Red, Green, Blue & White at center point
Note (8) Definition of Viewing Angle
: Viewing angle range (C/R 10)
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 8 / 31
3. Electrical Characteristics
3.1 TFT LCD Module
The connector for display data & timing signal should be connected.
Ta = 25 C 2 C
Item Symbol Min. Typ. Max. Unit Note
Voltage of Power Supply VDD 11 12 13 V (1)
(a) Black - 850 1020
Current (b) White - 1450 1740
of Power IDD mA (2),(3)
Supply (c) Mosaic - 920 1100
(4) Max Pattern - 1420 1700
Vsync Frequency fV 47 60 62 Hz
Hsync Frequency fH 50 67.5 73 kHz
Main Frequency fDCLK 130 148.5 155 MHz
Rush Current IRUSH - - 5 A (4)
Note (1) The ripple voltage should be controlled under 10% of VDD.
(2) fV=60Hz, fDCLK = 148.5MHz, VDD = 12.0V, DC Current.
(3) Power dissipation check pattern (LCD Module only)
a) Black Pattern b) White Pattern c) Mosaic d)Max. Pattern
(4) Measurement Conditions
VDD
100%
90%
10%
GND
TRUSH=1ms
Rush Current IRUSH can be measured when TRUSH. is1ms
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 9 / 31
3.2 Back Light Unit
The back light contains 240 LEDs.
The characteristics of lamps are shown in the following tables.
Ta=25 2C
Item Symbol Min. Typ. Max. Unit Note
Operating Life Time Hr 30,000 - - Hour (1)
Continuous Iop - - 160 mA /String
Operating
Current Impulsive @110mA
Iop - - 185 mA
(60Hz/Duty50%) /Duty100%
60LEDs
Continuous Vop - - 212 V
Operating /110mA@Tj 25
Voltage Impulsive
Vop - - 229 V Tj 25
(60Hz/Duty50%)
Note (1) It is defined as the time to take until the brightness reduces to 50% of its original value.
[Definition of Operating Voltage : At each Strings, Iop = 110.0 mArms (typ.)]
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 10 / 31
4. Block Diagram
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 11 / 31
5. Input Terminal Pin Assignment
5.1. Input Signal & Power Connector : IS050-C51B-C38(UJU)
Compatible with FI-RE51S-HF(JAE)
PIN No. Signal Description PIN No. Signal Description
1 Power VDD 26 RX1_AP_I Even LVDS Signal +
2 Power VDD 27 RX1_BN_I Even LVDS Signal -
3 Power VDD 28 RX1_BP_I Even LVDS Signal +
4 Power VDD 29 RX1_CN_I Even LVDS Signal -
5 Power VDD 30 RX1_CP_I Even LVDS Signal +
6 N.C. No Connection 31 GND GND
7 GND GND 32 RX1_CLKN_I Even LVDS Clock-
8 GND GND 33 RX1_CLKP_I Even LVDS Clock+
9 GND GND 34 GND GND
10 RX0_AN_I Odd LVDS Signal - 35 RX1_DN_I Even LVDS Signal -
11 RX0_AP_I Odd LVDS Signal + 36 RX1_DP_I Even LVDS Signal +
12 RX0_BN_I Odd LVDS Signal - 37 N.C. No Connection
13 RX0_BP_I Odd LVDS Signal + 38 N.C. No Connection
14 RX0_CN_I Odd LVDS Signal - 39 GND GND
15 RX0_CP_I Odd LVDS Signal + 40 SCL_C I2C SCL
16 GND GND 41 SDA_C I2C SDA
17 RX0_CLKN_I Odd LVDS CLK - 42 VSYNC V Sync Signal
18 RX0_CLKP_I Odd LVDS CLK + 43 BUS_SW Bus Switching
19 GND GND 44 N.C. No Connection
20 RX0_DN_I Odd LVDS Signal - 45 N.C. No Connection
21 RX0_DP_I Odd LVDS Signal + 46 LUT SEL0 DCC LUT Select 0
22 N.C. No Connection 47 LUT SEL1 DCC LUT Select1
23 N.C. No Connection 48 LUT SEL2 DCC LUT Select2
24 GND GND 49 HSYNC H Sync Signal
25 RX1_AN_I Even LVDS Signal - 50 TCON_RDY T-Con Ready
51 SEL1 SEC Internal Use Only
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 12 / 31
BUS_SW : I2C BUS Switching
Operation Description
SDA/SCL LINE BECOME HI-Z
HIGH USER CAN ACCESS EEPROM
DCC Look Up Table Selection
Description ( Based on DCC On)
Pin N.O. 48 47 46
LUT %(For Interpolate)
0 0 0 For 60Hz 100%
0 0 1 For 60Hz 100%X1.25
0 1 0 For 60Hz @ Low Temp. 100%X1.25
Select 0 1 1 For 60Hz @ Low Temp. (100%X1.25) X 1.25
bit 1 0 0 For 50Hz 100%
1 0 1 For 50Hz 100%X1.25
1 1 0
0%
1 1 1
TCON Ready
Operation Description
Low High Normal Operation
High Low Error Operation
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 13 / 31
Note(1) Pin number starts from Right side
PCB
Pin No. 1 Pin No. 51
#1 #51
connect name
#1 #51
Fig. Connector diagram
a. All GND pins should be connected together and also be connected to the LCD's
metal chassis.
b. All power input pins should be connected together.
c. All NC pins should be separated from other signal or power.
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 14 / 31
5.2 Input Pin Configuration
4pin : DC Voltage Connector : 51103-0400 (Molex)
Pin No. Pin Configuration (Function)
1 1 Channel DC Voltage
2 2 Channel DC Voltage
3 No Connection
4 No Connection
5pin : Feedback Voltage Connector : 51103-0500 (Molex)
Pin No. Pin Configuration (Function)
1 1 Channel Feedback
2 2 Channel Feedback
3 No Connection
4 No Connection
5 No Connection
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 15 / 31
5.3 LVDS Interface
LVDS pin Odd Data Even Data
TxIN/RxOUT0 R2 R2
TxIN/RxOUT1 R3 R3
TxIN/RxOUT2 R4 R4
TxOUT/RxIN0 TxIN/RxOUT3 R5 R5
TxIN/RxOUT4 R6 R6
TxIN/RxOUT6 R7 R7
TxIN/RxOUT7 G2 G2
TxIN/RxOUT8 G3 G3
TxIN/RxOUT9 G4 G4
TxIN/RxOUT12 G5 G5
TxOUT/RxIN1 TxIN/RxOUT13 G6 G6
TxIN/RxOUT14 G7 G7
TxIN/RxOUT15 B2 B2
TxIN/RxOUT18 B3 B3
TxIN/RxOUT19 B4 B4
TxIN/RxOUT20 B5 B5
TxIN/RxOUT21 B6 B6
TxOUT/RxIN2 TxIN/RxOUT22 B7 B7
TxIN/RxOUT24 HSYNC HSYNC
TxIN/RxOUT25 VSYNC VSYNC
TxIN/RxOUT26 DEN DEN
TxIN/RxOUT28 R0 R0
TxIN/RxOUT29 R1 R1
TxIN/RxOUT30 G0 G0
TxOUT/RxIN3 TxIN/RxOUT31 G1 G1
TxIN/RxOUT32 B0 B0
TxIN/RxOUT33 B1 B1
TxIN/RxOUT34 Reserved Reserved
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 16 / 31
5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color
DATA SIGNAL
GRAY
DISPLAY
COLOR RED GREEN BLUE SCALE
(8bit)
LEVEL
R0 R1 R2 R3 R4 R5 R6 R7 G0 G1 G2 G3 G4 G5 G6 G7 B0 B1 B2 B3 B4 B5 B6 B7
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 -
GREEN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 -
BASIC CYAN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -
COLOR
RED 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -
MAGENTA 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 -
YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 -
WHITE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R0
1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R1
DARK 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R2
GRAY
: : : : : : : : : : : : : : : : : : R3~
SCALE
OF : : : : : : : : : : : : : : : : : : R252
RED
LIGHT 1 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R253
0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R254
RED 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R255
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G0
0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G1
DARK 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 G2
GRAY
SCALE : : : : : : : : : : : : : : : : : : G3~
OF : : : : : : : : : : : : : : : : : : G252
GREEN
LIGHT 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G253
0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G254
GREEN 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 G255
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 B0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 B1
DARK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 B2
GRAY
: : : : : : : : : : : : : : : : : : B3~
SCALE
OF : : : : : : : : : : : : : : : : : : B252
BLUE
LIGHT 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 B253
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 B254
BLUE 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 B255
Note) Definition of Gray :
Rn : Red Gray, Gn : Green Gray, Bn : Blue Gray (n = Gray level)
Input Signal : 0 = Low level voltage, 1 = High level voltage
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 17 / 31
6. EDID Information
6.1 EEPROM Data
EEPROM Data
No Item Spec Address Data Remark
Panel Product SONY Choice
1 XXXX 00 XX
Vender - Note 1
2 Screen Size XX 01 XX 16
3 H-Resolution XXXX 02,03 XX,XX 16
4 V-Resolution XXX 04,05 XX,XX 16
Vertical
5 XX 06 XX - Note 2
Frequency
6 Data Format XX 07 XX - Note 3
FRC Revision ASCII
7 X ED XX
Information - Note 4
XX,XX,XX,XX,XX,
XX,
XXX(X)XXXXX ASCII
8 Part Number E0~EC XX,XX,XX,XX,XX,
XX - Note 5, 6
XX
,XX,XX,XX,XX
Note 1. Note 2. Note 3.
Data Panel Vender Code Data V-Frequency Data Data Format
00 HDLCD(SEC) 00 50/60Hz 00 6Bit
01 Others 01 100/120HZ 01 8Bit
02 Others 02 200/240Hz 02 10Bit
03 Others
04 Others
05 Others
Note 4.
- FRC Revision Code will be Changed from "00" to "41" (A)
When FRC IC is changed. At First MP. This Code will be "00"
Note 5.
- LTY[Z]XXXXXXX Only for SEC Model
Note 6.
- Rest of them must be "00" (Null)
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 18 / 31
6.2 EEPROM Data Map
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 XX XX XX XX XX XX XX XX 00 00 00 00 00 00 00 00
1 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
2 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
3 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
4 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
5 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
7 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
8 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
9 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
A 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
B 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
C 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
D 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
E XX XX XX XX XX XX XX XX XX XX XX XX XX XX 00 00
F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 19 / 31
7. Interface Timing
7.1 Timing Parameters ( DE only mode )
SIGNAL ITEM SYMBOL MIN. TYP. MAX. Unit NOTE
Clock 1/TC 130 148.5 155 MHz -
Hsync Frequency FH 50 67.5 73 KHz -
Vsync FV 47 60 62 Hz -
Active
Display TVD - 1080 - lines -
Vertical Period
Display Term
Vertical
TVB 1100 1125 1480 Lines -
Total
Active
Display THD - 1920 - clocks -
Horizontal Period
Display Term
Horizontal
TH 2154 2200 2450 clocks -
Total
Note) This product is DE only mode. The input of Hsync & Vsync signal does
not have an effect on normal operation.
(1) Test Point : TTL control signal and CLK at LVDS Tx input terminal in system
(2) Internal VDD = 3.3V
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 20 / 31
7.2 Timing diagrams of interface signal ( DE only mode )
TV
TVD TVB
DE
TH
THD
DE
DCLK
TC
DATA
SIGNALS
TC
TCH TCL
DCLK 0.5
VCC
TDS TDH
DISPLAY 0.5
DATA
VCC
TES
DE 0.5
VCC
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 21 / 31
7.3 Power ON/OFF Sequence
To prevent a latch-up or DC operation of the LCD Module, the power on/off
sequence should be as the diagram below.
[UNIT : mS]
Min Max Min Max
T1 0.47 30 T8 30 -
T2 0 100 T9 500 -
T3 0 100 T10 50 -
T4 0.1 50 T11 100 -
T5 220 350 T12 0 50
T6 0 30 T13 0 300
T7 0 30 T14 1000 -
The supply voltage of the external system for the Module input should be the same
as the definition of VDD.
Apply the lamp voltage within the LCD operation range. When the back light turns on
before the LCD operation or the LCD turns off before the back light turns off,
the display may momentarily show abnormal screen.
In case of VDD = off level,
please keep the level of input signals low or keep a high impedance.
T14 should be measured after the Module has been fully discharged between power off
and on period.
Interface signal should not be kept at high impedance when the power is on.
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 22 / 31
8. Outline dimension (Front view)
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 23 / 31
Outline dimension (Rear View)
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 24 / 31
9. EMI Specification
: -3dB at CISPR22 Class B
This EMI Recommendation is recommended to be measured as SET Condition.
10. UL Approval
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 25 / 31
11. Reliability Test
Item Test condition Quantity
Temperature
0 50 ,10Cycle determination 4EA
Step Stress
HTOL 50 , 1000hr (500hr determination) 8EA
LTOL 0 , 1000hr (500hr determination) 4EA
RTOL 20 , continue ~ 4EA
HTS 70 , 1000hr (500hr determination) 4EA
LTS -30 ,1000hr (500hr determination) 4EA
THB 40 / 95%RH,1000hr (500hr determination) 4EA
WHTS 60 / 75%RH, 1000hr (500hr determination) 4EA
T/C -20 ~ 60 , 200cycle (100cycle determination) 4EA
ESD
10 kV,200 /100 ,9Point,3times/Point 3EA
(non-operation)
contact : 8 kV ,150 /330 ,210Point,1 time/Point
ESD(operation) 3EA
non-contact : 15 kV,150 /330 ,100Point,1 time/Point
Input Con. ESD contact : 2kV,200 /100,Input Con.Pin,3 times/Pin 3EA
POWER
30sec (on) / 30sec(off) : 12,000 times 4EA
ON/OFF
Vibration 10~300Hz/1.5G/10minSR, XYZ, 30min/axis 3EA
Shock Condition : 11msec, XY/axis 40G & Z 1time/axis 30G 3EA
PALLET
1.05 Grms, 2~200Hz, Random, Z axis 1Hr 1PALLET(18EA)
Vibration
PALLET Drop 20cm, Bottom, Front, Rear 1times 1PALLET(18EA)
[ Result Evaluation Criteria]
Under the display quality test conditions with normal operation state, these shall
be no change which may affect practical display function.
HTOL/ LTOL : High/Low Temperature Operating Life,
THB : Temperature Humidity Bias
HTS/LTS : High/Low Temperature Storage
WHTS : Wet High Temperature Storage
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 26 / 31
12. PACKING
12.1 CARTON (Internal Package)
(1) Packing Form
Corrugated fiberboard box and corrugated cardboard as shock absorber
(2) Packing Method
Packing Pallet Box
Module (18EA)
Cushion Set
Direction be able to Open
Pallet
8.2 Packing Specification
Item Specification Remark
1. 173.7Kg/LCD(18ea)
2. 9.4kg/Cushion Set(2ea)
LCD Packing 18 ea / (Packing-
3. 6.7kg/Packing-Pallet Box(1ea)
Pallet Box)
4. Cushion Material : EPS
5. Packing Pallet Box Material : DW4
Desiccant (Drier) 3ea/LCD 10g/ea, Cobalt-dichloride-free
Pallet weight : 9kg
Pallet 1 Box / Pallet
(PE, W1270, L1150, H125, BLUE)
Packing Direction Vertical -
Total Pallet Size H x V x height 1270mm(H) x 1150mm(V) x 853mm(Height)
Pallet(9kg) + Module( 9.65 x 18 = 173.7kg) +
Total Pallet Weight 199.16kg Cushion(9.4kg) + Pallet-BOX(6.7kg) +
Desiccant(0.03kg x 12 = 0.36kg)
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 27 / 31
14. General Precautions
14.1 Handling
(a) When the Module is assembled, it should be attached to the system firmly
using all mounting holes. Be careful not to twist and bend the Module.
(b) Because the inverter use high voltage, it should be disconnected from power
before it is assembled or disassembled.
(c) Refrain from strong mechanical shock and / or any force to the Module.
In addition to damage, this may cause improper operation or damage to the Module
and LED back light.
(d) Note that polarizers are very fragile and could be damage easily.
Do not press or scratch the surface harder than a HB pencil lead.
(e) Wipe off water droplets or oil immediately. If you leave the droplets for a long
time, staining or discoloration may occur.
(f) If the surface of the polarizer is dirty, clean it using absorbent cotton or soft cloth.
(g) Desirable cleaners are water, IPA(Isopropyl Alcohol) or Hexane.
Do not use Ketone type materials(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid
or Methyl chloride. It might permanent damage to the polarizer due to chemical
reaction.
(h) If the liquid crystal material leaks from the panel, it should be kept away
from the eyes or mouth . In case of contact with hands, legs or clothes, it must
be washed away with soap thoroughly.
(i) Protect the Module from static, or the CMOS Gate Array IC would be damaged.
(j) Use finger-stalls with soft gloves in order to keep display clean during the
incoming inspection and assembly process.
(k) Do not disassemble the Module.
(l) Do not pull or fold the LED FFC.
(m) Do not adjust the variable resistor located on the Module.
(n) Protection film for polarizer on the Module should be slowly peeled off just before use
so that the electrostatic charge can be minimized.
(o) Pins of I/F connector should not be touched directly with bare hands.
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 29 / 31
14.2 Storage
(a) Do not leave the Module in high temperature, and high humidity for a long time.
It is highly recommended to store the Module with temperature from 0 to 35
and relative humidity of less than 70%.
(b) Do not store the TFT-LCD Module in direct sunlight.
(c) The Module should be stored in a dark place. It is prohibited to apply sunlight or
fluorescent light in storing.
14.3 Operation
(a) No Connection or disconnect the Module in the "Power On" condition.
(b) Power supply should always be turned on/off by the "Power on/off sequence"
(c) Module has high frequency circuits. Sufficient suppression to the electromagnetic
interference should be done by system manufacturers. Grounding and shielding methods
may be important to minimize the interference.
(d) The cable between the back light connector and its power supply should be connected
directly with a minimized length. A longer cable between the back light and power supply
may cause lower luminance of LED and may require higher startup voltage(Vs).
14.4 Operation Condition Guide
(a) The LCD product should be operated under normal conditions.
Normal condition is defined as below;
- Temperature : 20 15
- Humidity : 55 20%
- Display pattern : continually changing pattern (Not stationary)
(b) If the product will be used in extreme conditions such as high temperature,
humidity, display patterns or operation time etc.., It is strongly recommended
to contact SEC for Application engineering advice. Otherwise, its reliability and
function may not be guaranteed. Extreme conditions are commonly found at
Airports, Transit Stations, Banks, Stock market, and Controlling systems.
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 30 / 31
14.5 Others
(a) Ultra-violet ray filter is necessary for outdoor operation.
(b) Avoid condensation of water. It may result in improper operation or disconnection
of electrode.
(c) Do not exceed the absolute maximum rating value. ( supply voltage variation,
input voltage variation, variation in part contents and environmental temperature,
and so on)
Otherwise the Module may be damaged.
(d) If the Module keeps displaying the same pattern for a long period of time,
the image may be "sticked" to the screen.
To avoid image sticking, it is recommended to use a screen saver.
(e) This Module has its circuitry PCB's on the rear side and should be handled
carefully in order not to be stressed.
(f) Please contact SEC in advance when you display the same pattern for a long time.
MODEL LTY[Z]460HM03 Doc. No 05-000-S-100416 Page 31 / 31
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
