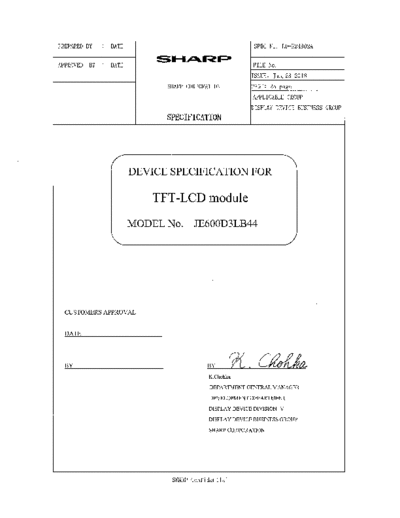

Image preview - the first page of the document



>> Download Panel_SHARP_JE600D3LB44_0_[DS] documenatation <<

Text preview - extract from the document

                       RECORDS OF REVISION
JE600D3LB44
SPEC No.        DATE       REVISED                            SUMMARY                         NOTE
                             No.     PAGE
LD-K24802     2012.08.06      -        -                            -                        1st ISSUE
              2013.01.28      A        2    Symbol of    input terminal is chenged           2nd ISSUE
                                       8    Symbol of Backlight terminal is chenged
                                       8    [Operation condition]commnent is changed
                                       9    [Note3]commnent is changed
                                      12    Item of   LED driving for backlight is changed
                                      12    [Note2]commnent is changed




                                     SHARP Confidential
                                                                                                       LD-K24802A-1
1. Application
This specification applies to the color 60.0" TFT-LCD module JE600D3LB44.

* These specifications are proprietary products of SHARP CORPORATION ("SHARP") and include materials
protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or
by any means, electronic or mechanical, for any purpose, in whole or in part, without the express written
permission of SHARP.

* In case of using the device for applications such as control and safety equipment for transportation (aircraft, trains,
automobiles, etc.), rescue and security equipment and various safety related equipment which require higher
reliability and safety, take into consideration that appropriate measures such as fail-safe functions and redundant
system design should be taken.

* Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
life support.

* SHARP assumes no responsibility for any damage resulting from the use of the device that does not comply with
the instructions and the precautions specified in these specification.

* Contact and consult with a SHARP sales representative for any questions about this device.

2. Overview
  This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It
is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit and back light system etc.
Graphics and texts can be displayed on a 1920
