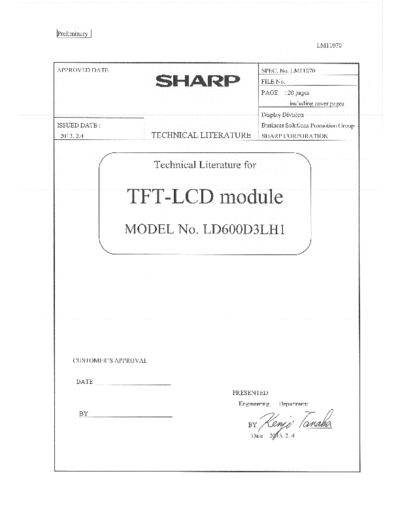

Image preview - the first page of the document



>> Download Panel_SHARP_LD600D3LH1_0_[DS] documenatation <<

Text preview - extract from the document

Preliminary
                                                                    LM11070
RECORDS OF REVISION
    MODEL NO. LD600D3LH1


    SPEC No.    DATE         REVISED          SUMMARY                NOTE
                             No.       PAGE
      LM11070     2013.2.4             20     Preliminary version
                                                                                                         LM11070-1


1.     Application
       This specification applies to the color 60.0" TFT-LCD module LD600D3LH1.


*This document are the proprietary product of SHARP CORPORATION ("SHARP") and include materials
     protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form
     or by any means, electronic or mechanical, for any purpose, in whole or in part, without the express written
     permission of SHARP.


*The device listed in this document was designed and manufactured for use in information display.


*In case of using the device for applications such as control and safety equipment for transportation(aircraft, trains,
     automobiles, etc. ), rescue and security equipment and various safety related equipment which require higher
     reliability and safety, take into consideration that appropriate measures such as fail-safe functions and
     redundant system design should be taken.


*Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
     telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment
     for life support.


*SHARP assumes no responsibility for any damage resulting from the use of the device which does not comply
     with the instructions and the precautions specified in this document.


*Contact and consult with a SHARP sales representative for any questions about this device.

*SHARP takes no responsibility for any problems related to any intellectual property right of a third party
  resulting from the use of products.




2.     Overview
 This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor).
It is composed of a color TFT-LCD panel, driver ICs, control circuit and LED back light system etc. Graphics and
texts can be displayed on a 1920
