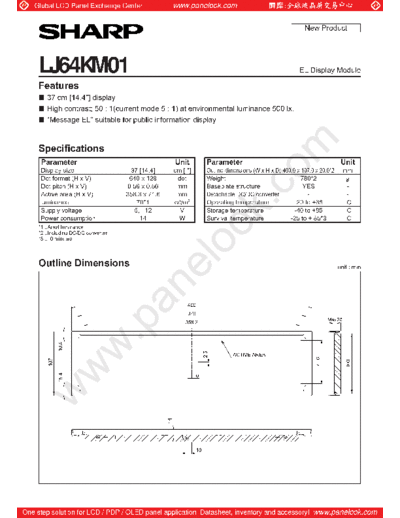

Image preview - the first page of the document
![Panel_SHARP_LJ64KM01_0_[DS]](/pics/5eb0758701da0.gif)
>> Download Panel_SHARP_LJ64KM01_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
New Product
LJ64KM01 EL Display Module
Features
37 cm [14.4"] display
High contrast; 50 : 1(current mode 5 : 1) at environmental luminance 500 lx.
"Message EL" suitable for public information display
Specifications
Parameter Unit Parameter Unit
Display size 37 [14.4] cm [ "] Outline dimensions (W x H x D) 400.0 x 107.0 x 20.0*2 mm
Dot format (H x V) 640 x 128 dot Weight 780*2 g
Dot pitch (H x V) 0.56 x 0.56 mm Baseplate structure YES -
Active area (H x V) 358.3 x 71.6 mm Detachable DC/DC converter - -
Luminance 70*1 cd/m2 Operating temperature -20 to +65 C
Supply voltage 5, 12 V Storage temperature -40 to +85 C
Power consumption 14 W Survival temperature -25 to + 85*3 C
*1...Areal luminance
*2...Including DC/DC converter
*3...10 minutes
Outline Dimensions unit : mm
400
379
358.3 Max20
10.4
2.5
ACTIVE AREA
71.6
107
100
15.4
0
14
10
