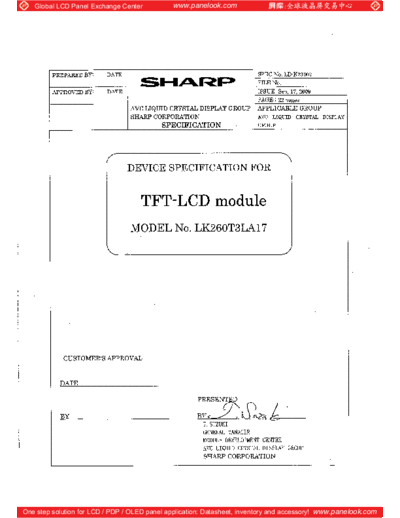

Image preview - the first page of the document



>> Download Panel_SHARP_LK260T3LA17_0_[DS] documenatation <<

Text preview - extract from the document

   Global LCD Panel Exchange Center           www.panelook.com




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center            www.panelook.com




                                RECORDS OF REVISION
         MODEL No. : LK260T3LA17
         SPEC No. : LD-K21907


                              REVISED
        DATE         NO.                PAGE                  SUMMARY                        NOTE
                                No.
      2009.9.17 LD-K21907        -       -                        -                        1st Issue




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                      www.panelook.com

                                                                                                                 LD-K21907-1

         1. Application
             This specification applies to the color 26.0" Wide XGA TFT-LCD module LK260T3LA17.

         * These specification sheets are proprietary products of SHARP CORPORATION ("SHARP") and include materials
         protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or by
         any means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of
         SHARP.

         * In case of using the device for applications such as control and safety equipment for transportation (aircraft, trains,
            automobiles, etc.), rescue and security equipment and various safety related equipment which require higher
            reliability and safety, take into consideration that appropriate measures such as fail-safe functions and redundant
            system design should be taken.

         * Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
           telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
           life support.

         * SHARP assumes no responsibility for any damage resulting from the use of the device that does not comply with
            the instructions and the precautions specified in these specification sheets.

         * Contact and consult with a SHARP sales representative for any questions about this device.

         2. Overview
           This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is
         composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit, inverter circuit and back light
         system etc. Graphics and texts can be displayed on a 1366
