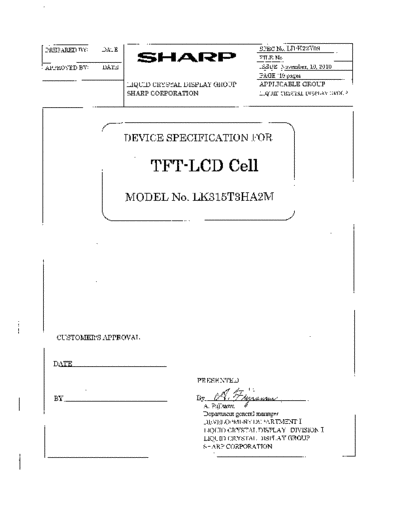

Image preview - the first page of the document



>> Download Panel_SHARP_LK315T3HA2M_0_[DS] documenatation <<

Text preview - extract from the document

                         RECORDS OF REVISION
  MODEL No. : LK315T3HA2M
  SPEC No. : LD-K22Y09
                       REVISED
  DATE       NO.                 PAGE   SUMMARY    NOTE
                         No.
2010.11.10 LD-K22Y09      -       -        -      1st Issue
                                                                                                       LD-K22Y09-1
1. Application
  This technical literature applies to the color 31.5" TFT-LCD Open-Cell (LK315T3HA2M).

* This technical literature is proprietary product of SHARP CORPORATION ("SHARP") and includes materials
protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or by
any means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of
SHARP.

* In case of using the device for applications such as control and safety equipment for transportation (aircraft, trains,
   automobiles, etc.), rescue and security equipment and various safety related equipment which require higher
   reliability and safety, take into consideration that appropriate measures such as fail-safe functions and redundant
   system design should be taken.

* Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
  telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
  life support.

* SHARP assumes no responsibility for any damage resulting from the use of the device that does not comply with
   the instructions and the precautions specified in this technical literature.

* Contact and consult with a SHARP sales representative for any questions about this device.



2. Overview
  This Open-Cell is a color active matrix LCD panel incorporating amorphous silicon TFT (Thin Film Transistor). It
is composed of a color TFT-LCD panel, driver ICs, Source-Control and Source-PWB.
Graphics and texts can be displayed on a 1366
